Mirror ball motor for mirror balls up to 100 cm diameter
EUROLITE MD-3010 Safety Rotary Motor

Name: EUROLITE MD-3010 Safety Rotary Motor
Brand: EUROLITE
SKU: 50301510
Price: 139.00 EUR
Availability: InStock

Mirror ball motor for mirror balls up to 100 cm diameter-MainBild

Mirror ball motor for mirror balls up to 100 cm diameter-Bild-1

Mirror ball motor for mirror balls up to 100 cm diameter

EUROLITE MD-3010 Safety Rotary Motor

Stock for approx. 12 wk(s)

139,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 50301510

Print product

Product badge

Here you find the manual and downloads for
EUROLITE MD-3010 Safety Rotary Motor

This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball.
The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.
All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events.

Features

Mirror ball motor for mirror balls up to 100 cm diameter

The maximum load always means the mirror ball weight including chains and the fixation material
2 chains and 4 quick links must be ordered separately
1 rotation per minute
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Control via plug and play
Suitable for a mirror ball with a diameter of up to 100 cm
LGA tested
For application areas such as: Clubs/dancing school

Package contents

1 x motor, 1 x user manual

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	7 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 0,75 mm² H05VV-F
Cable length:	Approx. 0,9 m
Speed:	1 RPM , 360 °
Control:	Plug and play
Maximum load:	40 kg
Max. mirror ball diameter:	100 cm (EUROLITE)
Housing color:	Black matte
Diameter mounting holes:	2 x Ø12mm; 4 x Ø7mm; 10 x Ø6mm
Material:	Metal, 3 mm
Dimensions:	Length: 28,5 cm Width: 23,5 cm Height: 18,5 cm
Weight:	5,60 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397425550	5,90 kg	29cm x 26cm x 22cm
4	4026397425567	24,05 kg	54cm x 32cm x 47cm

Accessories

Loading accessories. Please wait...

Support

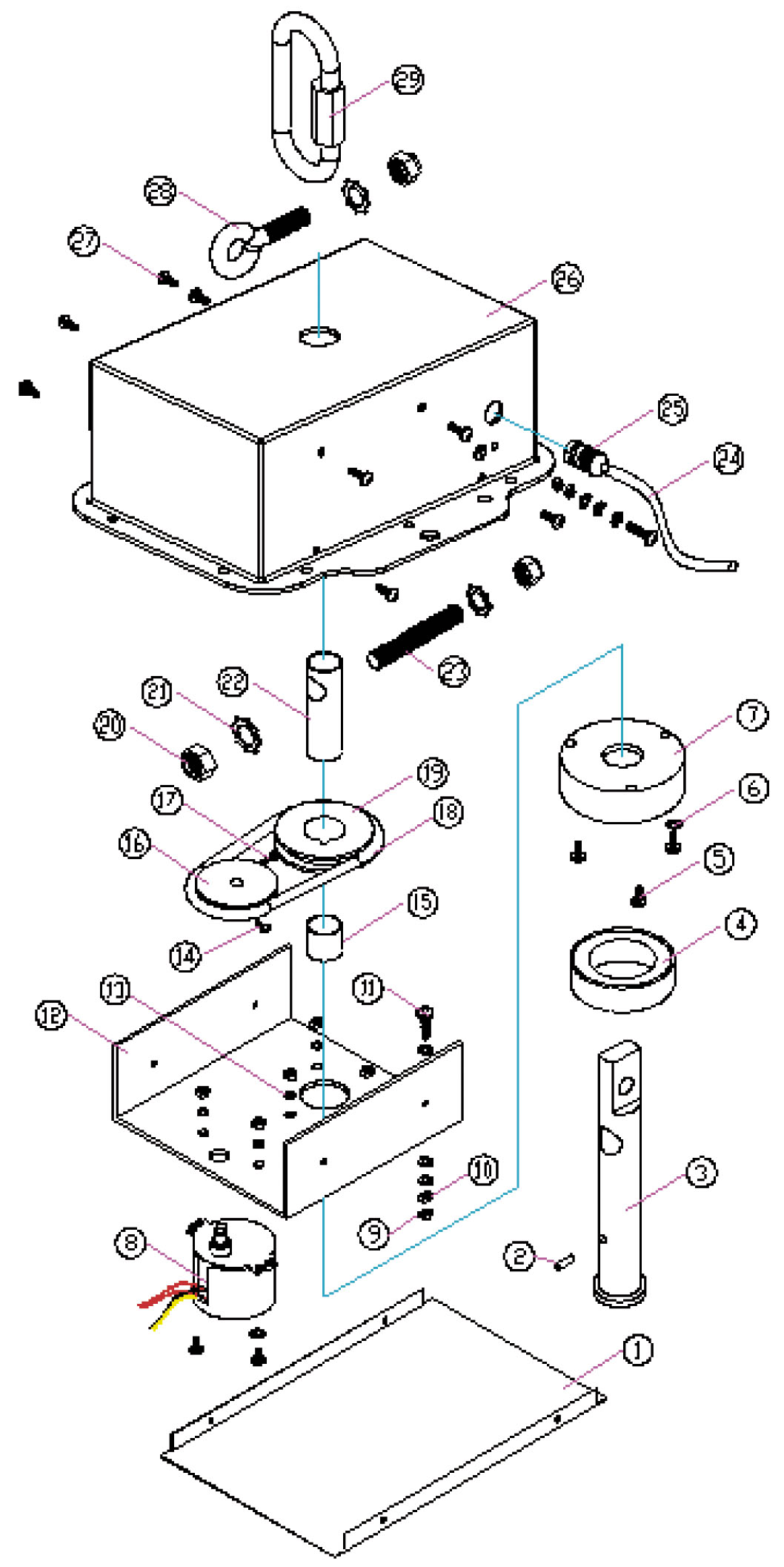

Spare parts

EUROLITE Driving-belt MD-3010

EUROLITE Motor 230V/ 1,2rpm/50-60Hz/6W for MD-3010

EUROLITE Capacitor 0,13µF 400V

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
