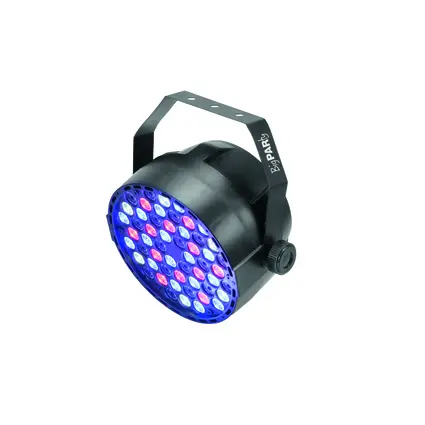

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control
EUROLITE LED Big PARty Spot

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control-MainBild

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control-Bild-1

12°

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control

EUROLITE LED Big PARty Spot

The article is no longer in our assortment.

No. 42110195

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED Big PARty Spot

Big performer

Great effects for great parties: This LED spot by Eurolite is equipped with a total of 54(!) LEDs creating amazing light effects.

Strong LEDs in bright colors

High-performance LEDs in the colors red, green, blue and white illuminate the room in any color combination of your choice. By choosing the stand-alone mode, you let the Big PARty run the show itself by adjusting the colors and fade speed to the rhythm of the music through the built-in microphone. Alternatively, you can use a DMX controller to control the spot manually.

Highly flexible

Thanks to the mounting bracket, you can mount the Big PARty almost everywhere. The installation is so easy that even beginners can do it. Impress your audience with a vibrant color mixture, dimmer and strobe effects or static colors. This spot is perfectly suited for every occasion!

Features

Spotlight with 54 x 1 W LED in R, G, B, W and DMX control

Equipped with 54 bright 1 W LEDs (12 x R, 18 x G, 18 x B and 6 x W)
Built-in color change programs, strobe effect, pulse effect and dimmer
Direct selection for 18 static preset color combinations
Manual setting of mixed colors
Addressing via control panel with 4-digit LED display
Ideal for party rooms and household use
Locking possibility at the bracket
Ready for connection via power cord with Euro plug
Switch-mode power supply for operation between 100 and 240 volts
54 powerful LEDs 1 W high-power R/G/B/W
Strobe effect
Control via stand-alone; DMX; sound to light via microphone; master/slave function
Preprogrammed in LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Flicker-free
With a beam angle of 12°

Package contents

1 x spotlight, 1 x user manual

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	60 W
IP classification:	IP20
Power connection:	Power supply cord with Euro plug
Lamp type:	LED lamp
LED type:	54 x 1 W high-power R/G/B/W
DMX channels:	6
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function
Preprogrammed in:	LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Projection:	Flicker-free
Beam angle:	12°
Beam angle (1/2 peak):	12°
Beam angle (1/10 peak):	24°
Housing color:	Black
Dimensions:	Width: 25 cm Depth: 13 cm Height: 24,5 cm
Weight:	1,07 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397585599	1,31 kg	21cm x 21cm x 17,1cm
12	4026397585605	17,05 kg	66cm x 44cm x 36cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

LED 1W red LED Par-64 36x1W

LED 1W green LED Par-64 36x1W

LED 1W blue LED Par-64 36x1W

More 1 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
