Perfect for ACL-bars

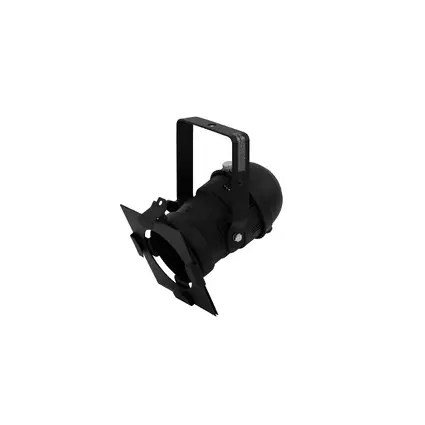

EUROLITE PAR-36 Spot Short bk

filter frame 10,4 cm

The article is no longer in our assortment.

No. 42103300

Features

Perfect for ACL-bars

Rugged aluminum housing
Strong aluminum mounting bracket
Heat-resistant fixing screw for "bombproof" fixing
The screw is protected against turning it too far out
4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
Safety grille (splinter protection) is integrated in the tube
Internally blackened tube for precise light output
Strong extension spring for safe hold and for quick opening of the rear housing cover
Protection grille on the rear housing cover - complies with CE-regulations
Delivery uncabled
When 28 Volt lamps are used, the electric connection must be carried out by a qualified electrician!
When 250 Watt lamps are used, the electric connection must be carried out with a silicone cable!
Delivered with color filter frame
With strong cable tension relief
For PAR 36

Package contents

Technical specifications

Power supply:	28V AC
Power consumption:	250 W
IP classification:	IP20
Suitable lamp:	Max. 28 V/250 W PAR-36
Power connection:	Mains input via screw terminal
Lamp type:	Selectable
Color generation:	Via color filter frame
Housing color:	Black
Dimensions:	Length: 22 cm Width: 16,2 cm Height: 16,2 cm
Weight:	0,74 kg
Filter frame
Dimensions:	Length: 15,7 cm Width: 15,7 cm Diameter: Ø 10,4 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397411157	0,88 kg	15,5cm x 17cm x 29cm
12	4026397411164	11,40 kg	49cm x 33,5cm x 60cm
