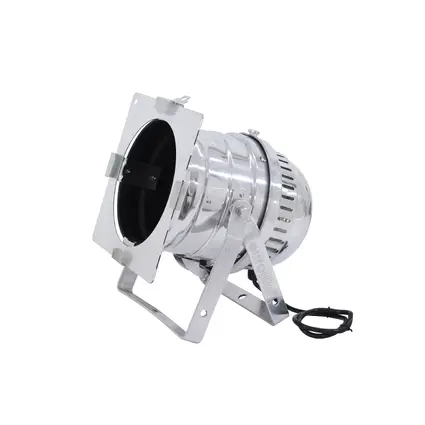

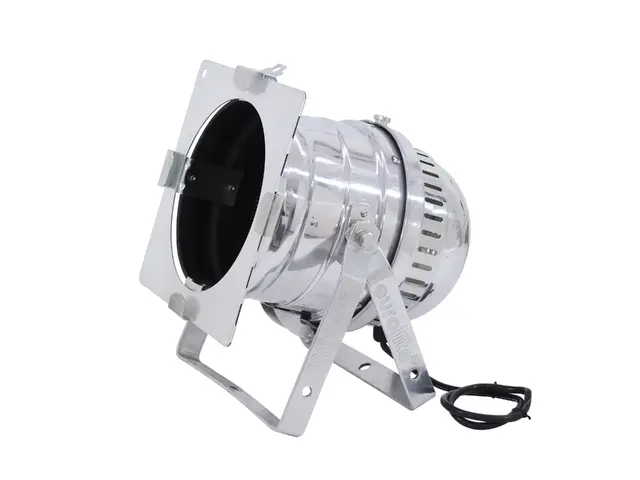

Short PAR-64 housing (double bracket) with open cable ends
EUROLITE PAR-64 Spot Floor with cable sil

svg
filter frame 20,3 cm
svg
EUROLITE

Short PAR-64 housing (double bracket) with open cable ends

EUROLITE PAR-64 Spot Floor with cable sil

Features

Short PAR-64 housing (double bracket) with open cable ends

  • Rugged metal housing
  • Heat-resistant fixing screw
  • The screw is protected against turning it too far out
  • 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
  • Safety grille (splinter protection) is integrated in the tube
  • Blackened tube for precise light output
  • Strong brass clamps with extension spring for safe hold and for quick opening of the rear housing cover
  • Strong cable tension relief
  • With mounting bracket
  • For PAR 64

Package contents

  • 1 x spotlight, 1 x filter frame, 1 x lamp clamping ring, 1 x user manual
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:1000 W
IP classification:IP20
Protection class:Protection class I
Power connection:Fixed supply cord with open wires
Cable length:Approx. 0,7 m
Base:GX16d
Lamp type:Selectable
Color generation:Via color filter frame (optional)
Housing color:Silver
Attachment system:Mounting bracket
Dimensions:Length: 34 cm
Width: 27 cm
Height: 27 cm
Weight:1,60 kg
Filter frame
Dimensions:Length: 25,5 cm
Width: 25,5 cm
Diameter: Ø 20,3 cm
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263971319181,92 kg36cm x 23cm x 23cm
6402639713192512,55 kg71cm x 48cm x 37cm
Accessories
