Weather-proof blinder with pixel control and atmo cluster
EUROLITE LED IP Atmo Blinder 9

Weather-proof blinder with pixel control and atmo cluster-MainBild

Weather-proof blinder with pixel control and atmo cluster-Bild-1

svg

svg

svg

svg

20°

svg

svg

svg

svg

svg

svg

svg

svg

svg

EUROLITE

Weather-proof blinder with pixel control and atmo cluster

EUROLITE LED IP Atmo Blinder 9

delivery date unknown

1.099,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 41606430

Here you find the manual and downloads for
EUROLITE LED IP Atmo Blinder 9

EUROLITE LED KLS Laser Bar Next FX-Lichtset Titelbild

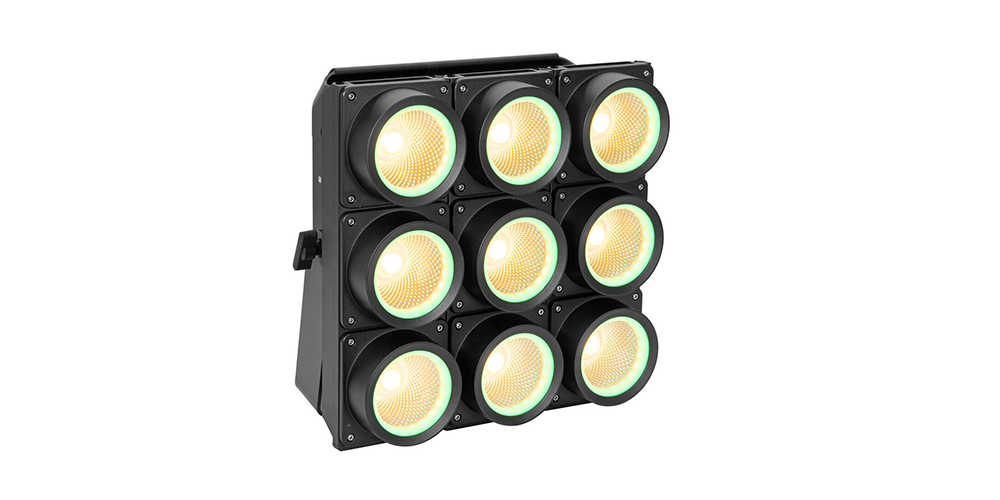

Atmo Blinder 9 from Eurolite:

3 x 3 Blinder with pixel control and RGB illuminated reflector

The LED IP Atmo Blinder 9 from Eurolite is a cluster of 3 x 3 powerful WW/CW LEDs, each of which sits in a reflector. Each of these reflectors can be additionally illuminated with RGB LEDs. In addition, at the edge of each reflector sits a ring of milky RGB LEDs, which can also be controlled individually.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Frontansicht

Eye-catching effect

Thanks to this equipment, the Atmo Blinder 9 can be used in different ways: Of course, it meets the requirements of a classic, white-emitting blinder. But it can also be used as an eye-catching, colorful pixel effect in the stage background or as a soft, atmospheric light.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Effektbild

Control

Since each LED can be controlled individually, the Atmo Blinder 9 can be controlled via DMX as well as via ArtNet. For larger installations with pixel effects, we recommend using MADRIX for control.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Ansteuerung

Robust and weatherproof

The IP Atmo Blinder 9 has a robust housing, which makes it suitable for touring as well as outdoor use. The Blinder is best suited for festival and concert stages.

Features

Weather-proof blinder with pixel control and atmo cluster

360 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
18 segments controlled separately
Variable color temperature 1800 K - 6000 K
9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
LEDs controlled separately
Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
One RGB LED segment is directed towards the front, one towards the reflector
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
15 integrated show programs
Strobe effect
With a beam angle of 20°
Control via stand-alone; DMX; ArtNet; RDM; master/slave function
Multicolor LCD display
Flicker-free
With Mounting bracket; with omega bracket
The device is cooled by low-noise cooling fan
Preprogrammed in Light Captain
Mains input and output for power linking up to 4 units
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Mobile use; Stage; Rental
Very quiet working noise
Application possibility: Suspended; on stand

Package contents

1 x spotlight, 1 x user manual, 1 x power cord, 1 x XLR cable, 2 x omega bracket

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	330 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	360 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) 9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
DMX channels:	13; 18; 72; 85

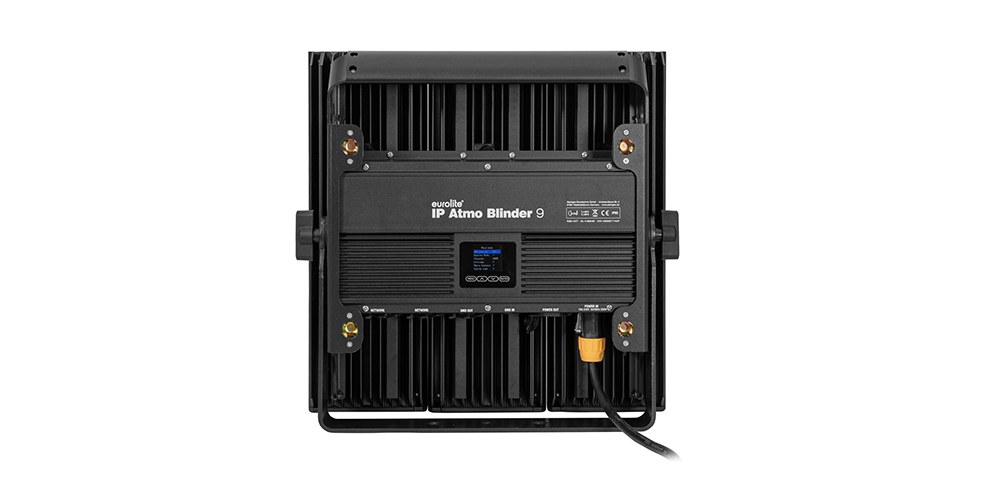

DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Low-noise cooling fan
Control:	Stand-alone; DMX; ArtNet; RDM; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
Beam angle:	20°
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	58°
Color temperature:	1800K - 6000K adjustable
Housing color:	Black
Attachment system:	Mounting bracket 2x omega bracket
Display type:	Multicolor LCD display
Connections:	2 x RJ-45 (F) mounting version
Dimensions:	Width: 37,7 cm Depth: 20,5 cm Height: 38,4 cm
Weight:	13,65 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397714487	15,00 kg	50cm x 47cm x 28cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

E6529818

Seal LED IP Atmo Blinder 9

E6511624

Schraube M4x12 Zylinderkopf Sechskant HEX 3mm

E6511628

Housing part (top/bottom with seal) LED IP Atmo Blinder 9

More 6 spare parts
