Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	115 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	1.45 m
Power output:	1 x P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	25 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
DMX channels:	4; 10; 15; 100; 102
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Network connection:	Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:	Temperature-controlled fan
Control:	DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Fixtures available for:	Light Captain
Projection:	Flicker-free
DMX fail mode:	Hold; blackout
Beam angle:	45°
Beam angle (1/2 peak):	45°
Beam angle (1/10 peak):	82°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Multicolor LCD display
USB port:	Type A
Diameter mounting holes:	3 x Ø10mm
Material:	Metal
Dimensions:	Width: 45.0 cm Depth: 10.6 cm Height: 45.0 cm
Weight:	9.00 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397731873	10,40 kg	52,5cm x 52,5cm x 17,5cm
2	4026397742381	22,45 kg	54,5cm x 54,5cm x 40cm

Spare parts

LED 5050 12W RGB/WW LED Pixel Matrix Panel 5x5 (JX-SPEC-4IN1-0012)

Pcb (Display/Control) LED Pixel Matrix Panel 5x5 RGB/WW

Pcb (LED) LED Pixel Matrix Panel 5x5 RGB/WW

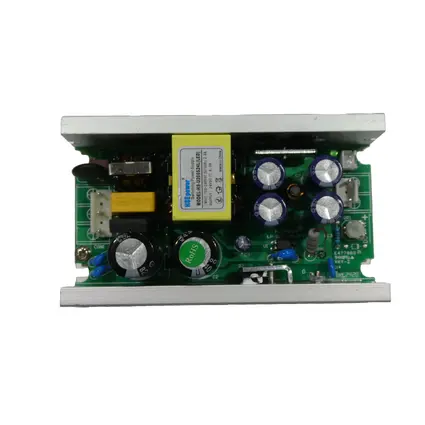

Pcb (Power Supply) 24V/6A LED Pixel Matrix Panel 5x5 RGB/WW (H17-UP140S-24E)

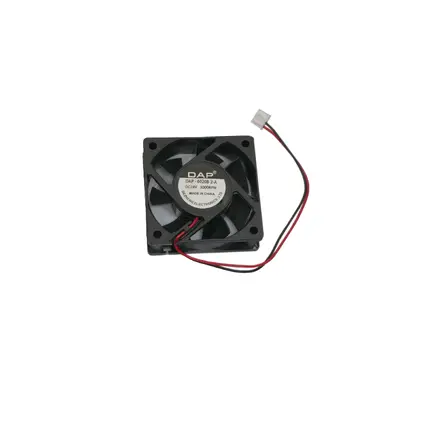

Fan 24V/0,1A 60x60x15 LED Pixel Matrix Panel 5x5 RGB/WW

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
41606350-Dimensions-162629-1.0000-41606350dimensionspdf-de.pdf (53 KB)	1.0000	de

All images

Name	Version	Language
41606350-Images-.zip

Publications

Move Magazine #1/2025 E

On page: 20

Size: 22 MB

Video link

https://www.youtube-nocookie.com/embed/2SUaggjcfiw

EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW

Name: EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW
Uploaded: 2022-01-01
Description: Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers

Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers-MainBild

Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers-Bild-1

EUROLITE LED Pixel Matrix Panel 5x5 RGB/WW

Stock for approx. 12 wk(s)

499,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 41606350

45°

Matrix spotlight with RGB/WW LEDs, Pixel control & macros for sequences, letters and numbers

Create sensational light effect surfaces by connecting several devices
25 LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
LEDs controlled separately
Color change; color fade; color animations with two adjustable colors; Dimmer electronic
Blinder effect; matrix effect; strobe effect
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via DMX; stand-alone; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; sound to light; master/slave function
Fixtures available for Light Captain
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 45°
With mounting bracket
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental
Very quiet working noise
Application possibility: Standing; suspended; on stand
