LED spot in Multi Lens design with powerful white LED

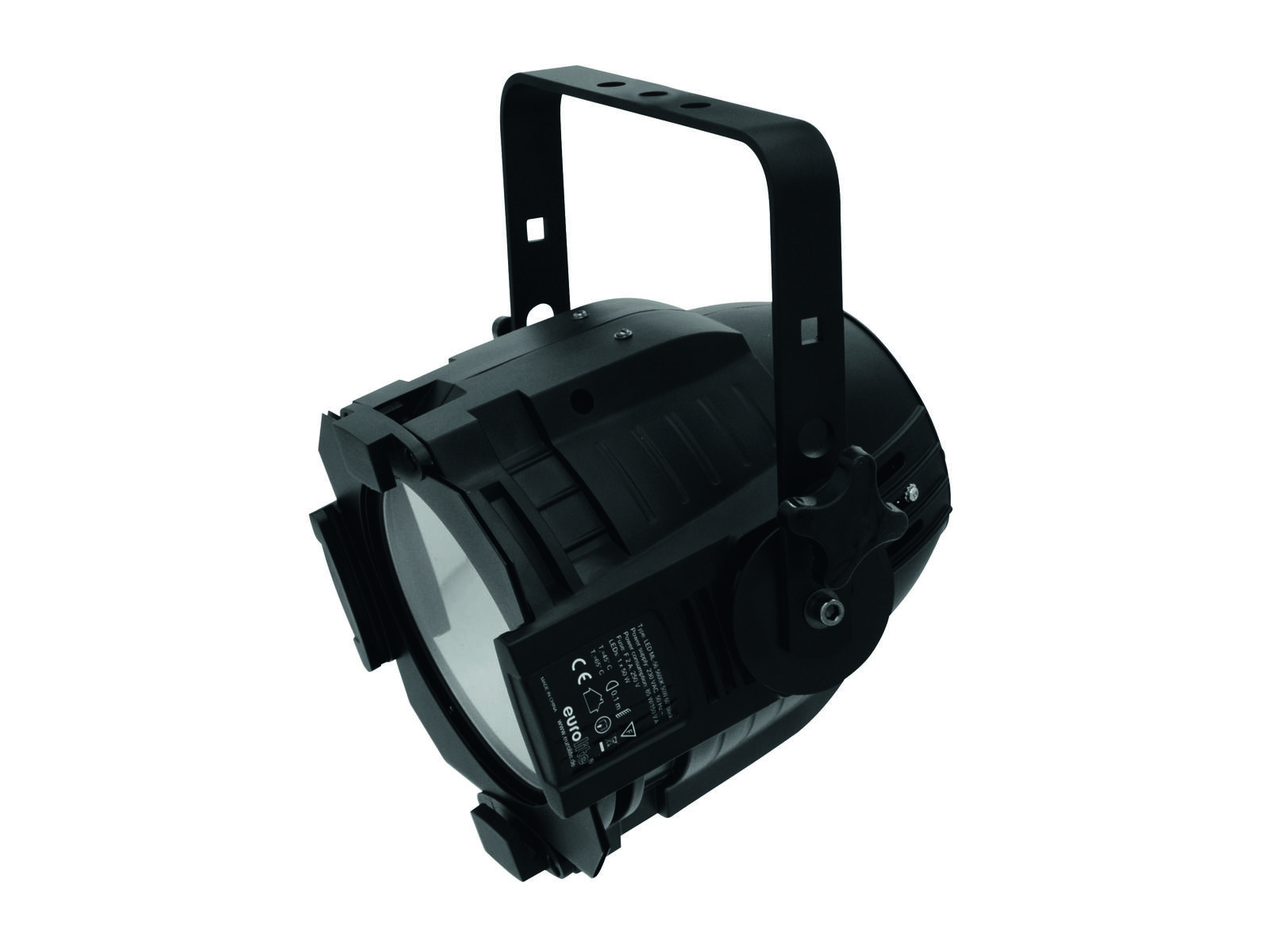

EUROLITE LED ML-56 COB 3200K 100W 60° bk

The article is no longer in our assortment.

No. 41604021

Features

LED spot in Multi Lens design with powerful white LED

Equipped with one 100 W COB LED
Functions: dimmer, strobe effect, Master/Slave operation
Operable in stand-alone mode or via DMX
1 or 3 DMX channels selectable for numerous applications
Beam angle approximately 60°
Different dimmer curves and dimmer speed adjustable
3200 K color temperature
Mounting bracket for installations on a stand or a crossbeam
Locking possibility at the mounting bracket
Comfortable addressing and setting via Control Board with LCD display and four operating buttons
Ready for connection with power cord and safety plug
With color filter frame
Optional barndoors available
Ideal for theatres, large stages as pre-stage spot and mobile use
Available in silver or in black
Preprogrammed in Light´J
Good color rendering index (CRI)

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	120,00 W
Preprogrammed in:	Light´J
Color rendering index (CRI):	83 Ra
Dimensions:	Width: 30 cm Depth: 31 cm Height: 24 cm
DMX channels:	1/3
DMX connection:	3-pin XLR
LED type:	Array Cluster 100 W, white
LED number:	1
Color temperature:	3200 K
Beam angle:	60°
Dimensions (L x W x H):	240 x 300 x 310 mm
Weight:	4 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397508970	4,60 kg	27,5cm x 27cm x 38cm
2	4026397508987	10,10 kg	56,5cm x 30cm x 41,5cm
