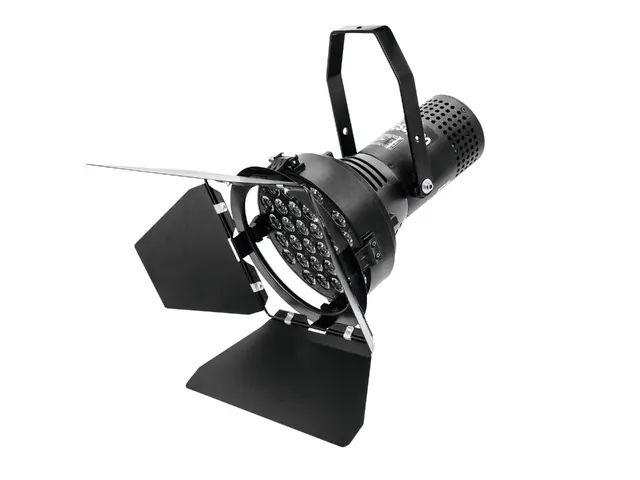

Bright, cold white spotlight, narrow beam angle and 32 x 10 W LED
EUROLITE LED CSL-320 Spotlight 6000K black

7°

The article is no longer in our assortment.

Item no. 41600500

Features

Bright, cold white spotlight, narrow beam angle and 32 x 10 W LED

Comfortable addressing and setting via control panel with LED display and four operating buttons
Functions: dimmer, strobe
Dimmer speeds (step response) adjustable via DMX
Equipped with 32 x 10 W LED
Color temperature 6000 K
Mounting bracket for installation on a stand or a crossbeam
Locking possibility at the mounting bracket
Barndoors included in delivery
Power connection via P-Con jack and included power cable with safety plug
Switch-mode power supply for operation between 100 and 240 volts
Feed-through output allows to power up to 6 devices
32 powerful LEDs 10 W high-power cold white (CW)
CREE LED installed
Control via stand-alone; DMX
Preprogrammed in LED PC-Control 512
With a beam angle of 7°

Technical specifications

Power consumption:	240 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	32 x 10 W high-power cold white (CW)
LED manufacturer:	CREE
Control:	Stand-alone; DMX
Preprogrammed in:	LED PC-Control 512
Beam angle:	7°
Beam angle (1/2 peak):	7°
Beam angle (1/10 peak):	17°
Color temperature:	6000K
Housing color:	Black
Dimensions:	Width: 23,5 cm Depth: 21 cm Height: 25 cm
Weight:	8,30 kg
Power supply:	100-240 V, 50/60 Hz
DMX channels:	3
DMX connection:	3-pol. XLR
LED type:	10 W
LED number:	32
Color temperature:	6000 K
Beam angle:	7°
Dimensions:	395 x 265 x 380 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397588989	9,00 kg	30cm x 30cm x 48cm
4	4026397588996	38,60 kg	63cm x 63cm x 49,5cm
