High-quality data cable
SOMMER CABLE DMX Cable XLR 5-pin 1.5m bk Hicon

0,70 cm

4 x 0,34

High-quality data cable

SOMMER CABLE DMX Cable XLR 5-pin 1.5m bk Hicon

The article is no longer in our assortment.

Check out the alternatives:

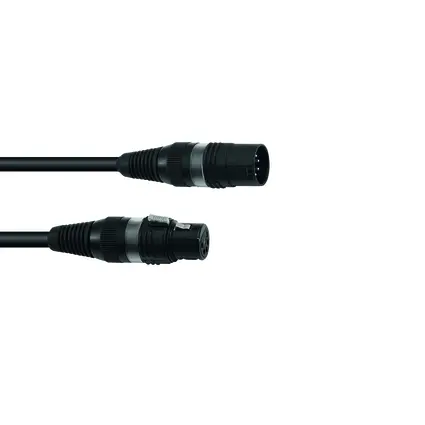

PSSO DMX Cable XLR 5-pin 1.5m bk Neutrik

Stock for approx. 12 wk(s)

29,90 €

No. 3030746J

Print product

Product badge

DMX cable by premium manufacturer Sommer Cable
These premade cables are the perfect choice for the transmission of the 110 ohms AES/EBU DMX512 data format.
Important note: the use of a standard microphone cable is not recommended due to data and information losses (caused by the skin effect). In the lighting domain data losses cause a total jam with signal transmissions or the control of scanner systems.
The very affordable price of this cable should make it easy to switch from a standard microphone cable to a proper AES/EBU cable. Our AES/EBU cable guarantees the error-free data transfer even over longer distances of up to 100 metres. We use the BINARY 434 AES/EBU MKII AES/EBU cable with 100 % shielding and the HICON XLR connectors.

Features

High-quality data cable

AES/EBU- and DMX-conformant, highly flexible
Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
Extremely robust with an especially strong jacket
Only a little more expensive than a standard microphone cable
For networking of scanners, lighting units, digital mixing boards, etc.
For connection of digital audio amplifiers, DAT-recorders, etc.
HICON
Suitable for outdoor use
Made in Germany

Technical specifications

Cable construction:	4 x 0,34 mm² DMX cable
Cable length:	1,5 m
Plug A:	1 x 5-pin XLR (M)
Plug B:	1 x 5-pin XLR (F)
Use of brands:	HICON
Color:	Black
Dimensions:	Diameter: Ø 0,70 cm
Weight:	0,18 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4049371263177	0,20 kg	20cm x 24cm x 3cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

No spare parts available.

Downloads

Loading the documents. Please wait...

Manufacturer information

Sommer cable GmbH
Humboltstraße 32-36
D-75334 Straubenhardt

info@sommercable.com
www.sommercable.com
