Safety eyelet

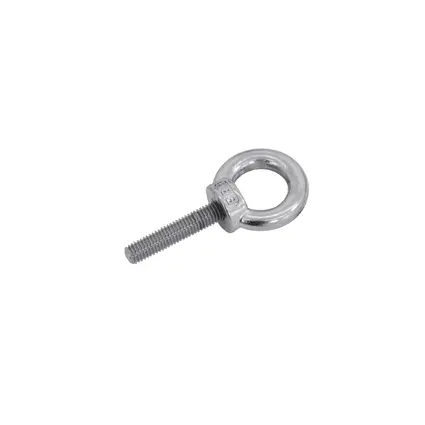

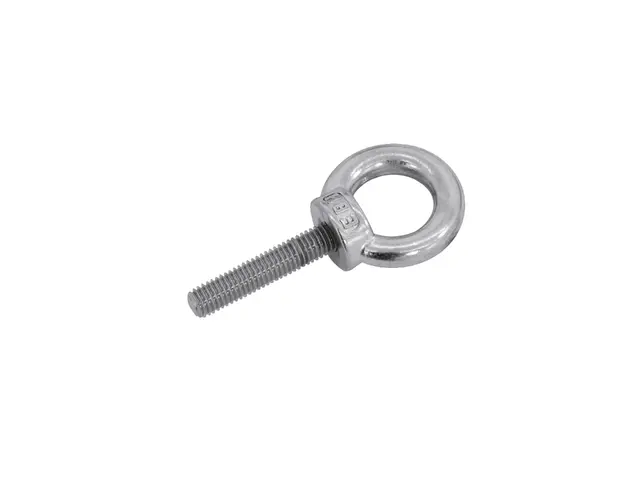

Eyebolt M8/40mm MADE IN GERMANY

Safety eyelet-MainBild
download image
Detail images (1 overall)

Safety eyelet

Eyebolt M8/40mm MADE IN GERMANY

The article is no longer in our assortment.
Check out the alternatives:
30001172
Eye Bolt M8/30mm, Stainless Steel
this alternative is identical. Other size
Stock for approx. 12 wk(s)
5,50 €
30001174
Eye Bolt M8/40mm
alternative is the successor
Stock for approx. 12 wk(s)
6,90 €
No. 30001173
Print product
Product badge
Here you find the manual and downloads for
Eyebolt M8/40mm MADE IN GERMANY
Features

Safety eyelet

  • For holding, carrying, suspending and securing
  • Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
  • Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Maximum load BGV C1 (8-fold):150 kg
Maximum load WLL (4-fold):300 kg
Material:AlSi316
Thread diameter:M8
Thread length:40 mm
Maximum load BGV C1 (12-fold):100 kg
Weight:60 g
Packaging units
PUEANWeightDimensions
140263974228940,06 kg7,5cm x 3,5cm x 2cm
10040263974511086,10 kg30cm x 20cm x 10cm
Support
Spare parts
No spare parts available.
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
