EUROLITE Set 4x AKKU IP PAR 14 HCL QuickDMX + Case

15°

27°

30°

60°

7 mm

EUROLITE Set 4x AKKU IP PAR 14 HCL QuickDMX + Case

Stock for approx. 12 wk(s)

2.899,00 €

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 20000822

Print product

Product badge

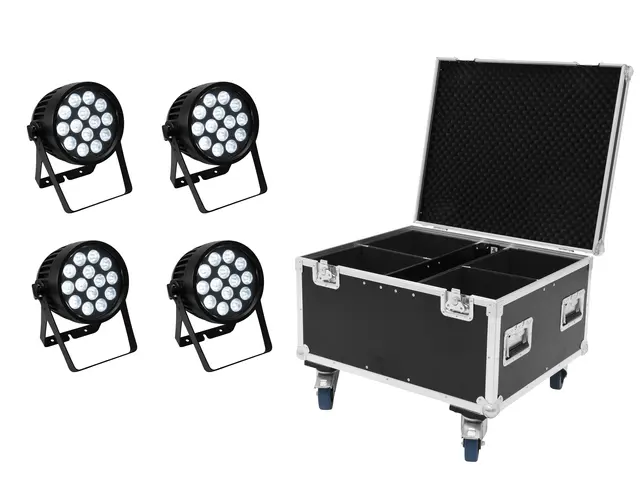

Set consisting of:

4 x EUROLITE AKKU IP PAR 14 HCL QuickDMX

1 x ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels

Features

EUROLITE AKKU IP PAR 14 HCL QuickDMX

IP65 battery-powered spotlight with RGBWA+UV LEDs, QuickDMX, frost filter and IR remote control

Integrated QuickDMX transceiver for wireless DMX control
Battery operation up to 26h depending on program used
14 powerful LEDs 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Variable color temperature 2700 K - 8000 K
Frost filter
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
Integrated show programs
Direct color selection for 27 preset colors
The device is cooled by passive convection cooling
Control via DMX; stand-alone; IR remote control; Master/slave function; QuickDMX
Flicker-free
With a beam angle of 15°
With double bracket
LCD display
Suitable for outdoor use
Preprogrammed in LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J
Mains input and output for power linking up to 8 units
Silent operation
Cordless, flexible and versatile
For application areas such as: Mobile use; Stage; Rental
Application possibility: Standing; suspended; on stand

Package contents

1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x xLR cable, 3 x frost filter, 2 x screw

ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels

Trunk case with castors, PRO version

For optimal security
With 4 Device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 castors with 2 locking brakes
4 built-in stacking trays in the cover
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	51,60 kg
EUROLITE AKKU IP PAR 14 HCL QuickDMX
Power supply:	100-240 V AC, 50/60 Hz
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Battery/battery pack built-in Via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Cable length:	Approx. 1,1 m
Power output:	IP T-Con (F) mounting version
Fuse:	5 x 20 mm, T 3 A Fuse replaceable
Battery pack type:	1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh
Battery pack:	Battery operation up to 26h depending on program used Recharging time 3h
LED type:	14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Flash rate:	0 - 20 Hz
Equipment:	Frost filter
DMX channels:	2; 3; 6-1; 6-2; 12
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; IR remote control; Master/slave function; QuickDMX
Preprogrammed in:	LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J
Projection:	Flicker-free
Carrier frequency:	2,4 GHz
Beam angle:	15°
Beam angle (1/2 peak):	15° 27° 30° 60°
Color temperature:	2700K - 8000K adjustable
Housing color:	Black
Attachment system:	Double bracket
Display type:	LCD display
Dimensions:	Width: 31,7 cm Depth: 22,7 cm Height: 37,0 cm
Weight:	7,85 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels
Maximum load:	100 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Device compartment:	27 cm x 27 cm x 28 cm
Accessory compartment:	10 cm x 56 cm x 28 cm
Inside dimensions:	65 cm x 55 cm x 30,5 cm
Dimensions:	Length: 71 cm Width: 60 cm Height: 53 cm
Weight:	20,20 kg
