Technical specifications

Weight:	72.90 kg
EUROLITE LED PAR-64 COB RGBW 120W Zoom bk
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	F 2 A
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 5; 9; 6
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function
Fixtures available for:	LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle (1/2 peak):	11 - 35°
Beam angle (1/10 peak):	15 - 48°
Housing color:	Black
Attachment system:	Mounting bracket
Dimensions:	Width: 26 cm Depth: 43.5 cm Height: 37.5 cm
Weight:	3.90 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 8x PAR-64/ML-56
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes
Material:	Plywood multi-layer glued, 9 mm
Color:	Black, laminated
Device compartment:	24 cm x 24.5 cm x 42 cm
Inside dimensions:	96 cm x 49 cm x 42 cm
Dimensions:	Width: 109 cm Depth: 57.5 cm Height: 68.5 cm
Weight:	41.70 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397126594	85,00 kg	120cm x 80cm x 120cm

Spare parts

Bracket LED PAR-64 COB 3000K 100W Zoom 265x235x30mm (1 piece) black

Pcb (Control) LED PAR-64 COB RGBW 120W Zoom (PCB0231-V1)

PCB (Display) LED PAR-64 COB RGBW 120W Zoom (PCB0167-V1-506)

Fan 24V/0,1A 92x92x25mm (HD9225B24M)

LED COB 120W RGBW LED PAR-64 COB RGBW 120W Zoom (PUMG-120FTL-ND4N)

Pcb (Power supply) 48V/3,13A LED Strobe SMD PRO 540 DMX RGB (PFC-150W48V)

Pcb (Power supply) 48V/3,12A LED PAR-64 (A150g-48P)

Voltage regulator LM2576HVS 5V/3A

FUTURELIGHT Voltage regulator LM2576HVT-ADJ 4-60V, 1,23-57V, TO-220

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000669-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/MoF-Kb-0VYo

EUROLITE Set 8x LED PAR-64 COB RGBW 120W Zoom bk + Case

8x PAR spot with 120 W RGBW LED and manual zoom incl. flightcase with castors-MainBild

8x PAR spot with 120 W RGBW LED and manual zoom incl. flightcase with castors-Bild-1

EUROLITE Set 8x LED PAR-64 COB RGBW 120W Zoom bk + Case

The article is no longer in our assortment.

No. 20000669

11 - 48°

9 mm

Set consisting of:

8 x EUROLITE LED PAR-64 COB RGBW 120W Zoom bk

1 x ROADINGER Flightcase 8x PAR-64/ML-56

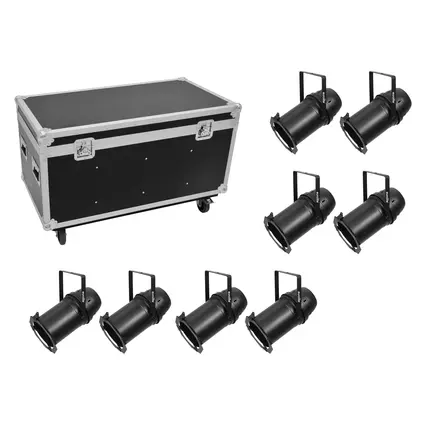

8x PAR spot with 120 W RGBW LED and manual zoom incl. flightcase with castors

EUROLITE LED PAR-64 COB RGBW 120W Zoom bk

PAR spot with 120 W RGBW LED and manual zoom

1 LED 120 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Color blend stepless; dimmer curves with adjustable response; pulse-width modulation variable
3 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function
Flicker-free
With mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Stage

ROADINGER Flightcase 8x PAR-64/ML-56

Trunk case with castors

With 8 device compartments
High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
Interior with foam padding
cover with felt cover
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 high-quality butterfly locks
4 x castors with 2 locking brakes
For further information about this product, please refer to the Data Sheet under "Downloads"
