Technical specifications

Weight:	52.10 kg
EUROLITE LED TMH-X12 Moving-Head Spot
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	170 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 120 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	0 - 18 Hz
Equipment:	Gobo wheel with rotating gobos; prism 3-fold; focus motor-driven
Color generation:	Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 23.5mm Image diameter 15mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	13; 15
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle (1/2 peak):	12°
Illuminance in Lux (lx):	Cold white (CW) 3m: 9502 lx, 6m: 2436 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 33 cm Depth: 32 cm Height: 40 cm
Weight:	11.35 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230
Maximum load:	100 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Device compartment:	38.5 cm x 22 cm x 38 cm
Inside dimensions:	56 cm x 43 cm x 46.5 cm
Middle compartment:	12 cm x 43 cm x 46.5 cm
Dimensions:	Width: 96 cm Depth: 47 cm Height: 72 cm
Weight:	25.90 kg

Spare parts

Pcb (Display) LED TMH-X12 (309BS184D)

Pcb (engine) LED TMH-X12 (309BS233A)

Pcb (LED driver) LED TMH-X12 (LED11-B)

Timing belt HTD 336-3M TMH-X12 (PAN)

Housing part (base) TMH-X12 black

Housing part (Head lens) TMH-X12 black

Housing part (Head cover) TMH-X12 black

Housing part (arm) TMH-X12 black

LED COB 6000K TSL-1200 (SST-300 180W-W)

Fan 12V/0,14A 80x80x25mm (ME80251V1-000C-A99) Sunon

Pcb (power supply) 12V 12A,36V 2A (HS-U200D12+36L)

Gobo Wheel LED TMH-X12 Moving-Head Spot 1+7 Gobos (rotating)

Pcb (photocel) LED TMH-X12 (HY-PH 111119)

Pcb (Display) LED TMH-X12 (HY-210906 PD056A6)

Pcb (engine) LED TMH-X12 (HY-210416 PM030B16)

Pcb (Display) LED TMH-X12 (HY-211015 PD056A6)

FUTURELIGHT Hall sensor magnet PHS-Serie (3144)

Schalter (AN/AUS) 4-pin 250V/10A

Fan 12V/0,20A 50x50x10mm

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000641-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/-jWRxuu8q6U

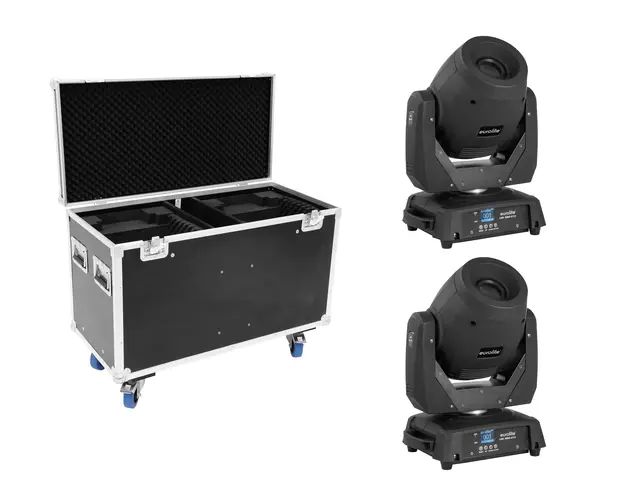

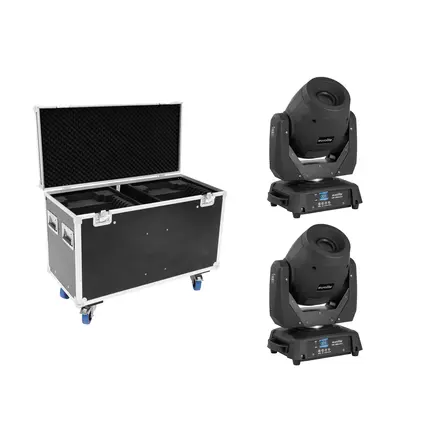

EUROLITE Set 2x LED TMH-X12 + EU Case

2x bright spot with 120 W LED, rotating gobos, color wheel and prism incl. PRO flightcase-MainBild

2x bright spot with 120 W LED, rotating gobos, color wheel and prism incl. PRO flightcase-Bild-1

EUROLITE Set 2x LED TMH-X12 + EU Case

The article is no longer in our assortment.

No. 20000641

12°

7 mm

Set consisting of:

2 x EUROLITE LED TMH-X12 Moving-Head Spot

1 x ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230

2x bright spot with 120 W LED, rotating gobos, color wheel and prism incl. PRO flightcase

Positioning within

EUROLITE LED TMH-X12 Moving-Head Spot

Bright spot with 120 W LED, rotating gobos, color wheel and prism

1 LED 120 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with rotating gobos; prism 3-fold; focus motor-driven
Dimmer electronic
Multi beam effect; gobo effect; strobe effect
Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone
Flicker-free
With a beam angle of 12°
LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
Application possibility: Standing; suspended

ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230

Trunk case with castors, PRO version

For optimal security
With 2 device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 high-quality butterfly locks
4 x castors with 2 locking brakes
Branded hardware
Made in Europe
