4x narrow angle LED Moving Bar with 5 RGBW LEDs including PRO flightcase with wheels
EUROLITE LED TMH-X Bar 5 Moving-Head Beam
Narrow beam LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT
Package contents

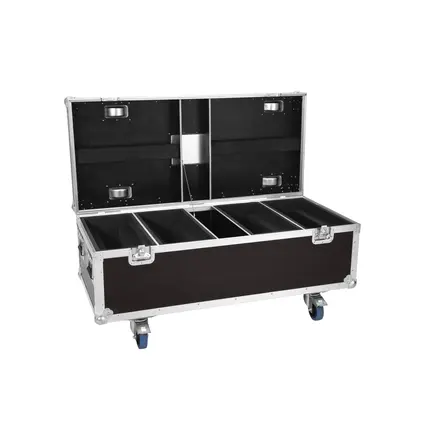

ROADINGER Flightcase 4x LED TMH-X Bar 5
PRO flightcase for 4 x Eurolite LED TMH-X Bar 5
| Weight: | 75,00 kg |
| EUROLITE LED TMH-X Bar 5 Moving-Head Beam | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 5 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 360° exact positioning (16 bit resolution) plus infinity |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 0 - 18 Hz |
| DMX channels: | 16; 32 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in Lux (lx): | Red (R) 3m: 1646 lx, 6m: 532 lx Green (G) 3m: 4112 lx, 6m: 1249 lx Blue (B) 3m: 1120 lx, 6m: 345 lx Cold white (CW) 3m: 6739 lx, 6m: 2089 lx All 3m: 10763 lx, 6m: 3175 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 43 cm Depth: 19,5 cm Height: 30 cm |
| Weight: | 8,90 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x LED TMH-X Bar 5 | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 7 mm; birch multiplex |
| Color: | Black, laminated; dark brown, laminated |
| Device compartment: | 10,5 cm x 43,5 cm x 21,5 cm |
| Middle compartment: | 13 cm x 36,5 cm x 47,5 cm |
| Inside dimensions: | 43,5 cm x |
| Dimensions: | Width: 115 cm Depth: 52,5 cm Height: 53,5 cm |
| Weight: | 31,70 kg |
