2x sunbar with ambient light including PRO flightcase
EUROLITE Set 2x LED STP-10 ABL Sunbar + Case

svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
7 mm
EUROLITE

2x sunbar with ambient light including PRO flightcase

EUROLITE Set 2x LED STP-10 ABL Sunbar + Case

Item no. 20000602

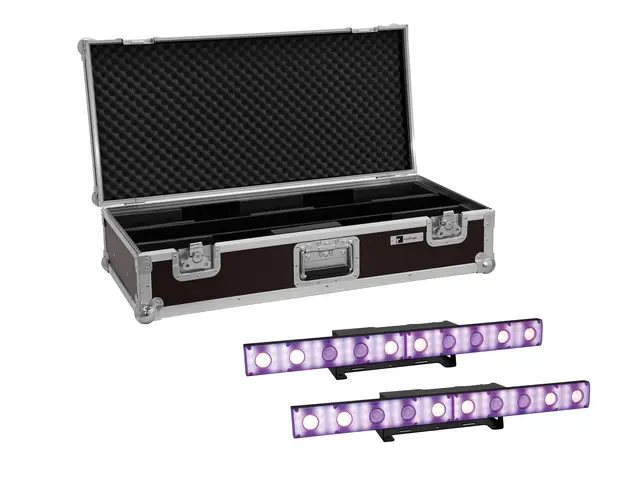

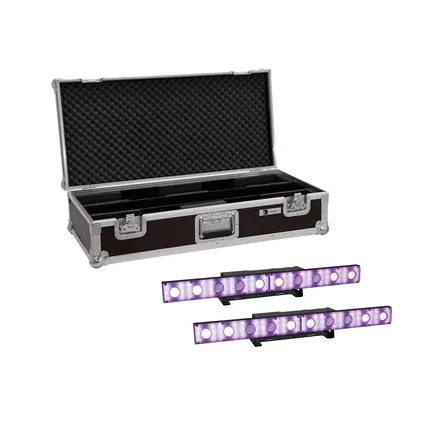

Set consisting of:
mpn42103492
2 x EUROLITE LED STP-10 ABL Sunbar
mpn31005146
1 x ROADINGER Flightcase 2x LED STP-10 ABL Sunbar
Features

2x sunbar with ambient light including PRO flightcase

EUROLITE LED STP-10 ABL Sunbar

Sunbar with ambient light

  • The white LEDs have a narrow beam angle and produce clearly defined beams
  • Creates a unique ambience
  • 60 powerful LEDs 0,5 W SMD 5050 3in1 TCL RGB (homogenous color mix)
    LEDs controlled separately
  • 10 powerful LEDs 3 W high-power warm white (WW)
    LEDs controlled separately
  • Mood lights; color animations
  • Integrated show programs
  • The device is cooled by passive convection cooling
  • Control via stand-alone; DMX; sound to light via microphone; ArtNet
  • With mounting bracket
  • Silent operation
  • Strobe effect
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; Trade fair and shop fitting; stage; restaurants, bars and hotels
  • Application possibility: Suspended; wall mounting

ROADINGER Flightcase 2x LED STP-10 ABL Sunbar

Carrying case, PRO version

  • With accessory compartment
  • With 2 Device compartments
  • High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • Hinged, chromium plated case handle
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:16,00 kg
EUROLITE LED STP-10 ABL Sunbar
Power supply:100-240 V AC, 50/60 Hz
Power consumption:70 W
IP classification:IP20
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
Lamp type:LED lamp
LED type:60 x 0,5 W SMD 5050 3in1 TCL RGB (homogenous color mix)
10 x 3 W high-power warm white (WW)
Flash rate:0 - 18 Hz
DMX channels:11; 20; 47; 190
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Network connection:Protocol: ArtNet 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:Passive convection cooling
Control:Stand-alone; DMX; sound to light via microphone; ArtNet
Housing color:Black
Attachment system:Mounting bracket
Dimensions:Length: 78 cm
Depth: 14 cm
Height: 10,5 cm
Weight:3,50 kg
Noise classification:Class 0 (no noise at all)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x LED STP-10 ABL Sunbar
Maximum load:25 kg
Aluminum profile frames:25 mm
Case handle:1 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Use of brands:Branded hardware
Material:Plywood multi-layer glued, 7 mm; birch multiplex
Color:Black, laminated; dark brown, laminated
Accessory compartment:78 cm x 10 cm x 13 cm
Device compartment:78 cm x 7 cm x 13 cm
Inside dimensions:78 cm x 35 cm x 13 cm
Dimensions:Width: 84 cm
Depth: 23 cm
Height: 41 cm
Weight:9,00 kg
