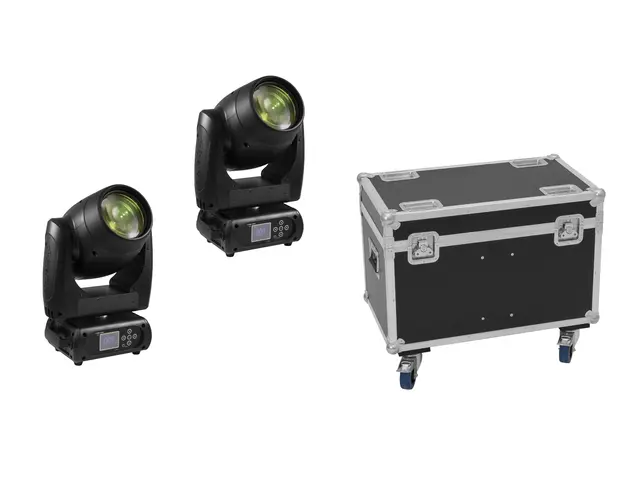

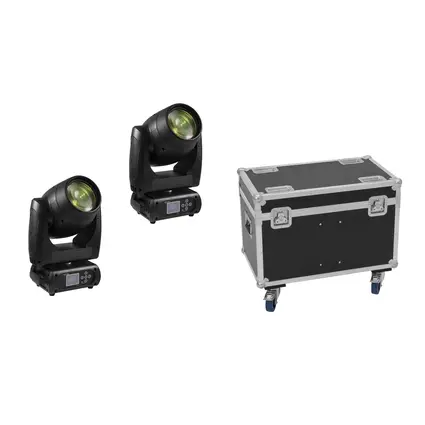

2x PRO beam moving head with a 50 W LED and RGB color mixing including flightcase with wheels
FUTURELIGHT Set 2x DMB-50 + Case

svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
7 mm
svg
svg
svg
svg
svg
svg
FUTURELIGHT

2x PRO beam moving head with a 50 W LED and RGB color mixing including flightcase with wheels

FUTURELIGHT Set 2x DMB-50 + Case

No. 20000568
Set consisting of:
mpn51841802
2 x FUTURELIGHT DMB-50 LED Moving-Head
mpn31005072
1 x ROADINGER Flightcase 2x DMH-75.i/DMH-80/TMH XB-130
Features

2x PRO beam moving head with a 50 W LED and RGB color mixing including flightcase with wheels

  • Positioning within TILT

FUTURELIGHT DMB-50 LED Moving-Head

PRO beam moving head with a 50 W LED and very good RGB color mixing

  • 50W RGB LED engine enables extraordinary projection possibilities
  • Even color mixing, sharp, narrow beams, vivid single colors and homogeneous white
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • 1 powerful LED 50 W COB (chip-on-board) 3in1 TCL RGB (homogenous color mix)
  • Positioning within 540° PAN, 270° TILT
  • PAN angle switchable between 540° and 630°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo wheel with static gobos; prism 8-fold; frost filter; focus motor-driven
  • Dimmer electronic; color selection
  • Gobo effect; strobe effect
  • Gobo wheel with static gobos, 17 gobos and open
    shake effect
  • The device is cooled by temperature-controlled fan
  • Control via RDM; DMX; stand-alone; sound to light via microphone; W-DMX by wireless solution upgradeable
  • Preprogrammed in Light´J; LED PC-Control 512; Light Captain
  • Flicker-free
  • With a beam angle of 2°
  • Built with NEUTRIK connector
  • For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
  • Application possibility: Standing; suspended

ROADINGER Flightcase 2x DMH-75.i/DMH-80/TMH XB-130

Trunk case with castors, PRO version

  • With 2 device compartments
  • With accessory compartment
  • High-quality workmanship with plywood multi-layer glued 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • 4 castors with 2 locking brakes
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:48,10 kg
FUTURELIGHT DMB-50 LED Moving-Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:115 W
IP classification:IP20
Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray), mounting version
Lamp type:LED lamp
LED type:1 x 50 W COB (chip-on-board) 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:540°, 630° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:0 - 20 Hz
Equipment:Gobo wheel with static gobos; prism 8-fold; frost filter; focus motor-driven
Gobos:Gobo wheel with static gobos, 17 gobos and open
Shake effect
DMX channels:16; 18; 20; 21
DMX input:1 x 5-pin XLR (M) mounting version
DMX output:1 x 5-pin XLR (F) mounting version
Cooling:Temperature-controlled fan
Control:RDM; DMX; stand-alone; sound to light via microphone; W-DMX by wireless solution upgradeable
Preprogrammed in:Light´J; LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle:
Beam angle (1/2 peak):
Illuminance in Lux (lx):Red (R) 6m: 4153 lx
Green (G) 6m: 28365 lx
Blue (B) 6m: 1725 lx
All 6m: 34232 lx
Housing color:Black
Use of brands:Built with NEUTRIK connector
Dimensions:Width: 29,8 cm
Depth: 26,7 cm
Height: 39,8 cm
Weight:12,40 kg
Noise classification:Class 2 (slight noise)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x DMH-75.i/DMH-80/TMH XB-130
Maximum load:50 kg
Aluminum profile frames:25 mm
Case handle:2 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:4 x castors with 2 locking brakes
Use of brands:Branded hardware
Material:Plywood multi-layer glued, 7 mm
Color:Dark brown, laminated
Compartment dimensions:19,5 cm x 33 cm x 48 cm
Accessory compartment:10,5 cm x 33 cm x 49 cm
Inside dimensions:73 cm x 33 cm x 49 cm
Dimensions:Width: 78 cm
Depth: 38 cm
Height: 66 cm
Weight:17,90 kg
Packaging units
PUEANWeightDimensions
1402639751272449,00 kg120cm x 80cm x 80cm
Accessories
Loading accessories. Please wait...
Support
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
