Technical specifications

Weight:	0.66 kg
EUROLITE LED Strip 300 5m 3528 2700K 12V
Power supply:	12V DC
Power consumption:	18 W
Protection class:	Protection class III
Power connection:	Fixed supply cord with open wires
Lamp type:	LED lamp
LED type:	300 x SMD 3528 warm white (WW)
Control:	Accessory
Standing/fixation:	Self adhesive
Color temperature:	2700K
Color rendering index (CRI):	93 Ra
Lamps/meter:	60 pc/pcs
Power/meter:	3.6 W
Lamps/tube:	300 pc/pcs
Lamp distance:	16 mm
Cutting mark:	5 cm
Luminous flux (Lumen) per meter:	360 lm/m
Housing color:	White
Dimensions:	Length: 500 cm Width: 0.8 cm Height: 0.2 cm
Weight:	0.09 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	G
EUROLITE LED Strip Receiver Zone Single Color
Power supply:	12/24V DC
Power consumption:	Max. 192 W 12 V DC Max. 384 W 24 V DC 96 W 12 V DC per channal 192 W 24 V DC per channal
Output current:	Max. 2 x 8 A per channal
Power connection:	Via screw terminal
Power output:	Screw terminal
Carrier frequency:	2.4 GHz
Dimensions:	Length: 11.5 cm Width: 4.5 cm Height: 3.2 cm
Weight:	0.08 kg
EUROLITE LED Strip Remote Control Zone Single Color
Battery:	2 x 1.5 V AAA Micro LR03 alkaline manganese included
Range:	Range up to 30m
Carrier frequency:	2.4 GHz
Dimensions:	Length: 14.7 cm Width: 4 cm Height: 2.8 cm
Weight:	0.09 kg
EUROLITE Electr. LED Transformer, 12V, 4A
Power supply:	100-240 V AC, 50/60 Hz
Protection class:	Protection class II
Power connection:	Mains input via screw terminal
Power output:	Screw terminal
Housing color:	White matte
Controls:	Overload; short-circuit; overheat
Output:	12V DC, stabilized; 4 A;
Material:	Plastic
Dimensions:	Length: 18 cm Width: 4 cm Height: 2.5 cm
Weight:	0.16 kg
EUROLITE LED Strip Power Contact 2-Pin 8mm
Material:	Plastic
Color:	Multicolor
Dimensions:	Length: 16 cm Width: 1.30 cm Height: 0.70 cm
Weight:	0.01 kg

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000553-Images-.zip

EUROLITE Set LED Strip 2700K 5m + 2x Controller Zone + 2x Transformer 12V

LED Strip 5m, 2x Controller Zone and 2x Transformer 12V-MainBild

LED Strip 5m, 2x Controller Zone and 2x Transformer 12V-Bild-1

EUROLITE Set LED Strip 2700K 5m + 2x Controller Zone + 2x Transformer 12V

The article is no longer in our assortment.

No. 20000553

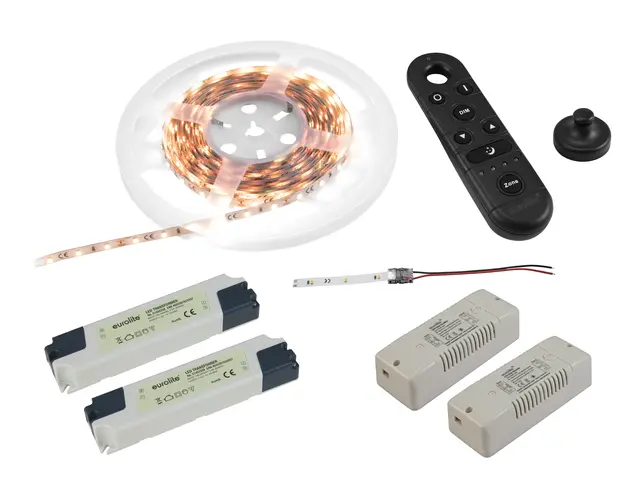

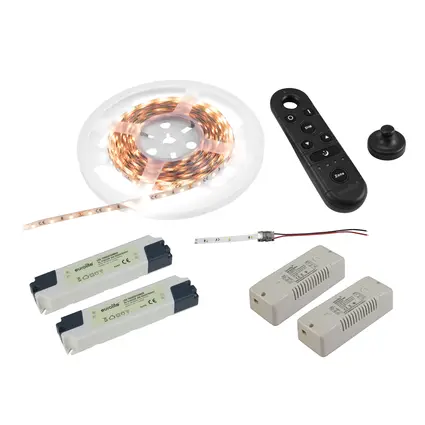

Set consisting of:

1 x EUROLITE LED Strip 300 5m 3528 2700K 12V

2 x EUROLITE LED Strip Receiver Zone Single Color

1 x EUROLITE LED Strip Remote Control Zone Single Color

2 x EUROLITE Electr. LED Transformer, 12V, 4A

1 x EUROLITE LED Strip Power Contact 2-Pin 8mm

LED Strip 5m, 2x Controller Zone and 2x Transformer 12V

EUROLITE LED Strip 300 5m 3528 2700K 12V

Flexible LED strip with a CRI >90

Flexible LED strip for decorative lighting
High-grade components and a solid construction guarantee a long service life and excellent color rendering
Can be cut into segments of variable size
Self-adhesive rear side
Supplied on a plastic reel
Power cable, straight and flexible plug connectors available as accessories
300 LEDs SMD 3528 warm white (WW)
Control via accessory
Very high color rendering index (CRI)
For application areas such as: Trade fair and shop fitting; clubs/dancing school; installation; restaurants, bars and hotels
Silent operation

EUROLITE LED Strip Receiver Zone Single Color
