Technical specifications

Weight:	7.02 kg
EUROLITE AKKU Flat Light 1 sil
Power supply:	100-240 V AC, 50/60 Hz 12.6V DC 2500 mA
Protection class:	Protection class III
Power connection:	Battery/battery pack Mains input via coaxial power connector (M) mounting version power supply cord with Euro plug (provided)
Lamp type:	LED lamp
LED type:	1 x 15 W SMD 9080 4in1 RGBW (homogenous color mix)
DMX channels:	3; 4; 6; 8; 10
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Master/slave function; stand-alone; IR remote control; sound to light via microphone; QuickDMX
Fixtures available for:	LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Projection:	Flicker-free
Carrier frequency:	2.4 GHz
Beam angle (1/2 peak):	8°
Housing color:	Silver
Dimensions:	Width: 16.8 cm Depth: 13.8 cm Height: 6.2 cm
Weight:	1.67 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
Device
Battery pack type:	1 x lithium ion 11.1 V, 2600 mAh, 28.86 Wh
Battery pack:	Battery operation up to 18h depending on program used Recharging time 4h
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE SB-14 Soft Bag
Carrying strap:	2 pc/pcs
Material:	Nylon
Color:	Black, water repellent
Dimensions:	Width: 28 cm Depth: 22 cm Height: 18 cm
Weight:	0.34 kg

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000423-Images-.zip

Video link

EUROLITE Set 4x AKKU Flat Light 1 silver + Soft Bag

The article is no longer in our assortment.

No. 20000423

8°

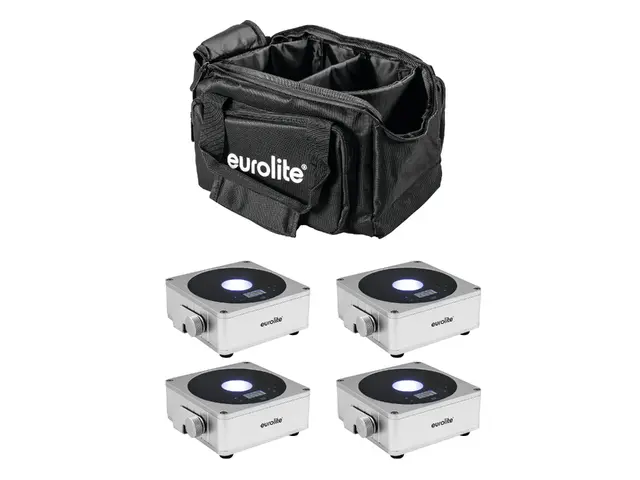

Set consisting of:

4 x EUROLITE AKKU Flat Light 1 sil

1 x EUROLITE SB-14 Soft Bag

4x flat spotlight with 15 W RGBW LED including soft bag

EUROLITE AKKU Flat Light 1 sil

With QuickDMX transceiver - cordless, flexible and versatile
Equipped with a 15 W QCL LED in red, green, blue and white
Cordless and versatile
Elegant housing for indoor use
With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
Operation via built-in rechargeable lithium-ion battery with up to 18 hours operating time
Integrated automatic charging of the battery with indicator
Stepless color blend, color change, preset colors, dimmer and strobe effect
Dimmer speed (step response) adjustable
Addressing and setting via Control Board with touch buttons and LCD
Inclination angle manually adjustable via the bracket
Charger included in delivery
1 LED 15 W SMD 9080 4in1 RGBW (homogenous color mix)
Strobe effect
The device is cooled by passive convection cooling
Control via master/slave function; stand-alone; IR remote control; sound to light via microphone; QuickDMX
Flicker-free
With a beam angle of 8°
For application areas such as: Wedding/gala/events; small rental
Silent operation
