Active speaker set incl. distance tubes and connecting cables

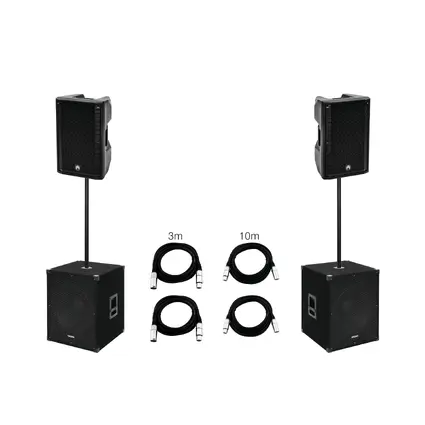

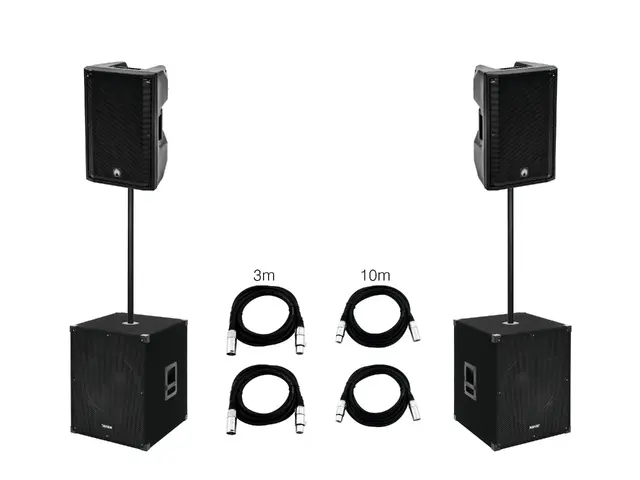

OMNITRONIC Set 2x XKB-212A + 2x MagiCarpet-151A MK2

svg
svg
svg
3,5 cm
svg
svg
svg
svg
svg
svg
OMNITRONIC

Active speaker set incl. distance tubes and connecting cables

OMNITRONIC Set 2x XKB-212A + 2x MagiCarpet-151A MK2

Item no. 20000420
Set consisting of:
mpn11038795
2 x OMNITRONIC XKB-212A 2-way Speaker, active, DSP
mpn11037408
2 x OMNITRONIC MagiCarpet-151A MK2 Active Subwoofer
mpn60004552
2 x OMNITRONIC Distance Tube Subwoofer/Satellite 100cm
mpn30227980
2 x PSSO Speaker Cable XLR 2x2.5 3m bk
mpn3022055N
2 x OMNITRONIC XLR Cable 3-pin 10m bk
Features

Active speaker set incl. distance tubes and connecting cables

OMNITRONIC XKB-212A 2-way Speaker, active, DSP

Active speaker with 12" woofer, 1,35" driver, 60 W RMS HF, 300 W RMS LF

  • Active 12/2 full range system for mobile live and DJ applications
  • DSP-controlled biamp amplifier (LF class D, HF class A/B)
  • 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
  • Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
  • 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
  • 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
  • Control via Bluetooth
  • LCD display
  • Digital signal processor
  • Black metal grille with acoustic foam
  • 3 Rugged carrying handles
  • Application possibility: Standing; monitoring; on stand
  • DSP presets: LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
  • For application areas such as: Mobile use; Rental; sports centres/gyms; mobile djs / entertainer

Package contents

  • 1 x compact cabinet speaker, 1 x power cord, 1 x user manual, 1 x declaration of conformity

OMNITRONIC MagiCarpet-151A MK2 Active Subwoofer

Active 15" PA bassreflex subwoofer, 500 W

  • Active bassreflex subwoofer with 250 W RMS power
  • 38 cm bass speaker (15") with 76 mm voice coil
  • Adjustable XLR input with feed-through output
  • XLR output with high-pass filter for active top speakers
  • Adjustable crossover frequency from 40 to 250 Hz
  • Bass boost, ground lift and phase control
  • Power and signal/limit indicator
  • Rugged wooden housing with black felt cover
  • Metal flange for mounting top speakers
  • Bar handles for easy transport
  • Impact-resistant metal grille, steel corners and support feet
  • For mobile applications and permanent installations
  • Suitable for car transport

OMNITRONIC Distance Tube Subwoofer/Satellite 100cm

Distance tube

  • Connecting tube for satellite systems
  • For stand inserts with standard diameter (35 mm)
  • Powder-coated steel version

PSSO Speaker Cable XLR 2x2.5 3m bk

High-quality speaker cable

  • Suitable for all passive speaker-systems with XLR socket
  • 2.5 mm² thick cores for amplified signals without signal loss
  • Not to be used as microphone cable!
  • Built with NEUTRIK connector
  • Made in Germany

Package contents

  • 1 x speaker cable

OMNITRONIC XLR Cable 3-pin 10m bk

Audio cable with 3-pin XLR connectors

Package contents

  • 1 x xLR cable
Technical specifications
Weight:100,27 kg
OMNITRONIC XKB-212A 2-way Speaker, active, DSP
Power supply:100-240 V AC, 50/60 Hz
Power consumption:800 W
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Program: 600W
Rated: 60W RMS HF
Rated: 300W RMS LF
Frequency range:55 - 20000 Hz
Sensitivity:95 dB
DSP:Digital signal processor
DSP presets:LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
Control:Bluetooth
Bluetooth device name:Omnitronic
Attachment system:Flange: Ø 35mm
Circuitry:Class D Biamp
Display type:LCD display
Control elements:Master control, encoder
Controls:Limiter
Status LED:Power, signal, limit
Connections:Output: line via 1 x 3-pin XLR
Input channels:2 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial
Equalizer:Master: 1 x 3-band tone control
Speaker:1 x woofer 12"
Voice coil lows 2,4" with ferrit magnet
Voice coil compression tweeter highs 1,35"
Type of speaker:Compact cabinet speaker
Type of construction:Vented
Carrying handle:3 pc/pcs
Material:Plastic
Color:Black
Dimensions:Width: 38 cm
Depth: 35 cm
Height: 61 cm
Weight:15,45 kg
OMNITRONIC MagiCarpet-151A MK2 Active Subwoofer
Power supply:230 V AC, 50 Hz
Power consumption:280 W
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Program: 500W
Rated: 250W RMS
Frequency range:40 - 250 Hz
Max. SPL:125 dB
Attachment system:Ø 35mm
Connections:Input: line via 2 x 3-pin XLR
Link: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR
Speaker:1 x woofer 15"
Type of speaker:Subwoofer
Type of construction:Vented
Dimensions:Width: 52 cm
Depth: 63,5 cm
Height: 51,5 cm
Weight:33,10 kg
OMNITRONIC Distance Tube Subwoofer/Satellite 100cm
Maximum carrying capacity:35 kg
Attachment system:Ø 35mm
Type (general stands):Distance tube
Material:Steel
Color:Black
Dimensions:Height: 1 m
Diameter: Ø 3,5 cm
Weight:780 g
PSSO Speaker Cable XLR 2x2.5 3m bk
Cable construction:2 x 2,5 mm² speaker cable
Cable length:3 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Use of brands:Built with NEUTRIK connector
Color:Black
Weight:350 g
OMNITRONIC XLR Cable 3-pin 10m bk
Cable construction:Audio cable
Cable length:10 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Color:Black
Weight:460 g
