Technical specifications

Weight:	0.38 kg
OMNILUX LED BCL-1 E-27 Hybrid Beam Effect
Voltage (lamps):	230 V
Nominal wattage:	12 W
Base:	E27
Lamp type:	LED lamp
Lamp specification:	Hot restrike
LED type:	20 x SMD 3528 cold white (CW) 3 x 5 mm R/G/B
Beam angle:	180°
Speed:	6.5 RPM
Control:	Stand-alone
Color of light:	Switching colors
Lead time:	1 s
Construction:	Special
Operating temperature max.:	40° C
Operating temperature min.:	20° C
Burning position:	S180 (universal)
Lamp current:	0.06 A
Dimensions (LxD):	140x80 mm
Housing color:	Clear
Weight:	0.09 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE Triangle Base black
Power supply:	230 V AC, 50 Hz
Power consumption:	Max. 60 W
Power connection:	Fixed power supply cord with Euro plug
Cable construction:	2 x 0.75 mm² H03VVH2-F
Cable length:	Approx. 1.8 m
Base:	E27
Control:	On/off switch at cable
Color:	Black
Dimensions:	Width: 15 cm Depth: 15 cm Height: 10 cm
Weight:	0.29 kg

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000275-Images-.zip

EUROLITE Set LED BCL-1 + Triangle base black

The article is no longer in our assortment.

No. 20000275

180°

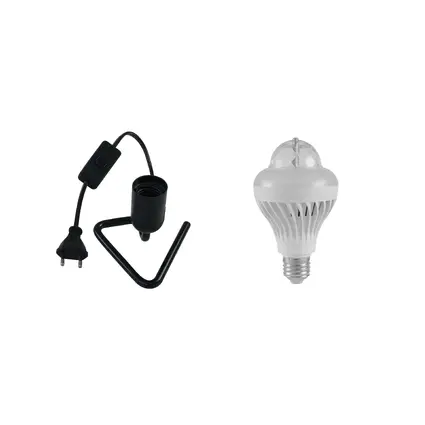

Set consisting of:

1 x OMNILUX LED BCL-1 E-27 Hybrid Beam Effect

1 x EUROLITE Triangle Base black

Disco effect light with socket

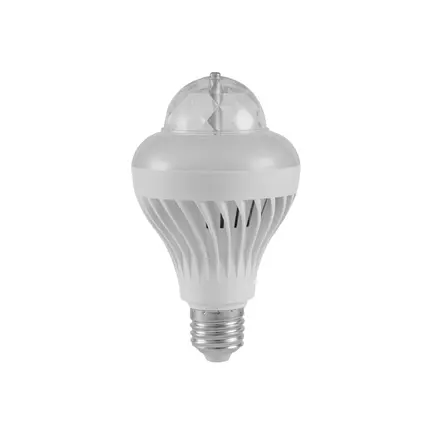

OMNILUX LED BCL-1 E-27 Hybrid Beam Effect

The upper light effect dome is equipped with 3 x 5 mm LEDs (1xR, 1xG, 1xB) and the ring below comprises 20 white 3528 SMD LEDs (6400 K)
Create colorful kaleidoscopic effects
E-27 socket
6.5 rotations per minute
Perfect for use in small discos, party rooms even in children's rooms
Disco feeling anywhere, in no time at all
Plug & Play: just screw it in - ready!
Hot restrike
20 LEDs SMD 3528 cold white (CW)
3 LEDs 5 mm R/G/B
Multi beam effect
Control via stand-alone

EUROLITE Triangle Base black
