EUROLITE Set 4x LED BAR-252 RGBA 10mm 20° black + Case

20°

7 mm

The article is no longer in our assortment.

No. 20000213

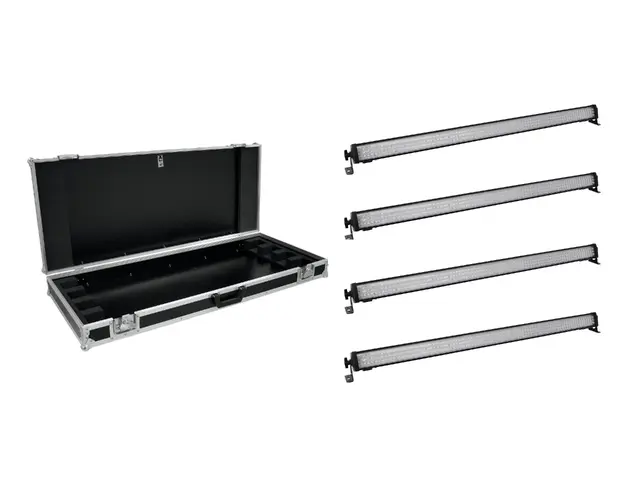

Set consisting of:

4 x EUROLITE LED BAR-252 RGBA 10mm 20°

1 x ROADINGER Flightcase 4x LED BAR-252 RGB

Features

EUROLITE LED BAR-252 RGBA 10mm 20°

Versatile LED-RGBA color changer

Operable in stand-alone mode or via DMX
DMX512 control possible via any commercial DMX controller (occupies max.19 channels)
4, 6 or 19 DMX channels selectable for numerous applications
Sound-control via built-in microphone
Comfortable addressing and setting via control panel with LCD display and four operating buttons
Functions: Static colors, RGBA color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
Equipped with 252 x 10 mm LED
Locking possibility at the mounting bracket
Ready for connection with power cord and safety plug
Available in 2 LED beam angles: 20° or 40°
Advantages of high-power LED technology: extreme light output, long life, low power consumption, defacto maintenance free with brilliant light radiation
Strobe effect
Control via stand-alone; DMX
Preprogrammed in Light´J; LED PC-Control 512
With a beam angle of 20°

ROADINGER Flightcase 4x LED BAR-252 RGB

Carrying case, PRO version

High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
Rugged carrying handle
2 chrome tip-over locks
2 high-quality butterfly locks
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	19.90 kg
EUROLITE LED BAR-252 RGBA 10mm 20°
Power supply:	230 V AC, 50 Hz
Power consumption:	24.00 W
IP classification:	IP20
Lamp type:	LED lamp
DMX channels:	6; 4
Control:	Stand-alone; DMX
Preprogrammed in:	Light´J; LED PC-Control 512
Beam angle:	20°
Beam angle (1/2 peak):	20°
Housing color:	Black
Dimensions:	Length: 108 cm Depth: 6.5 cm Height: 9 cm
Weight:	2.65 kg
DMX channels:	max. 19: 4 / 6 / 19
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	10 mm
LED number:	252
Beam angle:	20°
Dimensions (L x W x H):	1075 x 65 x 90 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x LED BAR-252 RGB
Maximum load:	25 kg
Aluminum profile frames:	30 mm
Carrying handle:	1 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Inside dimensions:	106.5 cm x 44 cm x 7.5 cm
Device compartment:	106.5 cm x 6.5 cm x 7.5 cm
Dimensions:	Width: 114.5 cm Depth: 47.5 cm Height: 14.5 cm
Weight:	9.30 kg
