4x bright spot with 60 W LED including PRO flightcase with wheels
EUROLITE Set 4x LED TMH-60 MK2 + Case

svg
svg
svg
svg
7 mm
svg
svg
svg
svg
svg
14°
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

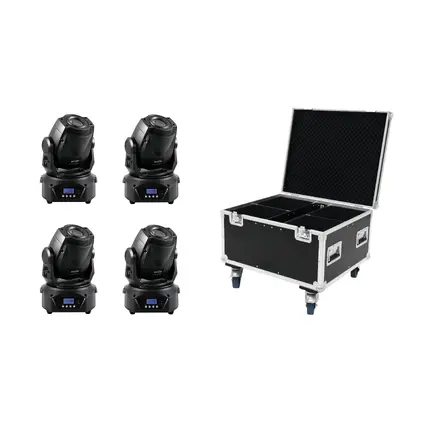

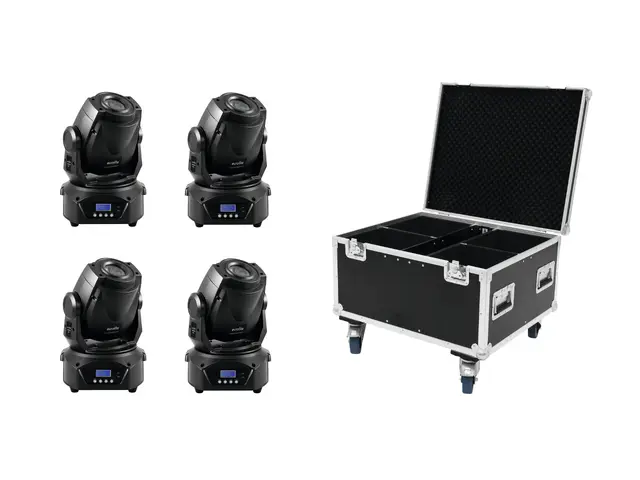

4x bright spot with 60 W LED including PRO flightcase with wheels

EUROLITE Set 4x LED TMH-60 MK2 + Case

No. 20000189
Set consisting of:
mpn51785983
4 x EUROLITE LED TMH-60 MK2 Moving Head Spot COB
mpn31001084
1 x ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels
Features

4x bright spot with 60 W LED including PRO flightcase with wheels

EUROLITE LED TMH-60 MK2 Moving Head Spot COB

Bright spot with 60 W LED, 2 gobo wheels, color wheel and prism

  • Compact lightweight
  • Equipped with a 60 W COB LED
  • 3-facet prism (rotating)
  • Preprogrammed scenes in Program Run for stand-alone operation
  • Electronic dimmer
  • Motorized focus
  • Programmable color-change speed and strobe effect
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
  • TILT-angle switchable between 270°, 180° and 90° (in sound and auto mode)
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 Volts
  • 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
  • TILT angle switchable between 270° and 180°; and 90°
  • PAN angle switchable between 540° and 360°; and 180°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; focus motor-driven
  • Gobo effect; beam effect
  • Color wheel with 7 dichroic filters plus open
    rainbow effect with adjustable speed in both directions
  • Gobo wheel with static gobos, 8 gobos and open
  • Gobo wheel with rotating gobos, 6 gobos and open
    shake effect
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; sound to light via microphone
  • Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
  • With a beam angle of 14°
  • LCD display

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x XLR cable, 2 x omega bracket

ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels

Trunk case with castors, PRO version

  • For optimal security
  • With 4 device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
    cover with foam padding
  • Aluminum profile frames 30mm with rounded edges
  • 4 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • 4 x castors with 2 locking brakes
  • 4 x built-in stacking trays in the cover
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
EUROLITE LED TMH-60 MK2 Moving Head Spot COB
Power supply:100-240 V AC, 50/60 Hz
Power consumption:135 W
IP classification:IP20
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:LED lamp
LED type:1 x 60 W COB (chip-on-board) cold white (CW)
Max. TILT movement:270°, 180° exact positioning (16 bit resolution) auto position correction (feedback); , 90°
Max. PAN movement:540°, 360° exact positioning (16 bit resolution) auto position correction (feedback); , 180°
Equipment:Gobo wheel with rotating gobos; gobo wheel with static gobos; prism 3-fold; focus motor-driven
Color generation:Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with static gobos, 8 gobos and open
Gobo wheel with rotating gobos, 6 gobos and open
Shake effect
DMX channels:2; 11; 14
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; sound to light via microphone
Preprogrammed in:Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Beam angle:14°
Beam angle (1/2 peak):14°
Illuminance in Lux (lx):Cold white (CW) 1m: 26675 lx, 3m: 3045 lx, 6m: 768 lx
Housing color:Black
Display type:LCD display
Dimensions:Width: 25 cm
Depth: 24,5 cm
Height: 31,5 cm
Weight:7,40 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 4x TMH-30/TMH-40/TMH-60 with wheels
Maximum load:100 kg
Aluminum profile frames:30 mm
Case handle:4 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Device compartment:27 cm x 27 cm x 28 cm
Accessory compartment:10 cm x 56 cm x 28 cm
Inside dimensions:65 cm x 55 cm x 30,5 cm
Dimensions:Length: 71 cm
Width: 60 cm
Height: 53 cm
Weight:20,20 kg
