EUROLITE Set 4x LED PMC-16x30W COB RGB WFL + Case

60°

7 mm

The article is no longer in our assortment.

Item no. 20000187

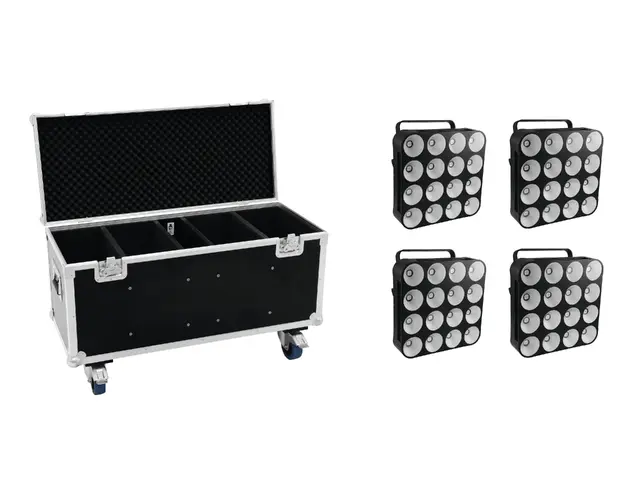

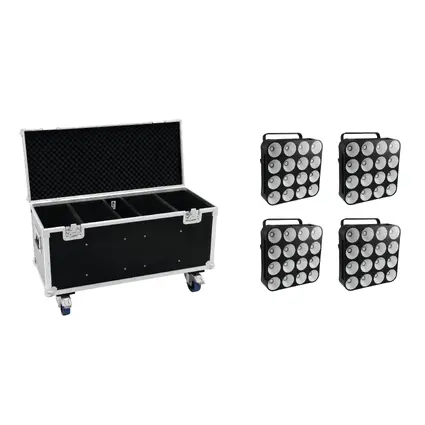

Set consisting of:

4 x EUROLITE LED PMC-16x30W COB RGB WFL

1 x ROADINGER Flightcase 4x PMC-16

Features

EUROLITE LED PMC-16x30W COB RGB WFL

PRO COB performance cluster (4 x 4 matrix) with 60° beam angle

Equipped with 16 x 30 W COB LEDs in the colors red, green and blue
3, 5, 48 or 51 DMX channels selectable for various applications
Each LED can be controlled individually
Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
Functions: static colors; RGB color mixture, automatic color change, built-in programs and strobe effect with variable speed, dimmer, Master/Slave
DMX-controlled operation or stand-alone operation with Master/Slave function
Comfortable addressing and setting via control panel with LC display and four operating buttons
Locking possibility at the mounting bracket
Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power another device
After every 8 device the fixtures must have a renewed connection with the power mains
DMX control via every standard DMX controller
Control via DMX; Sound to light via Microphone
Preprogrammed in Light´J; Light Captain
For further information about this product, please refer to the Data Sheet under "Downloads"

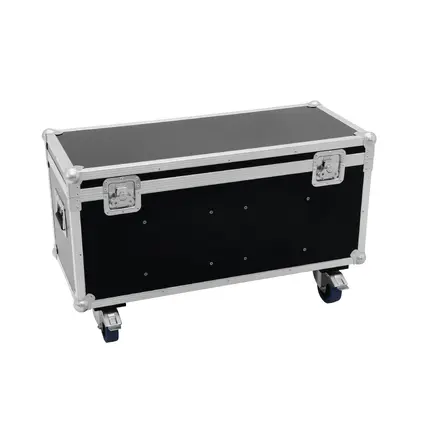

ROADINGER Flightcase 4x PMC-16

PRO flightcase for 4 x PMC-16

Compartments for four PMC-16
Suitable for 41606200 EUROLITE LED PMC-16x20W COB 3200K and 41606400 EUROLITE LED PMC-16x30W COB RGB
Interior upholstered with foam
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (25 mm) with rounded edges
Three-leg, large steel ball corners
2 x hinge
2 high-quality butterfly locks
2 case handles
Castors
Branded hardware
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	54,10 kg
EUROLITE LED PMC-16x30W COB RGB WFL
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	470 W
IP classification:	IP20
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
Flash rate:	1 - 20 Hz
DMX channels:	3
Control:	DMX; Sound to light via Microphone
Preprogrammed in:	Light´J; Light Captain
Beam angle (1/2 peak):	60°
Housing color:	Black
Dimensions:	Width: 18 cm Depth: 37 cm Height: 35 cm
Weight:	8,5 kg
DMX channels:	3/5/48/51
DMX connection:	5-pin and 3-pin XLR
Flash-rate:	20 Hz
Sound-control:	via built-in microphone
LED number:	16
LED type:	Cluster 30 W, RGB
Beam angle:	60°
Dimensions (W x D x H):	350 x 180 x 370 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x PMC-16
Maximum load:	50 kg
Transport aid:	Castors
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Dimensions:	Width: 1 m Depth: 39,5 cm Height: 56 cm
Weight:	20,10 kg
Strength:	7 mm
Outside dimensions (W x D x H):	1000 x 395 x 560 mm
Inside dimensions (W x D x H):	960 x 355 x 390 mm
Compartment dimensions (W x D x H):	195 x 355 x 390 mm
Accessory compartment (W x D x H):	95 x 355 x 315 mm
