Technical specifications
Weight:41.60 kg
EUROLITE LED TMH-X5 Moving Head Wash Zoom
Power supply:100-240 V AC, 50/60 Hz
Power consumption:220 W
Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray)
Lamp type:LED lamp
LED type:19 x 12 W high-power 4in1 RGBW (homogenous color mix)
Max. TILT movement:270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:540° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:Zoom motor driven
DMX channels:20; 28
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX; stand-alone; sound to light via microphone
Fixtures available for:Light´J; LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle (1/2 peak):1 - 28°
Beam angle (1/10 peak):6 - 55°
Illuminance in Lux (lx):Narrow red (R) 3m: 2753 lx, 6m: 699 lx
Narrow green (G) 3m: 4727 lx, 6m: 1188 lx
Narrow blue (B) 3m: 1159 lx, 6m: 300 lx
Narrow cold white (CW) 3m: 6480 lx, 6m: 1678 lx
Narrow all 3m: 11980 lx, 6m: 3074 lx
Housing color:Black
Dimensions:Width: 32 cm
Depth: 22 cm
Height: 44 cm
Weight:11.10 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x TMH-X5 with Wheels
Maximum load:50 kg
Aluminum profile frames:25 mm
Case handle:2 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Middle compartment:10.5 cm x 38 cm x 31 cm
Device compartment:38 cm x 31 cm
Inside dimensions:38 cm x 31 cm
Dimensions:Width: 76.5 cm
Depth: 42.5 cm
Height: 61 cm
Weight:19.40 kg

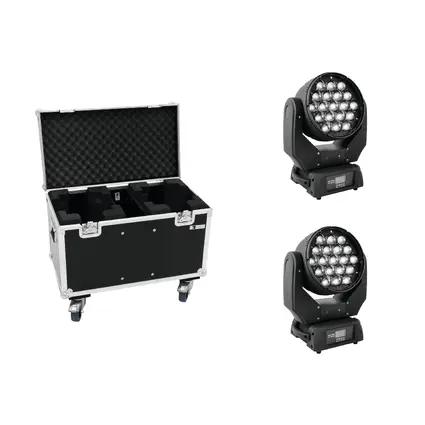

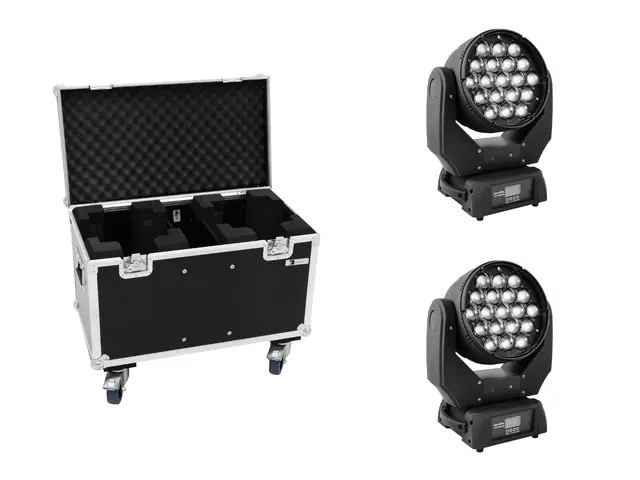

EUROLITE Set 2x LED TMH-X5 + Case

EUROLITE

EUROLITE Set 2x LED TMH-X5 + Case

No. 20000116
svg
1 - 55°
svg
svg
svg
svg
svg
svg
svg
svg
svg
7 mm
svg
svg
svg
svg
Set consisting of:
mpn51785990
2 x EUROLITE LED TMH-X5 Moving Head Wash Zoom
mpn31005084
1 x ROADINGER Flightcase 2x TMH-X5 with Wheels

2x washlight with 12 W COB LEDs including PRO flightcase with wheels

EUROLITE LED TMH-X5 Moving Head Wash Zoom

Washlight with 19 x 12 W LEDs, 4in1 RGBW color mixing and motorized zoom

  • Equipped with 19 x 12 W COB LED with RGBW colors, distributed in 3 segments
  • Each segment can be controlled individually via DMX
  • Positioning within 540° PAN and 270° TILT
  • Stepless RGBW color mixture
  • Dimmer
  • Dimmer speed (step response) adjustable
  • Motorized zoom with 1-55° beam angle
  • Color presets
  • Different patterns and movements can be selected via DMX
  • Strobe effect with adjustable speed
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with LCD display for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
  • Neutrik PowerCon terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • 19 LEDs 12 W high-power 4in1 RGBW (homogenous color mix)
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Zoom motor driven
  • The device is cooled by cooling fan
  • Control via DMX; stand-alone; sound to light via microphone
  • Fixtures available for Light´J; LED PC-Control 512; Light Captain
  • Flicker-free

ROADINGER Flightcase 2x TMH-X5 with Wheels

Trunk case with castors, PRO version

  • With accessory compartment
  • With 2 device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • 4 x castors with 2 locking brakes
  • 4 x built-in stacking trays in the cover
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
