Technical specifications
Weight:31.87 kg
EUROLITE AKKU UP-4 HCL Spot WDMX bk
Power supply:100-240 V AC, 50/60 Hz
Power consumption:37 W
Lamp type:LED lamp
Cooling:Passive convection cooling
Control:Stand-alone; W-DMX by wireless solution; IR remote control
Fixtures available for:Light´J; LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle (1/2 peak):22°
Beam angle (1/10 peak):33°
Housing color:Black
Dimensions:Width: 13.8 cm
Depth: 14.5 cm
Height: 19.1 cm
Weight:2.91 kg
Device
Battery pack type:1 x lithium ion 14.8 V, 6600 mAh, 97.68 Wh
Battery pack:Battery operation up to 8.5h depending on program used
Recharging time 4.5h
Remote control
Battery:1 x button cell 3.0 V CR2025 lithium manganese built-in
Battery pack type:Li-ion 14.8 V, 6600 mAh (97.68 Wh)
Battery operation:8.5 hours
Recharging time:4.5 hours
Battery remote control:CR2025 button cell 3 V
DMX channels:6/8/12
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Wireless signal transmission:2.4 GHz (ISM)
LED type:12 W HCL
LED number:4
Beam angle:22°
Dimensions (L x W x H):145 x 138 x 191 mm
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 8x AKKU UP-4
Maximum load:50 kg
Aluminum profile frames:25 mm
Case handle:2 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:Rubber feet
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Compartment dimensions:16 cm x 15 cm x 15.5 cm
Inside dimensions:66.5 cm x 31 cm x 15.5 cm
Dimensions:Width: 70.5 cm
Depth: 35 cm
Height: 25.5 cm
Weight:8.60 kg
Downloads
Spezifications
All images
NameVersionLanguage
20000041-Images-.zip

EUROLITE Set 8x AKKU UP-4 HCL Spot WDMX bk + Case

EUROLITE

EUROLITE Set 8x AKKU UP-4 HCL Spot WDMX bk + Case

No. 20000041
svg
svg
svg
svg
22°
svg
svg
svg
svg
svg
7 mm
svg
svg

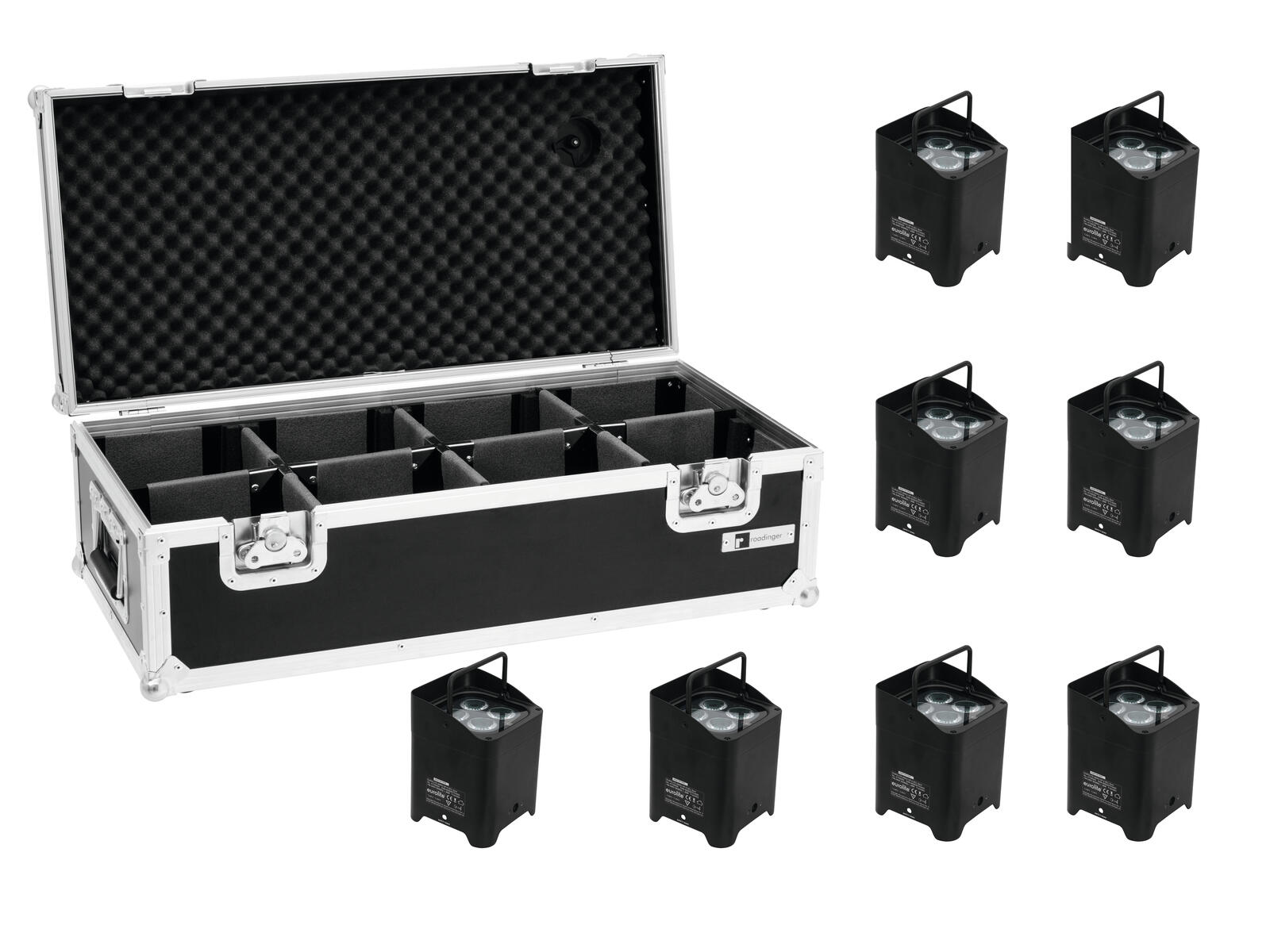

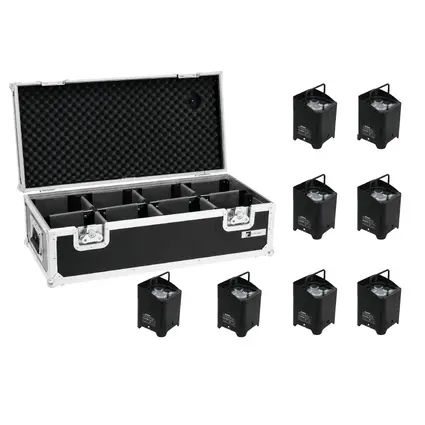

Set consisting of:
mpn41700560
8 x EUROLITE AKKU UP-4 HCL Spot WDMX bk
mpn31005075
1 x ROADINGER Flightcase 8x AKKU UP-4

EUROLITE AKKU UP-4 HCL Spot WDMX bk

LED Uplight with 4 x 12 W 6in1 LED & wireless DMX receiver (Wireless Solution)

  • Compact and bright
  • Equipped with 4 x 12 W HCL (hexacolor LED) in red, green, blue, amber, white and UV
  • With integrated wireless receiver for WDMX operation (Wireless Solution - made in Sweden)
  • Operation via mains connection or built-in rechargeable lithium-ion battery with up to 8.5 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Controllable via EUROLITE IR-7 remote control; included in the delivery
  • With integrated folding foot for angled placement by floor installation
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 6, 8 or 12 DMX channels selectable
  • Functions: static colors, stepless RGBAW+UV color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • Addressing via control panel with 4-digit LED display
  • Switch-mode power supply for operation between 100 and 240 volts
  • Ready for connection via included power cable with safety power plug
  • Feed-through output allows to power up to 8 devices
  • DMX control via any standard DMX controller
  • Available in 2 housing colors: black and white
  • The device is cooled by passive convection cooling
  • Control via stand-alone; W-DMX by wireless solution; IR remote control
  • Flicker-free
  • With a beam angle of 22°

device

  • Cordless, flexible and versatile
  • Battery operation up to 8.5h depending on program used

ROADINGER Flightcase 8x AKKU UP-4

Trunk case, PRO version

  • Cable bushing allows loading the devices inside
  • With 8 device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 25mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • Rubber feet
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
