Technical specifications

Weight:	13.75 kg
EUROLITE LED PAR-56 RGB 5mm Short 5CH sil
Power supply:	230 V AC, 50 Hz
Power consumption:	23 W
Power connection:	Fixed power supply cord with safety plug
Lamp type:	LED lamp
LED type:	151 x 5 mm R/G/B (homogenous color mix)
DMX channels:	5; 3
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512
Beam angle (1/2 peak):	21°
Beam angle:	21°°
Housing color:	Silver
Dimensions:	Width: 20.5 cm Depth: 16.5 cm Height: 24 cm
Weight:	1.45 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase EPS-56 4x PAR-56 Spot short
Maximum load:	25 kg
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 1 pc/pcs
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Compartment dimensions:	22 cm x 22 cm x 24 cm
Inside dimensions:	44 cm x 44 cm x 24 cm
Dimensions:	Width: 48.5 cm Depth: 48.5 cm Height: 31 cm
Weight:	7.95 kg

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000022-Images-.zip

Video link

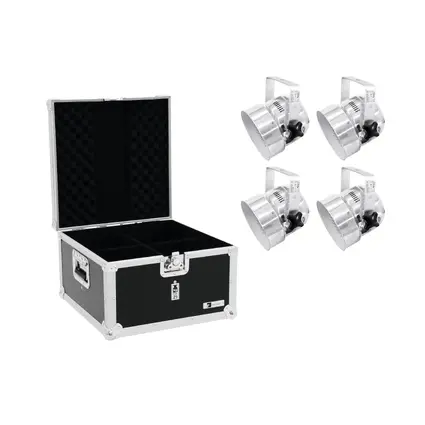

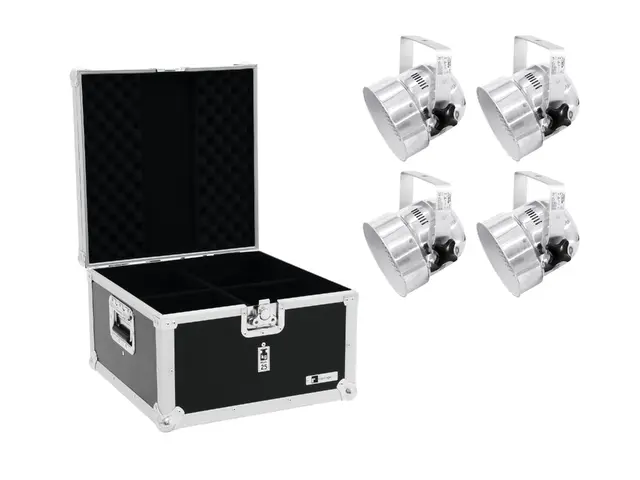

EUROLITE Set 4x LED PAR-56 RGB sil + Case

The article is no longer in our assortment.

No. 20000022

21°

7 mm

Set consisting of:

4 x EUROLITE LED PAR-56 RGB 5mm Short 5CH sil

1 x ROADINGER Flightcase EPS-56 4x PAR-56 Spot short

EUROLITE LED PAR-56 RGB 5mm Short 5CH sil

PAR-56 spot with 151 LEDs in the colors red, green and blue

Equipped with 151 x 5 mm LED: 51 x red, 49 x green, 51 x blue
Operable in stand-alone mode or with DMX interface
DMX-512 control possible via any commercial DMX-controller (occupies 5 channels)
3 or 5 DMX channels selectable for numerous applications
Sound-control via built-in microphone
Adjustable microphone sensitivity via LED display
Comfortable addressing and setting via control panel with LED display and three operating buttons
Functions: static colors; RGB color blend, internal programs, dimmer and strobe settings via DMX; master/slave
Housing available in silver or in black
Locking possibility at the mounting bracket
Ready for connection with power cord and safety plug
151 LEDs 5 mm R/G/B (homogenous color mix)
Strobe effect
Can be operated in 5; 3 CH mode
Control via stand-alone; DMX; sound to light via microphone
With a beam angle of 21°

ROADINGER Flightcase EPS-56 4x PAR-56 Spot short

With 4 device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
1 high-quality butterfly lock
Closes with a
For further information about this product, please refer to the Data Sheet under "Downloads"
