Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
OMNITRONIC WAMS-08BT MK2 Wireless PA System

Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-MainBild
download image
Detail images (6 overall)
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-1
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-2
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-3
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-4
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-5
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)-Bild-6
svg
svg
svg
svg
svg
svg
svg
svg
OMNITRONIC

Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)

OMNITRONIC WAMS-08BT MK2 Wireless PA System

Stock for approx. 12 wk(s)
269,00 €
Save money: This article is available in a bundle.
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 13107006
Print product
Product badge
Here you find the manual and downloads for
OMNITRONIC WAMS-08BT MK2 Wireless PA System
OMNITRONIC WAMS-08BT MK2 cover image

Compact, lightweight and useful:
Mobile PA with battery


The WAMS-08BT MK2 is a portable all-in-one system with rechargeable battery for mobile use. Whether for street musicians, at lectures, family celebrations or in the aerobics group: Thanks to the versatile connection options you are flexible on the road.

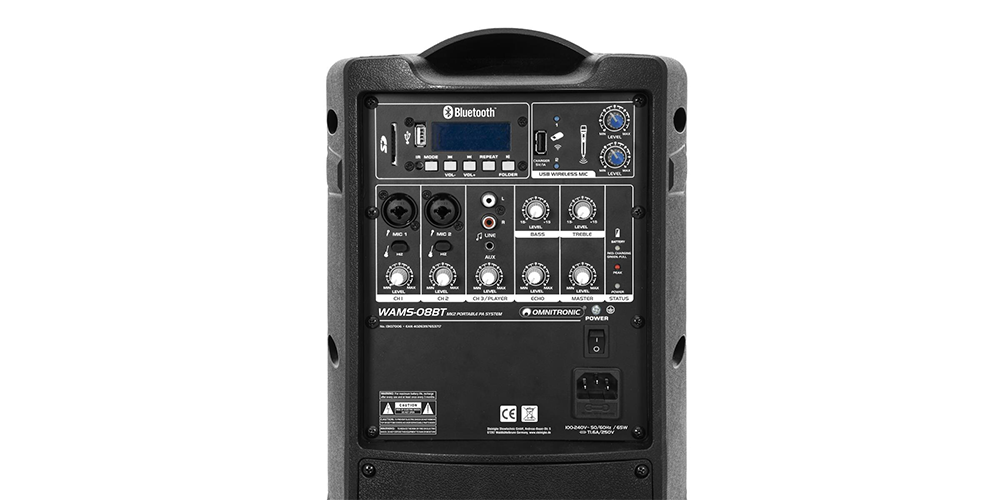

OMNITRONIC WAMS-08BT MK2 connections
The box has a 3-channel power mixer with 40 W RMS power. The 2-way bass reflex system with 20 cm woofer (8") provides powerful sound despite the small size.
The WAMS-08BT MK2 is equipped with an MP3 player with SD card slot and USB connection. Thanks to Bluetooth, you can also play music (for example from your smartphone) wirelessly. You can also use the USB port to connect two optional wireless microphones or charge your mobile devices.
A stereo input channel for line sources (e.g. CD player or notebook) and two mono input channels for an instrument or microphone provide additional flexibility. The 2-band EQ lets you control bass and treble.

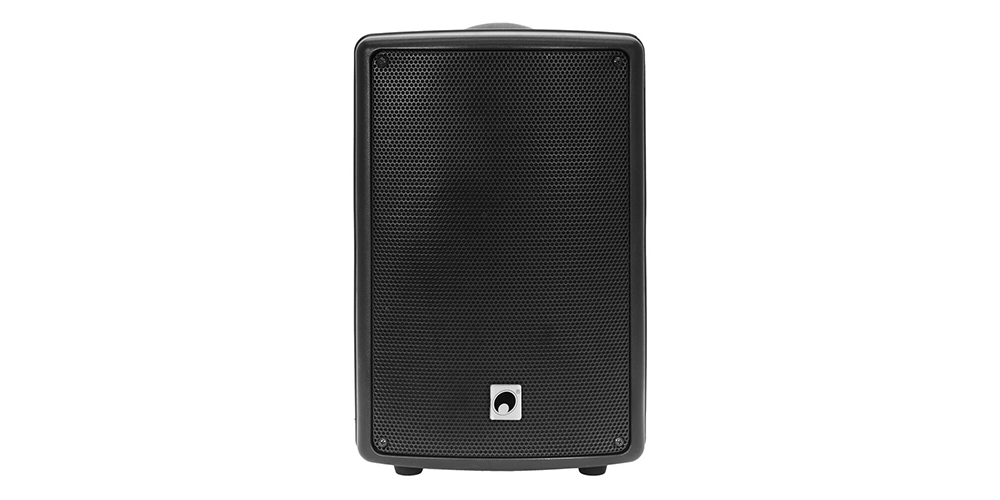

OMNITRONIC WAMS-08BT MK2 connections close-up

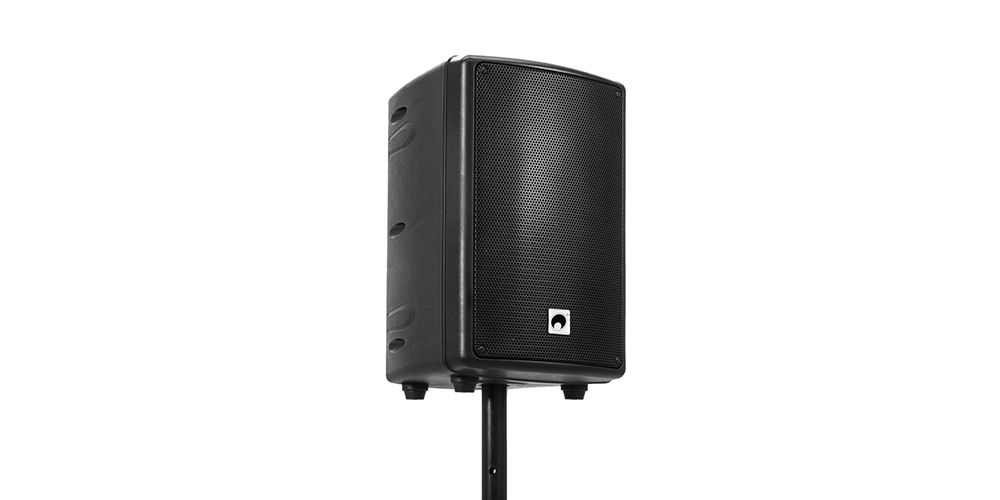

OMNITRONIC WAMS-08BT MK2 front-view
The WAMS-08BT is easy to carry thanks to a carrying handle and weighs only 7 kg. It is prepared for tripod mounting with a mounting flange.

Save money: This article is available in a bundle.
Sets are loaded. Please wait...
Features

Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)

  • Portable all-in-one PA system with 40 watts output power
  • 3-channel power mixer
  • 2-way bass-reflex system
  • UWM-2HH USB dongle with 2 wireless microphones available as accessory
  • USB port can also be used for charging mobile devices
  • 1 additional battery can be retrofitted for up to 8 hours operating time
  • 2 mono input channels mic/hi-Z instrument with adjustable echo effect
  • 1 stereo input channel for line signal sources e.g. CD players and notebooks
  • Common 2-band EQ for highs and lows
  • For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
  • Black metal grille
  • Recessed carrying handle
  • Application possibility: Standing; on stand
  • Battery pack tool-free replacement
  • Integrated automatic charging of the battery and status indicator
  • The device is cooled by passive convection cooling

battery pack

  • Battery operation up to 4h depending on program used
  • Cordless, flexible and versatile

audio player

  • Control via IR remote control; Bluetooth
  • 2.4 GHz license-free worldwide
  • Bluetooth: operating range up to 10m

remote control

  • Operating range up to 10m

Package contents

  • 1 x compact cabinet speaker, 1 x power cord, 1 x battery pack, 1 x remote control, 1 x battery, 1 x user manual, 1 x declaration of conformity
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Or
12 V DC
Power consumption:65 W
IP classification:IP20
Protection class:Protection class I
Output power:40 W RMS
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack
Frequency range:50 - 18000 Hz
THD:<0,1 % at 1 kHz
Sensitivity:90 dB (1W/1m)
Max. SPL:106 dB
Cooling:Passive convection cooling
Housing color:Black
Attachment system:Flange: Ø 35mm
Control elements:Echo effect control, audio player
Status LED:Power, peak, microphone, charge status indicator, pairing
Connections:Input: Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x stereo RCA
Input: stereo via 1 x 3.5 mm jack (stereo) mounting version
Input: 1 x USB A (F) mounting version
Channels:Microphon chanal: 2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial
Input chanel: 1 x stereo via RCA or jack plug or player, channel control via rotary dial
Input chanel: 2 x mono via radio, channel control via rotary dial
Master output: mono, channel control via rotary dial, 2-band tone control EQ
Speaker:1 x woofer 8"
Basket material: steel
Conematerial: cardboard/paper
1 x tweeter
USB port:Type A
Type of speaker:Compact cabinet speaker; wireless PA system
Recessed carrying handle:1 pc/pcs
Material:ABS Acrylonitrile butadiene styrene
Color:Black
Dimensions:Width: 27 cm
Depth: 29 cm
Height: 42 cm
Weight:7,75 kg
Battery pack
Battery pack type:1 x lithium ion 11,1 V, 4000 mAh, 44,4 Wh
Battery pack:Battery operation up to 4h depending on program used
Recharging time 4h
Audio player
Control:IR remote control; Bluetooth
Bluetooth device name:WAMS-08BT MK2
Audio player:USB + SD + Bluetooth
Range:Bluetooth: range up to 10m
Frequency band:2.4 GHz
Music format:MP3, WMA; WAV
Available storage media:USB devices/SD cards max. 32GB (FAT 32)
Remote control
Battery:1 x button cell 3.0 V CR2025 lithium manganese built-in
Range:Range up to 10m
Packaging units
PUEANWeightDimensions
140263976537178,50 kg32cm x 32cm x 48cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Front grille WAMS-08BT MK2
E6510482
Woofer 8" 8Ohm WAMS-08BT MK2
E6510483
Driver 1" 8Ohm (Tweeter) WAMS-08BT MK2
More 10 spare parts
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/Produktanfrage
Safety instructions and warnings
Specific safety instructions that apply to the product can be found in the operating instructions for the product.
