Technical specifications

Type:	Wireless set
Number of channels:	2
Frequency range:	50 - 15000 Hz
THD:	<0.1 % at 1 kHz
Impedance:	600 Ohm
Range:	Range up to 30m in the open air Range up to 20m in buildings
Frequency band:	2.4 GHz
RF power output:	10 mW
Frequency selection:	16 switchable frequencies
Connections:	Output: microphone via 1 x 6.3 mm plug (unbal.)
Switch:	On/off switch
Material:	Plastic
Weight:	0.89 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12V DC
Power consumption:	2.7 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Housing design:	Desktop console housing
Microphone
Power supply:	3V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x 1.5 V AA Mignon R06 zinc carbon included
Dimensions:	Length: 26.0 cm Diameter: Ø 5.5 cm
Weight:	0.217 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603552	1,20 kg	30,5cm x 35,5cm x 7,5cm
10	4026397604757	13,10 kg	63cm x 37,2cm x 40cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
13072003-Images-.zip

OMNITRONIC WM-224 2-Channel Wireless Microphone System 2.4GHz

The article is no longer in our assortment.

No. 13072003

microphone 5.5 cm

Digital 2-channel wireless microphone system, 2.4 GHz

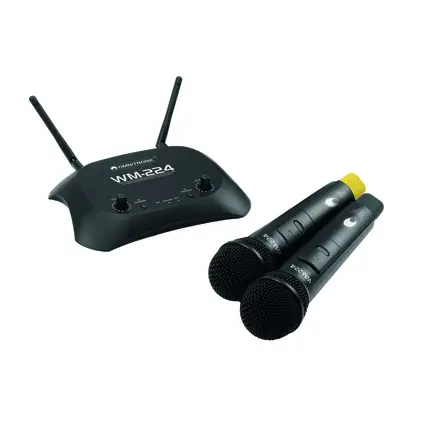

Wireless microphone system includes receiver unit and 2 hand-held microphones with integrated PLL transmitter
Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality
2 channels with separate level control
Quick pairing at the touch of a button
16 frequencies (2,404-2,474 MHz) for each channel can be selected at the receiver
6.3 mm jack output for mixed signal
Incl. power unit and jack cable
License-free and approved in the EU
Operating range up to 30m in the open air
Operating range up to 20m in buildings
2.4 GHz license-free worldwide
