Technical specifications

Type:	Hand-held transmitter
Power supply:	3V DC 118 mA
Capsule type:	Dynamic Size: Ø 2.54 mm
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 16000 Hz
Sensitivity:	-54 dB
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 522 - 554 MHz
Switching bandwidth:	34 MHz
Parallel mode:	Max. 12 transmitter
RF power output:	20 mW (LO); 30 mW (HI)
Latency:	< 3 ms
Modulation:	FM
Housing color:	Black
Display type:	Multicolor LCD display
Display reading:	Frequency , charge status indicator , Mute , RF signal level
Material:	Metal
Dimensions:	Length: 25.9 cm Diameter: Ø 4.95 cm
Weight:	0.35 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397738742	0,40 kg	27cm x 6cm x 6cm
40	4026397748581	16,80 kg	59,5cm x 31cm x 32,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
13063607-Images-.zip

OMNITRONIC UHF-600 Handheld Microphone 520-554 MHz

Name: OMNITRONIC UHF-600 Handheld Microphone 520-554 MHz
Brand: OMNITRONIC
SKU: 13063607
Price: 49.90 EUR
Availability: InStock

Stock for approx. 4 wk(s)

49,90 €

Find a dealer

Stock for approx. 4 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 13063607

4.95 cm

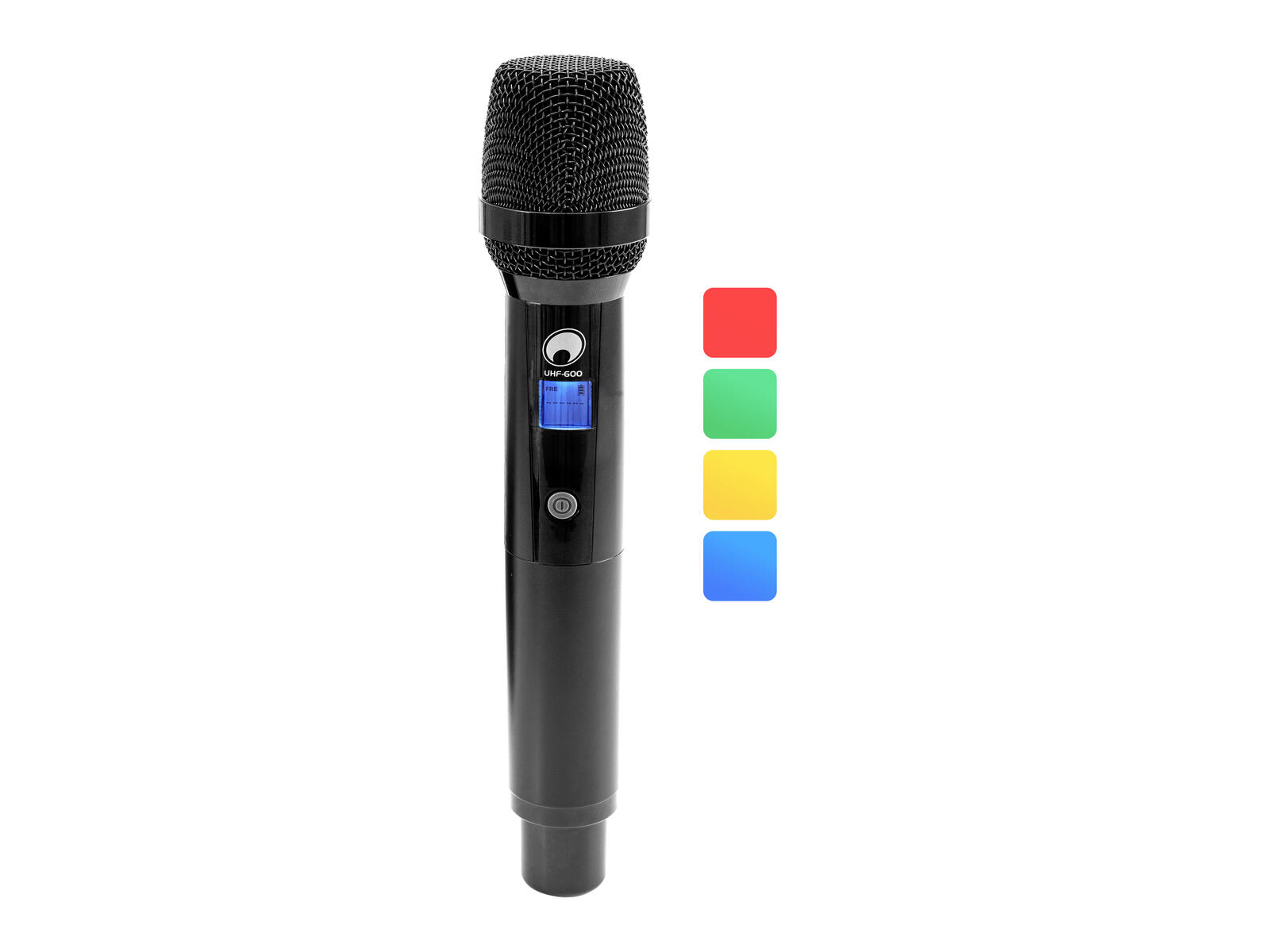

Hand-held microphone for UHF-600 receivers

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Easy and error-free synchronization between receiver and transmitter via infrared signal
Polar pattern: Cardioid
Powered by a battery/battery pack
Operating range up to 60m with line-of-sight
Up to 12 transmitters can be operated in parallel without interference
Ultra-low latency
Multicolor LCD display
Charge status indicator

Technical specifications
