Technical specifications

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1500 mA
Power consumption:	6 W
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	30 - 19000 Hz
S/N ratio:	>112 dB
THD:	<0.5 % at 1 kHz
Range:	Range up to 200m
Frequency band:	UHF 470 - 510 MHz
Diversity:	True diversity
Switching bandwidth:	40 MHz
Frequency stability:	± 0.001 %
Parallel mode:	Max. 28 transmitter
Frequency selection:	Frequencies automatically scannable
Housing color:	Black
Display type:	Multicolor TFT display
Display:	Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute
Control elements:	Power switch, encoder, exit, sync button
Status LED:	Power

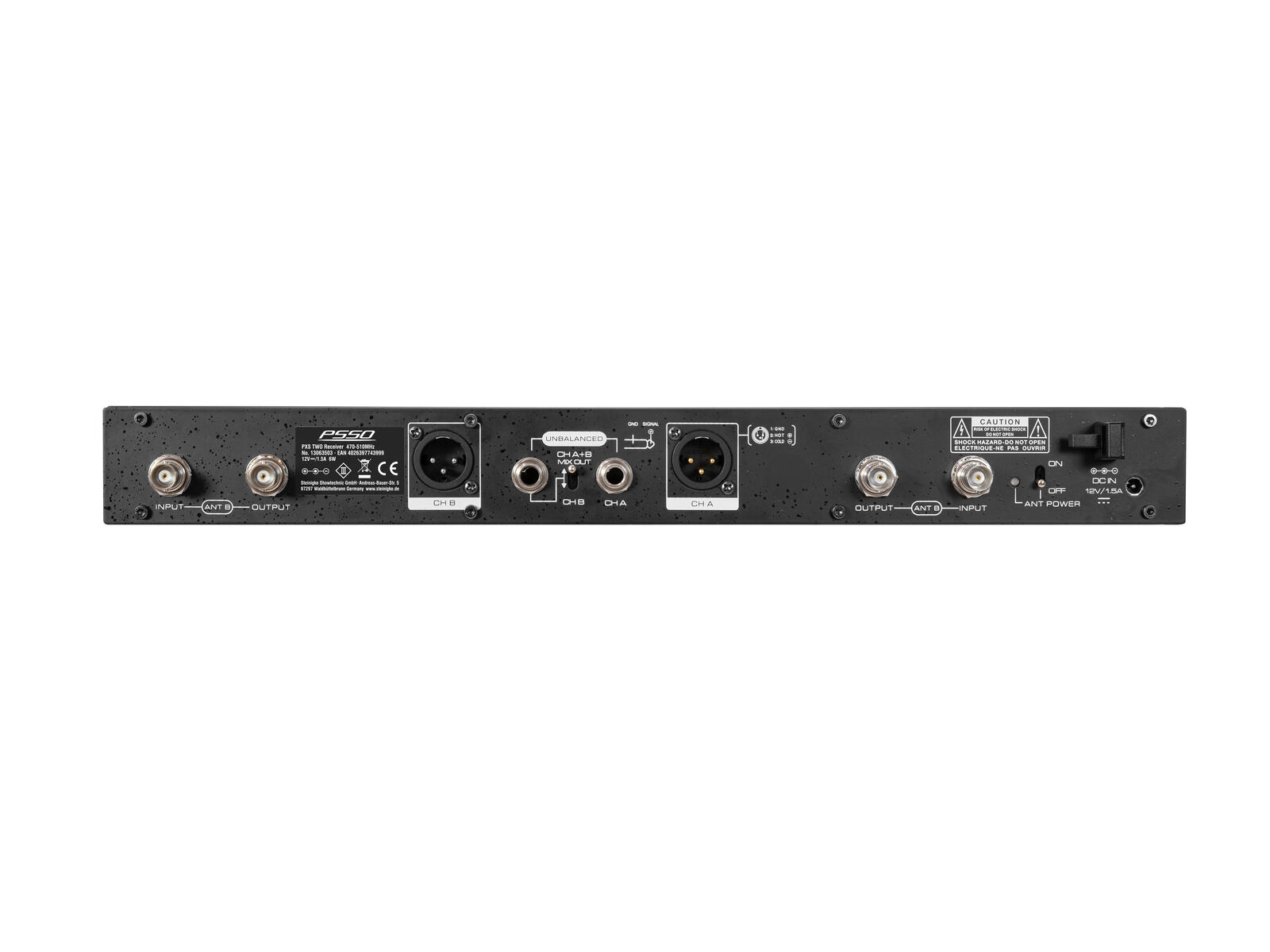

Connections:	Input: antenna via 2 x BNC (F) 11.54 V Output: antenna via 2 x BNC (F) Output: microphone via 2 x 6.3 mm plug (unbal.) Output: microphone via 2 x 3-pin XLR (M) mounting version
Equalizer:	3-band tone control
USB port:	2 x type C
Material:	Metal
Mounting dimensions:	27 cm x
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.1 cm Depth: 27 cm Height: 4.5 cm
Weight:	2.88 kg
Jack cable
Dimensions:	Length: 100 cm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397743999	3,50 kg	53,5cm x 41cm x 7cm
5	4026397744743	18,70 kg	54,5cm x 43cm x 38,5cm

Spare parts

Antenna PXS TWO 2-Channel True Diversity Receiver (470-510 MHz)

Power Supply 12V/1500mA DC PXS TWO 2-Channel True Diversity Receiver

Antenna Cable PXS ONE/TWO True Diversity Receiver

Pcb (Control) PXS TWO 2-Channel True Diversity Receiver 470-510 MHz

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
13063503-Images-.zip

Publications

Move Magazine #1/2025 E

On page: 66

Size: 22 MB

PSSO PXS TWO 2-channel True Diversity Receiver 470-510 MHz

Name: PSSO PXS TWO 2-channel True Diversity Receiver 470-510 MHz
Brand: PSSO
SKU: 13063503
Price: 499.00 EUR
Availability: OutOfStock

License-free true diversity wireless receiver with auto scan, 3-band EQ & TFT color displays-MainBild

License-free true diversity wireless receiver with auto scan, 3-band EQ & TFT color displays-Bild-1

PSSO PXS TWO 2-channel True Diversity Receiver 470-510 MHz

delivery date unknown

499,00 €

Find a dealer

delivery date unknown

List price excl. 19% VAT
Prices in retail stores may vary.

No. 13063503

1 U

License-free true diversity wireless receiver with auto scan, 3-band EQ & TFT color displays

Professional multifrequency wireless receiver with true diversity reception for stage use
High-grade components and intelligent features ensure best performance and high reliability
Ideal for large multi-channel systems
Automatic frequency setup
Spectrum analysis to identify interference frequencies
Multifunctional jogdial for menu settings
2 detachable BNC antennas allow for use with external antenna divider
(19") 48.3 cm rack installation 1 U
Operating range up to 200m
Up to 28 transmitters can be operated in parallel without interference
Multicolor TFT display
Charge status indicator

Technical specifications

Spare parts

Downloads

Manufacturer information

Scope of delivery
