Technical specifications

Type:	Bodypack with microphone
Frequency range:	40 - 18000 Hz
S/N ratio:	>105 dB
Frequency band:	UHF 863 - 865 MHz
Carrier frequency:	864.1 MHz
Frequency selection:	Fixed frequencies
Connections:	Input: microphone via 3.5 mm jack (mono) mounting version
Weight:	0.10 kg
Transmitter
Power supply:	3V DC
Power connection:	Battery/battery pack
Battery:	2 x Mignon (AA) (not included)
Range:	Range up to 50m
Material:	Plastic
Dimensions:	Width: 2.5 cm Depth: 6.5 cm Height: 19.0 cm
Weight:	0.075 kg
Microphone
Cable length:	0.95 m
Capsule type:	Condenser
Polar pattern:	Cardioid
Color:	Black
Weight:	0.021 kg
RF power output:	5 mW
Modulation method:	F3E
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603927	0,14 kg	18,5cm x 13cm x 3,5cm
100	4026397606362	15,30 kg	68cm x 39cm x 39cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
13063287-Images-.zip

OMNITRONIC UHF-100 BP Bodypack 864.1MHz (grey)

The article is no longer in our assortment.

No. 13063287

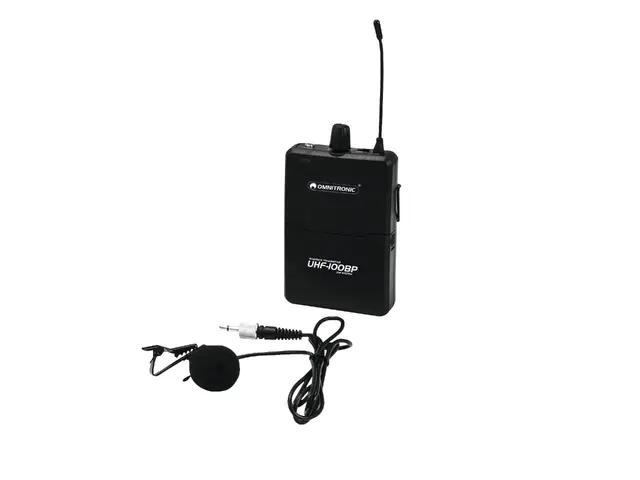

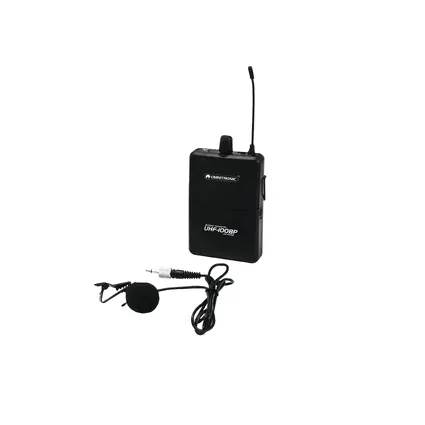

Bodypack transmitter with lavalier microphone

Pocket transmitter as UHF PLL system, matching UHF-100 receivers
Incl. lavalier microphone
Sensitivity adjustable
Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
UHF 863 - 865 MHz License-free and approved in Europe

transmitter
