Technical specifications
Type:Wireless set
Number of channels:1
Frequency range:40 - 18000 Hz
S/N ratio:>105 dB
THD:<0.5 % at 1 kHz
Frequency band:UHF 823 - 832 MHz
Carrier frequency:828.250 MHz
RF power output:10 mW
Modulation:F3F
Frequency selection:Fixed frequencies
Connections:Output: microphone via 1 x 3-pin XLR
Output: microphone via 1 x 6.3 mm plug (unbal.)
Housing design:(19") 48.3 cm rack installation possible
Weight:0.72 kg
Receiver
Power supply:100-240 V AC, 50/60 Hz
12V DC 500 mA
Power consumption:1.75 W
Power connection:Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Microphone
Power supply:3V DC
Power connection:Battery/battery pack
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Range:Range up to 60m
Switch:On/off switch; mute control
Material:Plastic
Dimensions:Length: 26.5 cm
Diameter: Ø 5 cm
Weight:0.185 kg
Packaging units
PUEANWeightDimensions
140263975335691,10 kg40cm x 34cm x 7cm
10402639753357612,20 kg71cm x 43cm x 40cm
Spare parts
E6506612
Antenna UHF-201/202
E6507187
jack mounting socket 6.3mm 3-pin plastic MP120
E6505805
Panel plug XLR (Socket) Pins gebogen
E0199903
Power socket 2-pin bent supply input
LED 3mm green
E6508723
housing part (base) UHF-201/202
E6508724
housing part (cover) UHF-201/202
E6508725
housing part (front frame) UHF-201/202
E6508736
Knob (Level) UHF-201/202 black
E6508850
Housing part (with Layout) UHF-201 (Front) silver

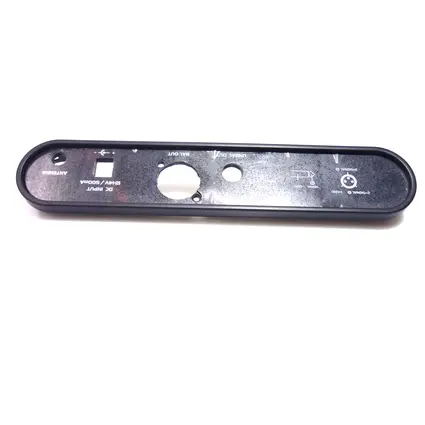

E6508851
Housing part (connections) UHF-201 (back) black
E6509076
Quarz 828,250 MHz UHF-204 big
Downloads
Spezifications
NameVersionLanguage
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
All images
NameVersionLanguage
13063232-Images-.zip
...
Audio
 / Microphones
 / Wireless microphones

OMNITRONIC UHF-201 Wireless Mic System 828.250MHz

Wireless microphone system with UHF PLL technology-MainBild
Double tap or pinch to zoomHover to zoom
Bildergalerie öffnen
Detail images (4 overall)
Wireless microphone system with UHF PLL technology-Bild-1
Wireless microphone system with UHF PLL technology-Bild-2
Wireless microphone system with UHF PLL technology-Bild-3
Wireless microphone system with UHF PLL technology-Bild-4
OMNITRONIC

OMNITRONIC UHF-201 Wireless Mic System 828.250MHz

The article is no longer in our assortment.
No. 13063232
svg
svg
microphone 5 cm

Wireless microphone system with UHF PLL technology

  • Receiver unit and hand-held microphone with UHF PLL technology
  • Operation in the low-interference UHF band
  • Parallel operation of up to 4 sets is possible without any interference
  • Volume control
  • XLR and 6.3 mm output
  • Jack cable included
  • LEDs for power, carrier and audio signal
  • Microphone with mute switch and color indication
  • Matching pocket transmitter can be ordered separately
  • Operation in the Duplex Gap 823-832 MHz
  • License-free in Germany and 13 other countries
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • (19") 48.3 cm rack installation possible

microphone

  • Polar pattern: Cardioid
  • Operating range up to 60m
