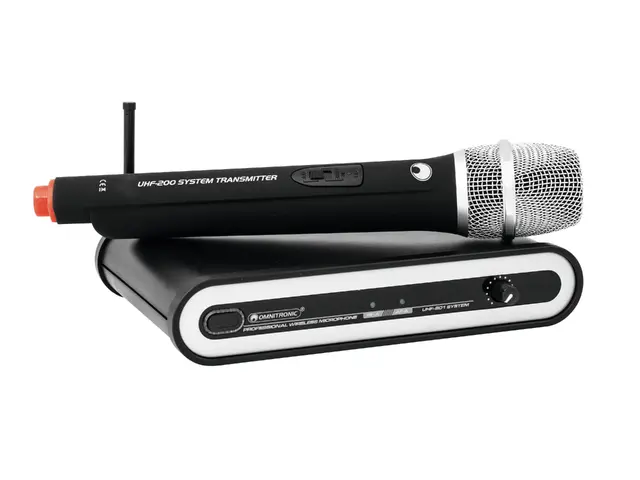

Wireless microphone system with UHF PLL technology
Package contents
Type: | Wireless set |
Power consumption: | 10,00 W |
Capsule type: | Dynamic |
Polar pattern: | Cardioid |
Frequency range: | 40 - 18000 Hz |
Frequency band: | UHF 863 - 865 MHz |
Frequency selection: | Fixed frequencies |
Dimensions: | Width: 21 cm Depth: 4,5 cm Height: 15,5 cm |
Weight: | 720 g |
Microphone | |
Battery: | 2 x Mignon (AA) (not included) |
System: | Non-Diversity |
Carrier frequency: | 863.010 MHz |
Coverage: | 50 m (with line-of-sight) |
RF power output: | 10 mW |
Modulation method: | F3F |
S/N ratio: | >105 dB |
Selectivity: | >80 dB |
T.H.D.: | <0.5 % at 1 kHz |
Audio outputs: | 400 mV, 2.2 kohms (XLR, bal.) |
200 mV, 2.2 kohms (6.3 mm jack, unbal.) | |
Power supply | |
Receiver: | 100-240 V AC, 50/60 Hz via supplied power unit |
Dimensions, weight: | |
Receiver: | 155 x 210 x 45 mm (W x D x H), 1 kg |
Microphone: | 50 x 265 mm (D x L), 280 g |
PU | EAN | Weight | Dimensions |
---|---|---|---|
1 | 4026397477610 | 1,10 kg | 40,5cm x 34cm x 7cm |
10 | 4026397481723 | 12,20 kg | 72cm x 43cm x 39cm |
