300 W AES LF/60 W AES HF, 8 ohms LF/8 ohms HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF

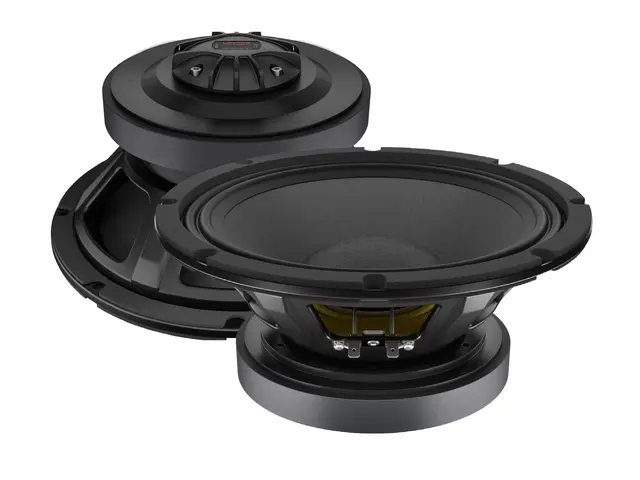

LAVOCE CSF102.50K 10" Coaxial Speaker, Ferrite, Steel Basket Driver

Name: LAVOCE CSF102.50K 10" Coaxial Speaker, Ferrite, Steel Basket Driver
Brand: LAVOCE
SKU: 12603022
Price: 209.00 EUR
Availability: InStock

300 W AES LF/60 W AES HF, 8 ohms LF/8 ohms HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF-MainBild

300 W AES LF/60 W AES HF, 8 ohms LF/8 ohms HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF-Bild-1

300 W AES LF/60 W AES HF, 8 ohms LF/8 ohms HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF

LAVOCE CSF102.50K 10" Coaxial Speaker, Ferrite, Steel Basket Driver

Stock for approx. 12 wk(s)

209,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 12603022

Print product

Product badge

Here you find the manual and downloads for
LAVOCE CSF102.50K 10" Coaxial Speaker, Ferrite, Steel Basket Driver

Features

300 W AES LF/60 W AES HF, 8 ohms LF/8 ohms HF, 97 dB LF/105 dB HF, 65-4000 Hz LF/1000-20000 Hz HF

For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x speaker

Technical specifications

Power:	Program: 600W LF Rated: 300W AES LF Program: 120W HF Rated: 60W AES HF
Frequency range:	65 - 4000 Hz LF 1000 - 20000 Hz HF
Sensitivity:	97 dB LF; 105 dB HF
Impedance:	8 ohms LF; 8 ohms HF
Speaker:	Woofer 10" with shared ferrit magnet with dual demodulating rings Basket material: steel Conematerial: weatherproof Cardboard/paper Voice coil lows 2,5" Diaphragmmaterial: Polymide Compression tweeter highs 1" Voice coil compression tweeter highs 1,7"
Weight:	4,90 kg
