Big sound in small package, mounting bracket included

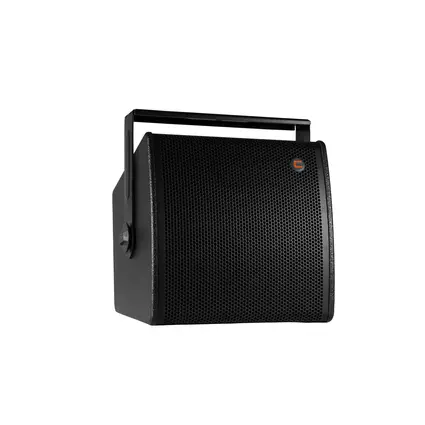

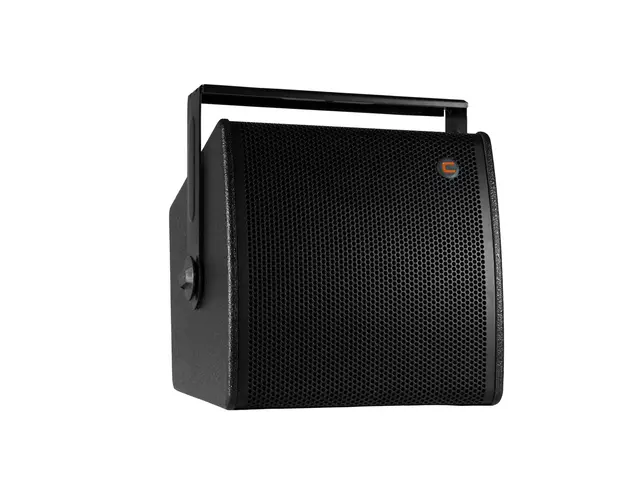

CELTO ACOUSTIQUE iFIX10+ 2-Way Coaxial Speaker black

The article is no longer in our assortment.

Check out the alternatives:

Item no. 11043618

Features

Big sound in small package, mounting bracket included

Real 300 W power handling with high-end sound quality
HSP annular compression driver for unmatched spatial coherence
Audiophile grade crossover with right phase topology
High efficiency for incredible SPL to size ratio
HF compression driver with ketone polymere dome
Birch multiplex cabinet with tongue and groove assembly
Suitable for near-sound-field insonation with subwoofer (iFix13S or iFix17S) in fixed installations
Available in various colors
For application areas such as: Theater; sports centres/gyms; Clubs/dancing school; restaurants, bars and hotels
With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with Mounting bracket
Any RAL color available on request

Package contents

1 x top, 1 x nut, 6 x washer, 1 x safety eyelet, 1 x mounting bracket, 2 x knurled screw, 2 x screw

Technical specifications

Power:	Program: 600W Rated: 300W AES
Frequency range:	95 - 22000 Hz
Sensitivity:	97 dB (1W/1m)
Max. SPL:	128 dB
Dispersion angle:	90° x 90°
Impedance:	8 ohms
Attachment system:	Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Mounting bracket
Connections:	Input: screw plug-in terminal
Crossover frequency:	Passive 1500 Hz on LF & HF Recommended High-pass 90-120 Hz, 24db/oct with iFIX13S or iFIX17S subwoofer In subwoofer combination
Speaker:	1 x woofer 10" with ferrit magnet PEEK (H.T. polymer) Voice coil lows 2,5" 1 x Annular compression driver 1" Voice coil compression tweeter highs 1,7"
Type of speaker:	On-ceiling/on-wall speaker; Coaxial speaker
Type of construction:	Closed Box
Material:	Birch multiplex, CNC made with tongue and grove assembly
Color:	Black, painted; , textured coating; any RAL color available on request
Dimensions:	Width: 30 cm Depth: 30,4 cm Height: 30 cm
Weight:	12,5 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397688221	14,90 kg	40cm x 39cm x 43cm

Support

Spare parts

No spare parts available.
