Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	60 W
Capsule type:	Dynamic
Frequency range:	50 - 20000 Hz
Speaker:	1 x woofer 10"
Dimensions:	Width: 47.5 cm Depth: 31.5 cm Height: 32.5 cm
Weight:	18.40 kg
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Microphone
Battery:	4 x Mignon (AA) (not included)
Amplifier power:	2 x 75 W RMS at 4 ohms
Speaker systems:	25 cm speaker (10"), 25 mm tweeter (1")
Sensitivity:	96 dB
Maximum SPL:	124 dB
Storage media:	USB devices and SD(HC) cards up to 32 GB (FAT32)
Inputs:
MIic/line, mono	2 x combination XLR/6.3 mm jack
Line, stereo	1 x stereo RCA/6.3 mm jack L/R
Outputs:
Record:	1 x stereo RCA
Speakers:	6.3 mm jack
Dimensions (H x W x D):	475 x 315 x 325 mm
Wireless microphones:
Carrier frequency:	863.3 MHz, 865 MHz
Frequency stability:	±0.005 %
RF power output:	10 mW
Polar pattern:	omnidirectional
Range:	approx. 30 m
Dimensions (D x L):	40 x 260 mm
Bluetooth:
Carrier frequency:	2.4 GHz
Range:	approx. 10 m

Packaging units

PU	EAN	Weight	Dimensions
1	4026397511604	22,30 kg	66cm x 39,5cm x 57,5cm
2	4026397518184	45,00 kg	64,5cm x 37cm x 53,5cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
11038896-Images-.zip

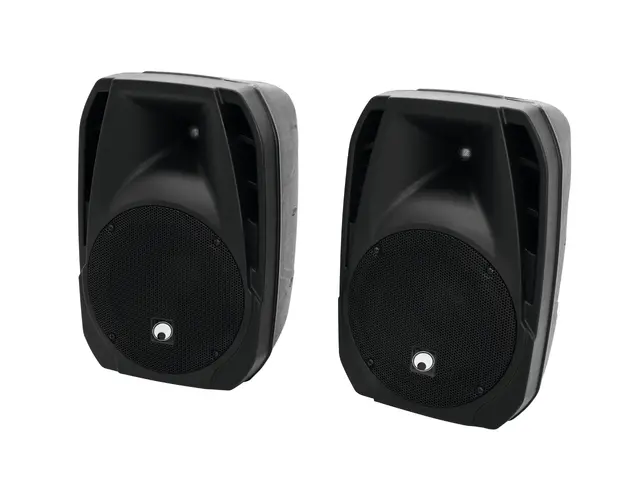

OMNITRONIC COMBO-150BT Active PA System

The article is no longer in our assortment.

Check out the alternatives:

No. 11038896

Portable 150 W PA system with 2 UHF receiver units, audio player and Bluetooth

Ultra-portable all-in-one PA system for mobile live and DJ applications
Detachable 6-channel power mixer with built-in MP3 player
Dual Class D amplifier (2 x 75 W RMS) with SMPS
Fanless design for low-noise operation
2 full-range speaker systems, each with 25 cm woofer and 25 mm tweeter, bass reflex system and flange for speaker stands
MP3 player with Bluetooth receiver and IR remote control
SD card slot and USB input
Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
4 mono input channels mic/line with +15 V phantom power
2-band EQ and gain control per channel
1 stereo Aux input for line signal sources e.g. CD players
Digital reverb with variably adjustable parameters (time and depth)
Recording output
Integrated UHF receiver units and 2 matching wireless microphones
Convenient accessory compartment
Delivery includes 2 speaker cables and power cable
