Portable active PA system
OMNITRONIC PAM-500 Active PA system

Portable active PA system

OMNITRONIC PAM-500 Active PA system

The article is no longer in our assortment.

No. 11038890

Here you find the manual and downloads for
OMNITRONIC PAM-500 Active PA system

The PA in a suitcase!
The telephone has a portable equivalent: the mobile. Concerning computers, there are notebooks. And within the scope of PA-Systems such an euqivalent exists as well: the portable sound system. In this case we are takling about the PAM-500: a combination of an ampliefier, a mixer and speakers. The real outstanding thing about it is its ingenious transport solution. It only takes a few pulls and the three components are combined, so that the system can be easily carried in an oversized suitcase, which is also equipped with an telescopic handle and four little wheels. Also not to be scoffed at: the integrated 10-band-equalizer, the 3-fold, separate tone-control and the mixer with six channels.

Features

Portable active PA system

Combines a modern design with ultimate PA power
Easy transportation in a suitcase with telescopic handle, 4 wheels, 2 brakes and transport handle
The system includes all components needed for an exclusive presentation at industry-events, fairs etc.
Delivery includes 2 XLR-XLR microphone cables, 2 dynamic microphones, 2 jack-jack speaker-cables, power cord

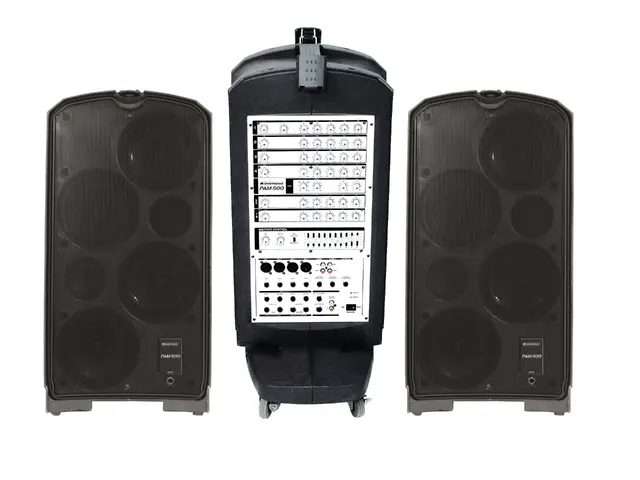

Power tower with 6-channel mixer, power amplifier and two detachable speaker-systems
Connection of up to four cabled mics
Connection of further Line-signals via two stereo-channels (RCA or jack), e.g. for playback of multi-media applications from PC, notebook or portable MP3 player
Channel 1 with voice priority function for automatic attenuation of the other channels
3-fold, separate tone control (bass, middle, treble) for each channel
Adjustable echo effect or aux level for each channel
Aux send and aux return sockets for integrating external effector and for monitoring
Pan or balance control for each channel
Stereo master control for adjusting the output level and for balance control
Integrated 10-band equalizer for fine-tuned sound
Preamp master send and master return for integrating external equalizer
Master stereo/monitor switch for switching from stereo operation to 2-mono operation
Possibility for separately controllable monitor-output (mono)
Recording ouptut for connecting recording devices (PC, Laptop, MD recorder)
Recording ouptut independent from master level for records with static level
Four 15 cm broadband speakers (6") per system
With bass-reflex system
Scratch-resistant surface
Impact-resistant steel grille
With flange for speaker stand installation etc.
Power amplifier with latest switch mode power supply
Advantages in low weight and little space due to switch mode power supply instead of large and heavy transformers
High efficiency, operation via safety power outlet
Power supply adaption between 100 and 240 Volts via voltage selector
Power supply with softstart

Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	150,00 W
Output power:	Max. 120 W
Dimensions:	Width: 76 cm Depth: 84,5 cm Height: 33 cm
Weight:	31,90 kg
General:
Components:	4 x 15 cm speaker (4 x 6")
Dimensions (H x W x D):	760 x 845 x 330 mm
Control unit:
Inputs:
4 mono	XLR or balanced 6.3 mm jacks
2 stereo	RCA or 6.3 mm jacks
1 Aux-Return	balanced 6.3 mm jack
Footswitch	6.3 mm jack
Outputs:
2 Main Out:	balanced 6.3 mm jacks
1 Aux Send:	balanced 6.3 mm jack
Rec Out	RCA
Amplifier:
Nominal power output:	60 W RMS / 4 ohms
Maximum power output:	120 W / 4 ohms
Distortion:	0.05 %
S/N-ratio:	>80 dB
Frequency range:	20-20000 Hz, ±1 dB

Packaging units

PU	EAN	Weight	Dimensions
1	4026397198799	35,00 kg	84cm x 38cm x 76cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

No spare parts available.

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
