2-way stage monitor

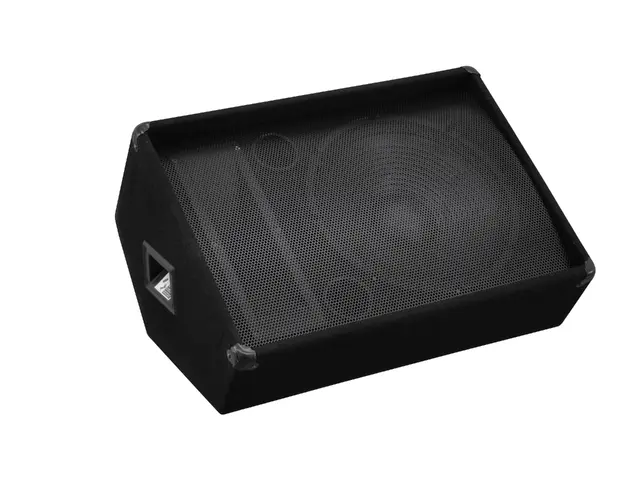

OMNITRONIC M-1520 Monitor 800W

2-way stage monitor-MainBild

OMNITRONIC

2-way stage monitor

OMNITRONIC M-1520 Monitor 800W

The article is no longer in our assortment.

No. 11038015

Here you find the manual and downloads for
OMNITRONIC M-1520 Monitor 800W

Features

2-way stage monitor

Rugged 2-way speaker-system in a stable wooden housing
Large mid-range horn with coil-driver for balanced mids
With passive 2-way crossover
Powerful, dry bass via voluminous housing and bass-reflex tubes
Horizontal loudspeaker alignment
Very high durability
Scratch-resistant, black felt-covering
Strong protective grille for perfect protection
With stable protective steel corners

Technical specifications

Power:	Program: 800W Rated: 400W RMS
Frequency range:	30 - 18000 Hz
Speaker:	1 x woofer 15"
Type of speaker:	Stage monitor
Dimensions:	Width: 48 cm Depth: 66.5 cm Height: 33.5 cm
Weight:	16.00 kg
Components:	38 cm woofer (15"), horn
Connection:	2 Speaker sockets
Sensitivity:	97 dB
Impedance:	8 ohms
Dimensions (H x W x D):	480 x 665 x 335 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397195996	17,30 kg	50,5cm x 36cm x 70cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

E0197838

Driver for Tweeter M-1520

E0197510

Woofer 15" 8Ohm BX-1550 TX-1520/30

E0197621

Horn TX-1520/2520

More 1 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
