Full-Range speaker-system for disco or live music with 12" woofer and 700 W power

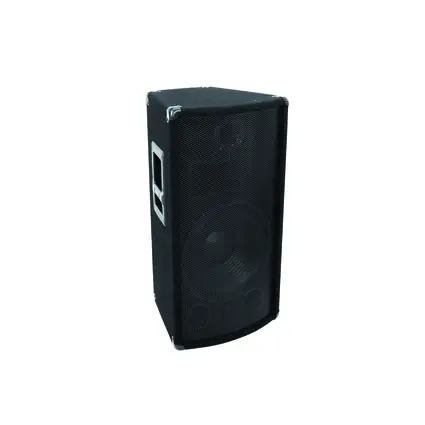

OMNITRONIC TX-1220 3-Way Speaker 700W

Full-Range speaker-system for disco or live music with 12" woofer and 700 W power-MainBild

Full-Range speaker-system for disco or live music with 12" woofer and 700 W power-Bild-1

Full-Range speaker-system for disco or live music with 12" woofer and 700 W power

OMNITRONIC TX-1220 3-Way Speaker 700W

The article is no longer in our assortment.

Item no. 11037635

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC TX-1220 3-Way Speaker 700W

The OMNITRONIC TX-series
Enormous performance at an excellent sound: this is one feature of the TX-series of OMNITRONIC's speaker series. The mounting of the subwoofer is very hard and convinces even under hard usage with a powerful bass. The bass reflex system supports the voluminous effect of this speaker series enormously. Suitable for stage use, song performance and discotheques.

Features

Full-Range speaker-system for disco or live music with 12" woofer and 700 W power

Rugged 3-way speaker-system in a stable wooden housing
Tweeter with coil-driver for powerful treble
Large mid-range horn with coil-driver for balanced mids
With passive 3-way crossover
Powerful, dry bass via voluminous housing and bass-reflex tubes
Very high durability
Scratch-resistant, black felt-covering
With stable protective steel corners
2 Rugged carrying handles
For application areas such as: Mobile djs / entertainer; clubs/dancing school
Black metal grille
Application possibility: Standing; on stand
For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x user manual, 1 x compact cabinet speaker, 4 x foot, 4 x screw

Technical specifications

Power:	Program: 700W Rated: 350W RMS
Frequency range:	40 - 18000 Hz
Sensitivity:	96 dB (1W/1m)
Impedance:	8 ohms
Attachment system:	Flange: Ø 35mm
Connections:	Input: speaker via 2 x speaker built-in socket (F)
Speaker:	1 x woofer 12" 1 x horn 1 x tweeter
Type of speaker:	Compact cabinet speaker
Carrying handle:	2 pc/pcs
Dimensions:	Width: 36 cm Depth: 34,5 cm Height: 69 cm
Weight:	13,90 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397101102	16,40 kg	38cm x 37,5cm x 71cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

frontgrille TX-1220

Driver for midrangehorn TX-1220

Crossover TX-1520/1220/2520 TMX

More 9 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
