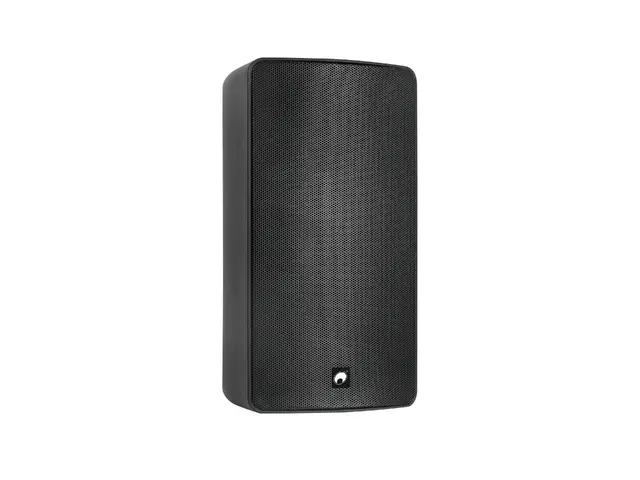

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS
OMNITRONIC ODP-208T Installation Speaker 100V black

Name: OMNITRONIC ODP-208T Installation Speaker 100V black
Brand: OMNITRONIC
SKU: 11036960
Price: 269.00 EUR
Availability: InStock

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS-MainBild

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS-Bild-1

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS

OMNITRONIC ODP-208T Installation Speaker 100V black

Stock for approx. 12 wk(s)

269,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 11036960

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC ODP-208T Installation Speaker 100V black

Great sound - also runs with 100 volts
You want reliable and balanced sound for your bar, restaurant, shop or the conference area of your hotel? You need indoor and outdoor speakers? With the OPD series you get powerful installation speakers that meets all your requirements.

The speakers have a brilliant sound pattern and are available in a low ohm (16 ohms) and in a 100 V version. These two cover both small and large installations. A rotatable mounting bracket is included in the delivery. A swivel wall mount with matching colors is optionally available.

With their weatherproofed (IP65) plastic cabinet the ODP speakers are well prepared for outdoor use, indoor use is of course also possible.

Features

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS

2-way system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
Durable plastic cabinet with metal grille
Power selector switch with 16 ohms operating position
Screw plug terminal for easy handling
With mounting bracket
Black aluminum grille with acoustic foam
Suitable for outdoor use IP65
For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Package contents

1 x user manual, 1 x top, 1 x mounting bracket, 6 x screw, 1 x safety eyelet, 1 x lid, 2 x washer, 1 x screwing, 1 x screw plug-in terminal

Technical specifications

IP classification:	IP65
Power:	Program: 300W Rated: 150W RMS
Frequency range:	60 - 18000 Hz
Sensitivity:	94 dB (1W/1m)
Max. SPL:	116 dB
Dispersion angle:	90° x 50°
Impedance:	16 ohms; public address systems 100V
Attachment system:	Mounting bracket
Power tapping:	37,5W; 75W; 150W RMS via selector switch switchable
Connections:	Input: speaker via screw plug-in terminal
Crossover frequency:	2300 Hz
Speaker:	1 x woofer 8" Basket material: steel Voice coil lows 2" 1 x dome tweeter 1" Voice coil calotte tweeter 1"
Type of speaker:	Compact cabinet speaker; on ceiling/on wall speaker
Color:	Black
Dimensions:	Width: 24,1 cm Depth: 28,5 cm Height: 45 cm
Weight:	10,60 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397629781	11,75 kg	36cm x 30cm x 51cm
1	4026397722994	11,75 kg	35cm x 29cm x 50cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

tweeter 1" 16Ohm 20W ODP-206/8

Woofer 8" 16Ohm 150W ODP-208

crossover ODP-208

More 3 spare parts
