Class D stereo PA amplifier with SMPS, 2 x 1750 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)
PSSO DDA-3500 Amplifier

Name: PSSO DDA-3500 Amplifier
Brand: PSSO
SKU: 10451687
Price: 599.00 EUR
Availability: InStock

Class D stereo PA amplifier with SMPS, 2 x 1750 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)-MainBild

Class D stereo PA amplifier with SMPS, 2 x 1750 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)-Bild-1

2 U

Class D stereo PA amplifier with SMPS, 2 x 1750 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)

PSSO DDA-3500 Amplifier

Stock for approx. 12 wk(s)

599,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 10451687

Print product

Product badge

Here you find the manual and downloads for
PSSO DDA-3500 Amplifier

DDA-3500 amplifier

Reliable and robust amplifier

Are you looking for an amplifier for the club or the tour of your band? With the DDA-3500 from PSSO, you get a professional and reliable workhorse for your event.

Professional equipment

Use the stereo PA amplifier in 3 different ways: In stereo, parallel or bridge mode. For each channel, you have an LED VU meter and LEDs for activated protection circuit (Protect), overload (Clip) and signal. Thus you always maintain an optimal overview during operation. The built-in limiter and loudspeaker switch-on delay ensure the safety of your audio system. 2 temperature-controlled fans and a protective circuit protect against heat problems and round off the equipment package.

Robust but lightweight

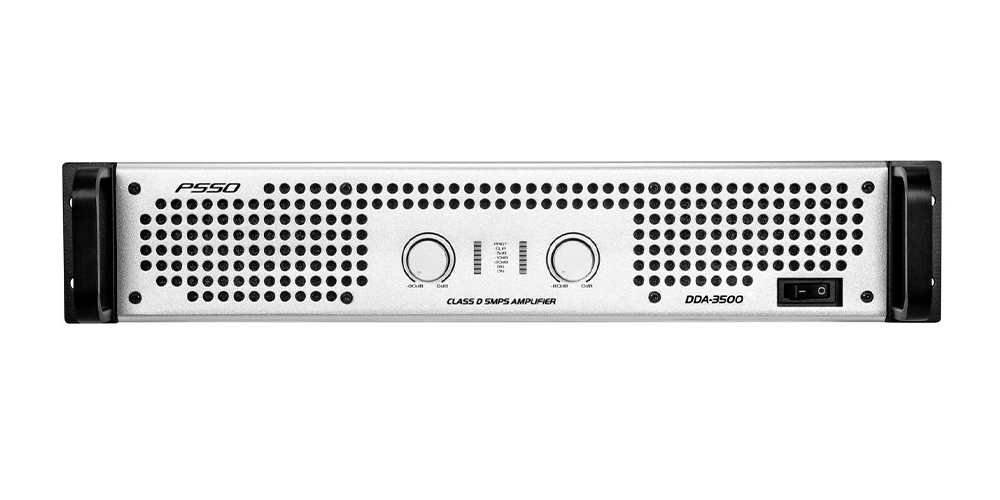

With its robust steel housing and aluminum front panel, the DDA-3500 is absolutely road-proof. Nevertheless, thanks to Class D technology, it is lightweight and requires only 2 height units in your rack.

Features

Class D stereo PA amplifier with SMPS, 2 x 1750 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
2 calibrated level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
(19") 48.3 cm rack installation 2 U
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Package contents

1 x user manual, 1 x amplifier, 1 x power cord

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	300 W 1/8 power
Output power:	2 x 1750 W RMS (4 ohms); 2 x 1000 W RMS (8 ohms); 1 x 3500 W RMS bridged (8 ohms)
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0,15 % at 1 kHz
Cooling:	2 x temperature-controlled fan , air flow from front to rear
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Gain:	41,2 dB
Circuitry:	Class D
Slew rate:	>10 V/µs
Damping factor:	>500
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), limiter selector, Input sensitivity switch
Controls:	Softstart; overheat; overload; short-circuit; limiter; VHF; DC voltage; progressive volume
Status LED:	Level meter, signal, clip, protect

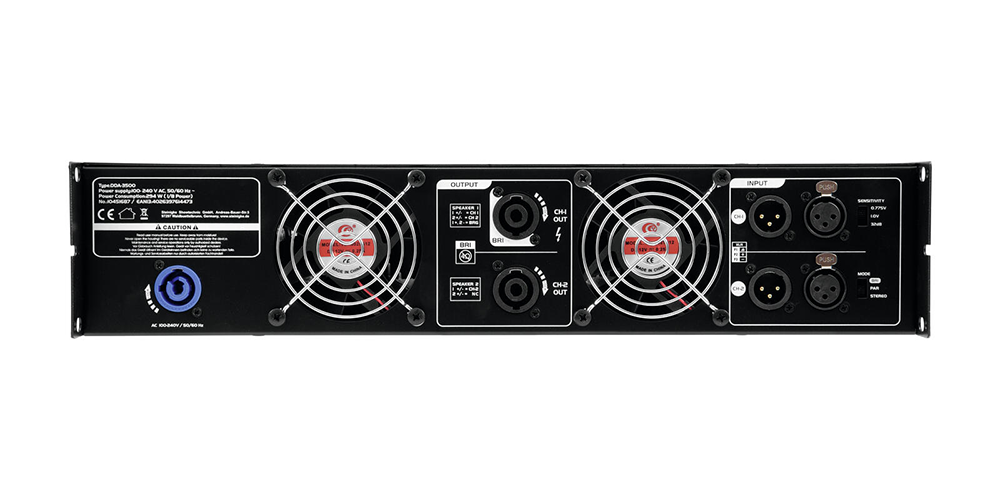

Connections:	Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,81 V , switchable; 32 dB; 37 dB; 39,3 dB , switchable
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 30,7 cm Height: 8,9 cm
Weight:	6,70 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397614473	8,00 kg	55cm x 42cm x 18cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

PCB (Display) DDA-1700 (Voice Series DISPLAY PCB)

PCB (Output) DDA-3500 ()

Pcb (Amplifier) DDA-3500 ()

More 5 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
