Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30.00 W
Dimensions:	Width: 48.3 cm Depth: 22.3 cm Height: 4.45 cm
Weight:	3.6 kg
Inputs:	2, active, balanced
Gain range:	±15 dB
Input impedance:	10 kohms
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Outputs:	6, active, balanced with automatic correction for unbalanced loading
Output impedance:	<50 mohms (electronically balanced)
Output gain range:	±21 dB
Maximum output level:	+20 dBu
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Distorsion:	0,005 %, 20-20000 Hz
S/N-ratio:	112 dB (22-22000 Hz)
Channel separation:	80 dB (30-20000 Hz)
Filter:
Slopes:	6, 12, 18, 24 or 48 dB/Oktave
Type:	Bessel, Butterworth or Linkwitz-Riley
Crossover frequency:	15-20000 Hz
Delay:	0~635.417 ms
Dimensions (WxHxD):	482 x 44 x 223 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397177770	3,80 kg	51,5cm x 33cm x 8cm
2	4026397179323	7,95 kg	54cm x 35cm x 18cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language

Software

Name	Version	Language
10356350-SW-5983-1.3000-en.exe (1 MB)	1.3000	en
10356350-SW-33465-2.2000-en.exe (1 MB)	2.2000	en

All images

Name	Version	Language
10356350-Images-.zip

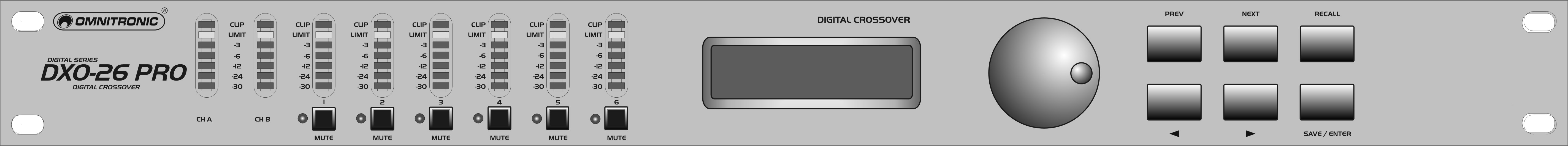

OMNITRONIC DXO-26 PRO Digital controller

The article is no longer in our assortment.

Check out the alternatives:

No. 10356350

Digital stereo active crossover incl. PC software

2 analog inputs and 6 analog outputs (servo-balanced XLR connectors)
Active frequency filter with slopes up to 48 dB/octave split up the audio signal into different frequency bands
MIDI interface
Rs232 interface, compatible to PCs
Incl. software editor for remote control via PC: store, transfer, and manage your presets
60 user programs can be memorized internally or via PC software
Both inputs or a sum of both can be split up into a maximum of 6 frequency bands
Up to 38 frequency bands for fine-tuning the frequency range adjustable
Up to 635.417 ms total delay for the inputs and outputs adustable
Delay displayed in milliseconds, meters, feet and frame/second
Output limiter with ajustable limits and automatic attack and release settings as overload protection for your amplifying system
Lock function for protecting the program settings
Phase Invert switch per output
Switch-mode power supply
Rack installation, 1 U
