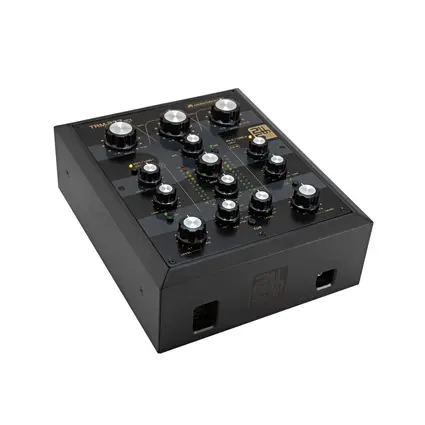

OMNITRONIC TRM-202MK3 2-Channel Rotary Mixer (25th Omnitronic anniversary edition)

2-channel rotary mixer with 3-band frequency isolator for DJs-MainBild

2-channel rotary mixer with 3-band frequency isolator for DJs-Bild-1

2-channel rotary mixer with 3-band frequency isolator for DJs

OMNITRONIC TRM-202MK3 2-Channel Rotary Mixer (25th Omnitronic anniversary edition)

The article is no longer in our assortment.

Check out the alternatives:

OMNITRONIC TRM-202MK3 2-channel Rotary Mixer

alternative is the successor

available in approx. 9 wk(s)

349,00 €

Item no. 10355923

Print product

Product badge

Features

2-channel rotary mixer with 3-band frequency isolator for DJs

Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
Dedicated boost and kill cut
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
DJ microphone input with separate level control
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
12-digit stereo LED level meter and master level control
Booth output with separate level control
Inputs: 4 x line and 2 x phono (RCA L/R), DJ microphone (XLR) and headphones (jack)
Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
Matching woodkits available at www.omniwoodkit.com
Desktop console housing

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	20 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz microphone 20 - 20000 Hz line 40 - 18000 Hz phono
S/N ratio:	>77 dB phono >80 dB microphone >85 dB line
THD:	Line <0,03 % at 1 kHz Phono <0,1 % at 1 kHz
Gain:	Microphone 44 dB Line 20 dB Phono 60 dB to +75 dB
Isolators:	Master Gain:- ∞ bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth
Control elements:	Power switch, source selector
Status LED:	Power, master level meter, chanal source, CUE, microphone
Connections:	Input: line via 2 x stereo RCA Input: line/phono via 2 x stereo RCA Input: microphone via 1 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA
Channels:	Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, phono gain rotary, source selector, CUE switch Microphon chanal: 1 x mono via XLR, channel control via rotary dial Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial Master output: 1 x stereo via XLR or RCA, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial
Max. level:	Output: +22 dBu
Housing design:	Desktop console housing
Dimensions:	Width: 19 cm Depth: 25 cm Height: 10,7 cm
Weight:	2,68 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397691634	3,18 kg	14cm x 25cm x 32cm

Support

Spare parts

IC NJM 4556 D Dual Amplifier DIP-8

Capacitor 10µF 50V

Button (potentiometer) ISO-23D DJ-Isolator black inside silver Ø=26,5mm medium

More 25 spare parts
