Technical specifications
Power supply:
230 V AC, 50 Hz
Power consumption:
10.00 W
Frequency range:
20 - 20000 Hz
Dimensions:
Width: 23.5 cm
Depth: 19 cm
Height: 9 cm
Weight:
4.15 kg
via supplied power unit
Inputs:
LINE:
4 x RCA L/R
PHONO:
2 x RCA L/R
DJ microphone:
XLR
Tone control:
-~ to +6 dB (highs, lows)
Outputs:
MASTER:
XLR/RCA L/R
BOOTH:
XLR/RCA L/R
REC:
RCA L/R
Headphones output:
6.3 mm jack (min. 32 ohms)
Lows:
20 Hz to 300 Hz
Mids:
300 Hz to 4 kHz
Highs:
4 kHz to 20 kHz
Dimensions (W x D x H):
235 x 190 x 90 mm
Packaging units
PU
EAN
Weight
Dimensions
1
4026397483239
4,80 kg
40cm x 29cm x 17cm
6
4026397532180
29,75 kg
51cm x 48,5cm x 44cm
Spare parts
Poti W503 2x 50KOhm (frequencies) center (Delta)
Capacitor 10µF 50V
Switch (Phono/Line Input) PM-404 12-pin
IC NJM 4556 D Dual Amplifier DIP-8
Electrolytic capacitor 47µF 25V 105°C
Optokoppler 817C (TRM Serie)
Downloads
Spezifications
Name
Version
Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
All images
Name
Version
Language
10355920-Images-.zip
...
Audio
/
Audio mixers
/
Tabletop mixers

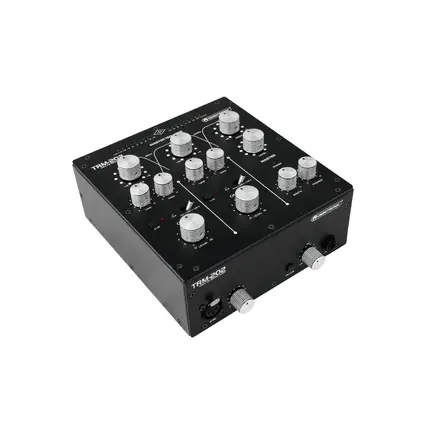

OMNITRONIC TRM-202 2 Channel rotary mixer
Double tap or pinch to zoom
Hover to zoom
Bildergalerie öffnen
Detail images (5 overall)
OMNITRONIC TRM-202 2 Channel rotary mixer
The article is no longer in our assortment.
Check out the alternatives:
OMNITRONIC TRM-202MK3 2-channel Rotary Mixer
alternative is the successor
No. 10355922
Stock for approx. 12 wk(s)
299,00
€
No. 10355920
2-channel rotary mixer with 3-band frequency isolator for DJs
Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel
Dedicated boost and kill cut
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
DJ microphone input with separate level control
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
10-digit stereo LED level meter and master level control
Booth output with separate level control
Inputs: 4 x line and 2 x phono (RCA L/R), DJ microphone (XLR) and headphones (jack)
Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
Operation via supplied power unit
