PRO audio mixer with British-style EQ, compressor, effect unit and USB interface
OMNITRONIC LMC-1422FX USB Mixing Console

Name: OMNITRONIC LMC-1422FX USB Mixing Console
Brand: OMNITRONIC
SKU: 10040280
Price: 299.00 EUR
Availability: InStock

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface-MainBild

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface-Bild-1

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

OMNITRONIC LMC-1422FX USB Mixing Console

Stock for approx. 12 wk(s)

299,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 10040280

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC LMC-1422FX USB Mixing Console

Professional live mixing consoles with British EQ, FX unit and USB interface
Effortlessly achieve the right sound with the LMC series by OMNITRONIC! The incredibly user-friendly mixing consoles provide a warm, natural sound with outstanding audio parameters, an extensive set of features and maximum reliability - ideal for professional studio recordings, live performances, and fixed PA installations. Especially the 2022FX has several useful features that are unparalleled in this price range: feedback detection system, voice canceller, and 3D stereo surround effect.

All mono channels feature extremely low-noise, top-notch microphone preamps that offer an extraordinary 130 dB of dynamic range, and a bandwidth ranging from below 10 Hz to over 200 kHz for crystal-clear signal reproduction. The incredibly warm and natural equalizers used for all channel strips are based on classic "British EQ" circuitry from mixing consoles of the '60s and '70s.

Additionally, your LMC series mixing console has a studio-grade compressor with easy one-knob functionality on each mono channel plus a 24-bit FX processor with 16 editable effects which can be added to individual channels, busses or the main mix. Utilizing the built-in USB audio interface with up to 48 kHz sample rate, you can link your Windows or Mac computer and record your sessions instantly.

Features

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

4 mono input channels with gain control, 3-way EQ, low cut and pan control
2 stereo input channels with 3-way EQ, level selection and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
2 AUX sends per channel: AUX 1 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
2 stereo AUX returns with flexible routing
Clip LEDs and routing switches for mute and solo/PFL on all channels
Balanced main mix outputs with gold-plated XLR connectors
Control room/phones outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 8-digit LED level meter
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Monochrome 2 digit 7-segment LED display
The device can be connected via USB to the PC
(19") 48.3 cm rack installation possible
For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Package contents

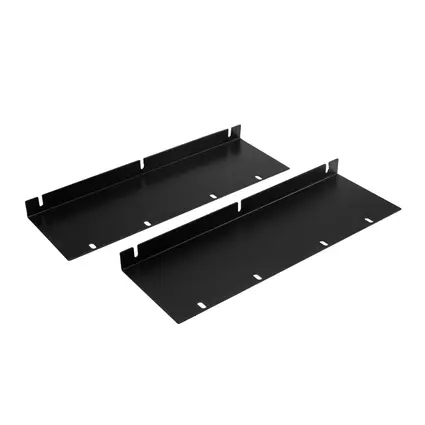

1 x mixer, 1 x user manual, 1 x power cord, 1 x USB cable, 2 x angle

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	<0,05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Phantom power:	Or 48 V DC
Impedance:	Input: microphone 2,6 kOhm , bal. Input: line 10 kOhm , bal. Input: 2-Track 10 kOhm Input: AUX returns 10 kOhm , bal.
Gain:	Input: variable
Housing color:	Black
Crosstalk:	>89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, Mute, gain reduction, phantom power; power, clip, level meter, phantom power, Mute
Connections:	Input: microphone via 4 x 3-pin XLR Input: line via 8 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: sub groups via 2 x 6.3 mm jack socket (mono) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 4 x 6.3-mm-jack (bal.) Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input chanel: 4 x mono via XLR or jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2,5kHz/12kHz, 2 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, routing sub group bus switch, panoramacontol, mute control, solo switch Input chanel: 2 x stereo via jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2,5kHz/12kHz, 2 Send/AUX, pre-post switch, Input sensitivity switch, routing sub group bus switch, balancecontrol, mute control, solo switch, low cut switch Master output: 1 x stereo, channel control via 60mm fader
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: control room +22 dBu, unbal. Output: AUX sends +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: sub groups +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB
Housing design:	(19") 48.3 cm rack installation possible
Dimensions:	Width: 48,3 cm Depth: 40 cm Height: 12,7 cm
Weight:	4,70 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397565515	5,50 kg	44cm x 33cm x 20cm
2	4026397565522	11,30 kg	45cm x 41cm x 35cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Pcb (effect) LMC Serie (DSP-01)

Pcb (Power supply 5-48V LMC-Serie (BLD-088)

Poti B503 50KOhm LMC Serie 3-Pin (function)

More 23 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
