Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	28.00 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>74 dB
USB port:	USB 2.0, type B
Dimensions:	Width: 35.5 cm Depth: 34.5 cm Height: 11.5 cm
Weight:	2.35 kg
Inputs/sensitivity:
Mic, mono	0.5 mV, XLR bal.
Line In, mono	0.5 mV, 6.3 mm jack bal.
Line In, stereo	10 mV, 6.3 mm jack L/R
Tape In	100 mV, RCA L/R
Outputs/level:
Main Out:	650 mV, 6.3 mm jack L/R unbal.
Control Room	2 V max. 6.3 mm jack L/R unbal.
Aux Send:	2 V, 6.3 mm jack unbal.
Tape Out	2 V, RCA L/R
Headphones	2 V, 6.3 mm jack unbal.
Distortion:	0.05 %
Tone control/channel:
Treble:	±15 dB at 12 kHz
Middle:	±15 dB at 2.5 kHz
Bass:	±15 dB at 80 Hz
Phantom power:	+48 V

Packaging units

PU	EAN	Weight	Dimensions
1	4026397513899	2,58 kg	37cm x 30cm x 8cm
10	4026397534139	26,50 kg	63cm x 40cm x 43cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Press report

Name	Version	Language
10040272-Press-105128-TestBeat72015MRS5021002pdf-de_en.pdf (194 KB)	0.0000	de_en

All images

Name	Version	Language
10040272-Images-.zip

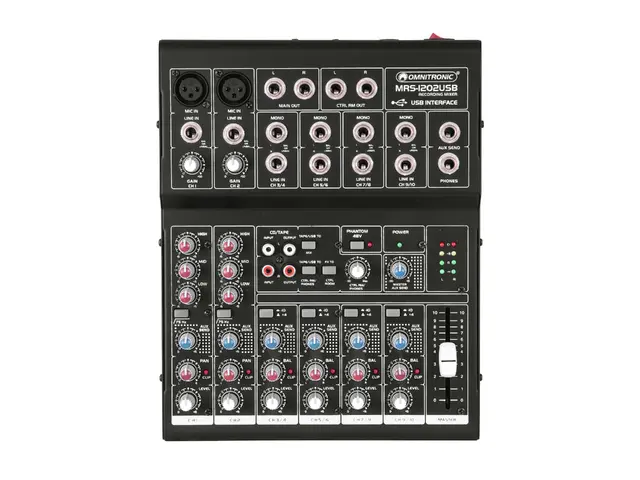

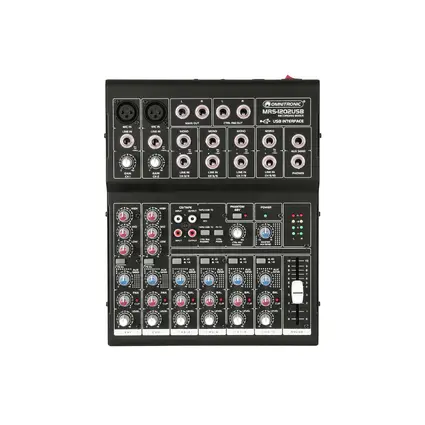

OMNITRONIC MRS-1202USB Recording Mixer

The article is no longer in our assortment.

No. 10040272

Compact audio mixer with 12 inputs and USB interface

Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Full duplex USB port: simultaneous recording and playback possible
2 mono input channels with gain control, 3-way EQ, Low Cut and pan control
4 stereo input channels with level switch and balance control
Adjustable stereo aux send output
Tape input and output
Separate main mix and control room outputs
Headphones output
+48 V phantom power, can be switched centrally
Precise 4-digit stereo LED level display
Operation via supplied power unit
Rugged, compact metal housing
