6-channel microphone/line mixer

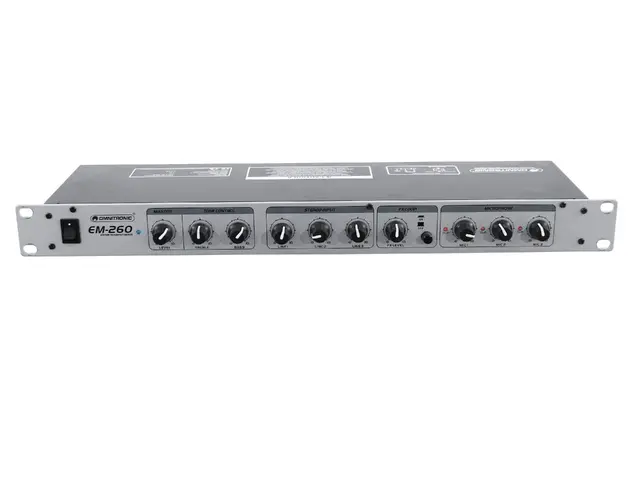

OMNITRONIC EM-260 Entertainment Mixer

Name: OMNITRONIC EM-260 Entertainment Mixer
Brand: OMNITRONIC
SKU: 10007075
Price: 199.00 EUR
Availability: InStock

6-channel microphone/line mixer-MainBild

1 U

6-channel microphone/line mixer

OMNITRONIC EM-260 Entertainment Mixer

Stock for approx. 12 wk(s)

199,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 10007075

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC EM-260 Entertainment Mixer

OMNITRONIC Entertainment Mixer Series
The modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.
The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.
The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.
The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

Features

6-channel microphone/line mixer

6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
Ideal e.g. for karaoke when microphones need to mixed with CDs
3 mono input channels mic/line (XLR, bal.), switchable
3 stereo line input channels (RCA)
Clip LED for each microphone channel
Each microphone input with optional 12 V phantom power
FX send/return with FX level control
Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
Stereo record output (RCA)
(19") 48.3 cm rack installation 1 U
For application areas such as: Installation; restaurants, bars and hotels; Clubs/dancing school

Package contents

1 x device, 1 x power cord, 1 x user manual

Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	5 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
Phantom power:	Or 12 V DC
Housing color:	Silver
Control elements:	Phantom power switch, power switch, FX send/returne control
Status LED:	Power, clip
Connections:	Input: mic/line via 3 x 3-pin XLR Input: line via 3 x stereo RCA Input: FX via 2 x 6.3 mm jack socket (mono) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 6.3 mm jack socket (mono) mounting version Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input chanel: 3 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ 100Hz/10kHz Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via rotary dial, 1 Send/AUX, FX routing switch Master output: 1 x stereo via jack, channel control via rotary dial
Max. level:	Input: microphone +14 dB Input: line +24 dB
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 12,3 cm Height: 4,45 cm
Weight:	2,20 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397179118	2,60 kg	53cm x 26,5cm x 9cm
4	4026397179699	11,55 kg	55cm x 55cm x 20,5cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Transformer Sec.: 19-0-19V Pri.: 230V (EI-41*26) GEQ-215
