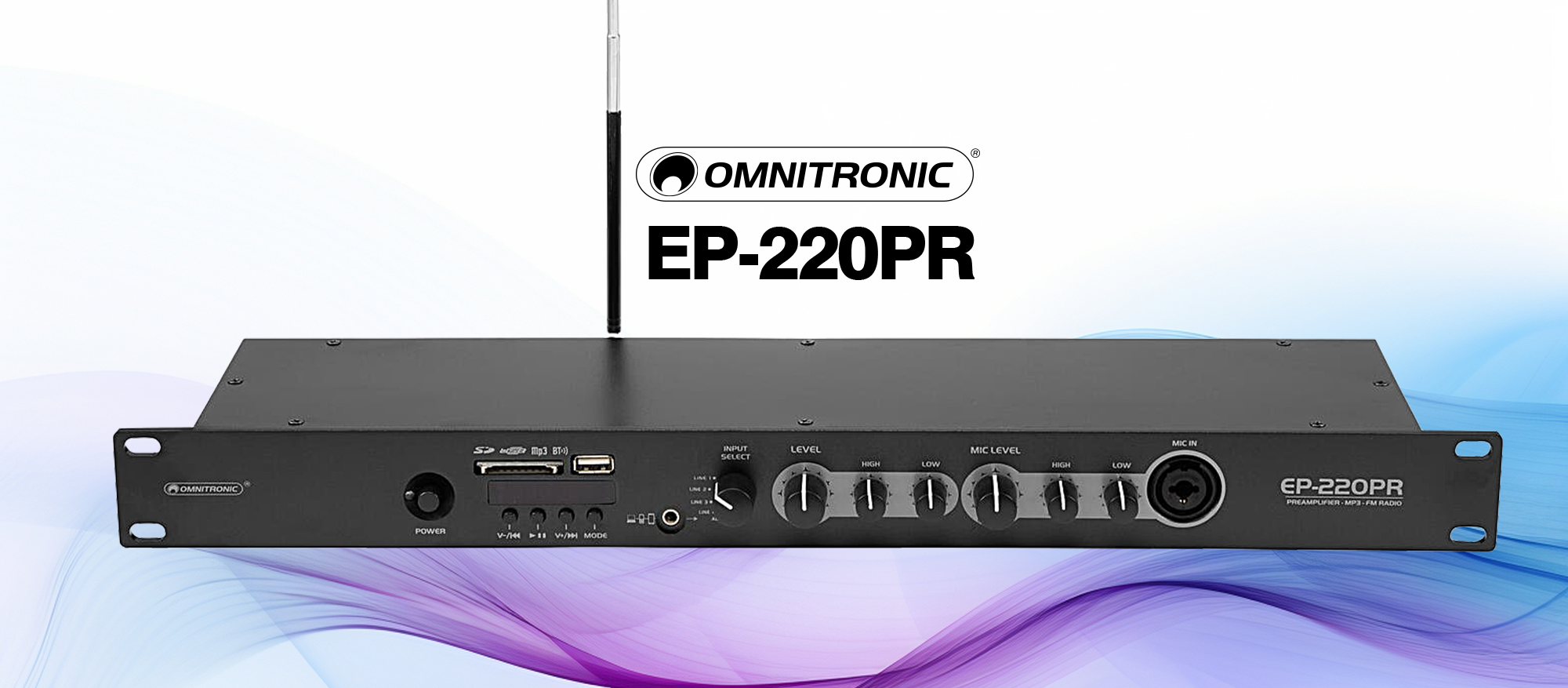

Universal 19" preamplifier with audio player, Bluetooth and FM radio
OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio

Name: OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio
Brand: OMNITRONIC
SKU: 10007074
Price: 129.00 EUR
Availability: InStock

Universal 19" preamplifier with audio player, Bluetooth and FM radio-MainBild

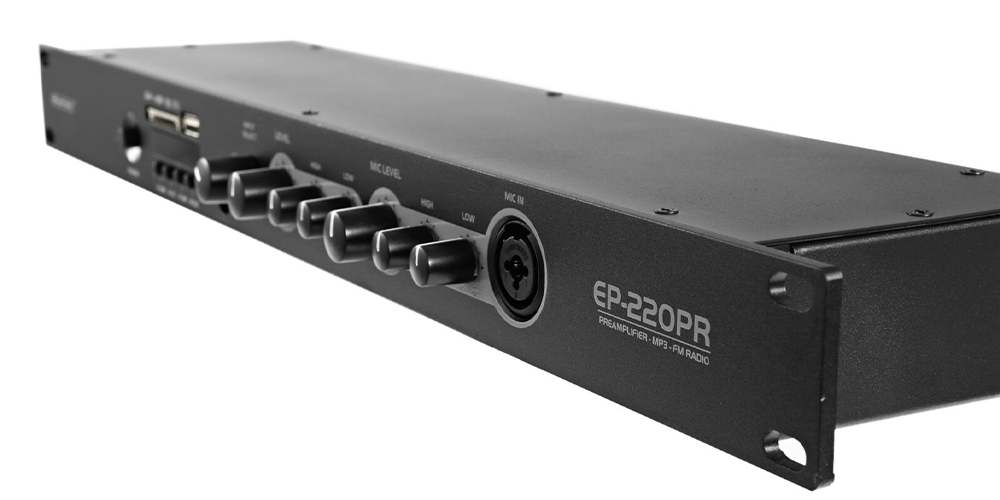

Universal 19" preamplifier with audio player, Bluetooth and FM radio-Bild-1

1 U

Universal 19" preamplifier with audio player, Bluetooth and FM radio

OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio

Stock for approx. 12 wk(s)

129,00 €

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 10007074

Print product

Product badge

Here you find the manual and downloads for
OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio

Preamplifier with MP3 Player and FM Radio

Sound control made easy

You want to play music and control the sound in your restaurant, gym or shop in a simple way? Turn the Omnitronic EP-220PR preamplifier into your easy-to-use control centre!

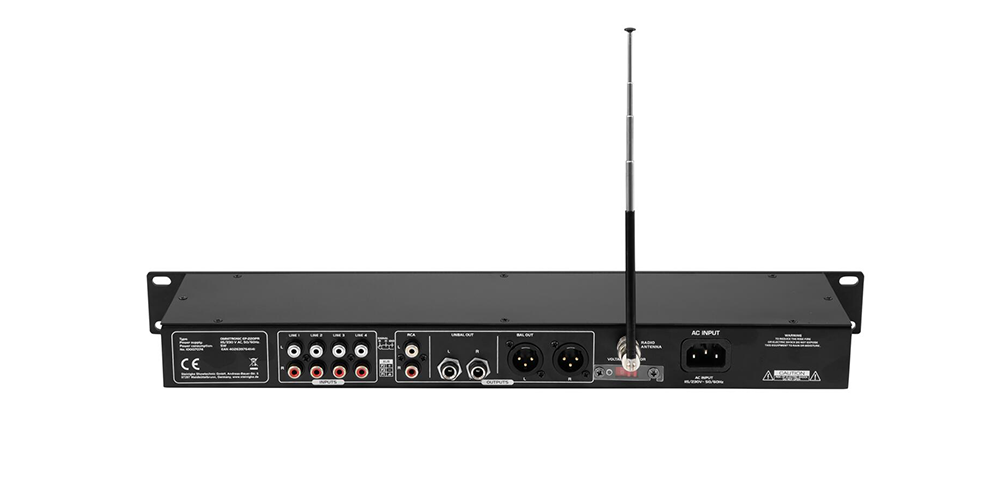

OMNITRONIC EP-220PR Front view and connections

Playing music

Transfer music wirelessly from your tablet, mobile phone or PC. Download MP3s from an SD card or USB stick and play them using the built-in audio player. Or simply use the 5 switchable line inputs (Cinch and 3mm jack) to play external sources. The built-in tuner allows you to receive radio stations on the FM wave.

Easy to use

You can easily control the volume, bass, and treble of the music using the controls on the front of the unit. A microphone input (XLR) is available for announcements or speeches. You can control the volume, bass, and treble of the microphone signal using the controls on the front panel.
Thanks to its sleek design, side-mounted rack rails and light weight, the EP-220PR preamp can be easily integrated into your location.

Features

Universal 19" preamplifier with audio player, Bluetooth and FM radio

Built-in audio player with Bluetooth receiver
SD card slot and USB port
5 stereo line inputs
4 RCA L/R connectors on the back panel and 3.5 mm connector on the front panel
Audio source selector
Controls for volume, bass and treble
1 microphone input with controls for volume, bass and treble on the front panel
3 stereo master outputs
(19") 48.3 cm rack installation 1 U
For application areas such as: Sports centres/gyms; Trade fair and shop fitting; restaurants, bars and hotels; installation

audio player

Bluetooth: operating range up to 10m
Control via Bluetooth
Monochrome 4 digit 7-segment LED display

Package contents

1 x amplifier, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x antenna

Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	5 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0,1 % at 1 kHz
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Housing color:	Black
Status LED:	Power
Connections:	Input: line via 4 x RCA (F) mounting version Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR Output: line via 1 x 6.3 mm jack socket (stereo) mounting version
Input channels:	5 x stereo via RCA or jack plug or player, channel control via rotary dial 1 x mono via XLR or jack, channel control via rotary dial
Equalizer:	Master: 1 x 2-band tone control stereo
Input sensitivity:	1 V
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 12,8 cm Height: 4,45 cm
Weight:	1,87 kg
Audio player
Control:	Bluetooth
Bluetooth device name:	BLUETOOTH
Audio player:	USB + SD + Bluetooth + FM radio
Range:	Bluetooth: range up to 10m
Carrier frequency:	2,4 GHz
Display type:	Monochrome 4 digit 7-segment LED display
Tuner frequency range:	FM 87-108 MHz
Music format:	WAV; MP3; WMA
Available storage media:	USB devices/SD cards max. 32GB (FAT 16/32)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397641141	2,26 kg	55cm x 18cm x 8cm
10	4026397641158	22,85 kg	39cm x 42cm x 57cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Resistor 4,7 Ohm 5W 14x18x5mm

Pcb (player) DJP-900P Class-D amplifier ()

Jack 3.5mm (AUX input) DJP-900P

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
