FUTURELIGHT Set FUTURELIGHT Wave + EU Case

2,5°

7 mm

FUTURELIGHT Set FUTURELIGHT Wave + EU Case

The article is no longer in our assortment.

Item no. 09000246

Print product

Product badge

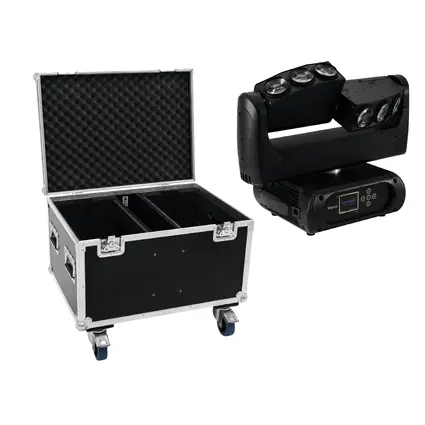

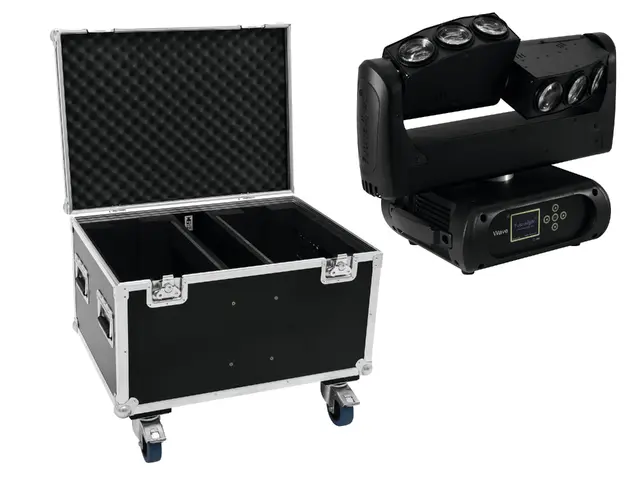

Set consisting of:

2 x FUTURELIGHT Wave LED Moving Bar

1 x ROADINGER Flightcase 2x Wave

Features

FUTURELIGHT Wave LED Moving Bar

PRO moving-head with two tiltable LED bars and six powerful, white beams

TILT movement for each LED bar separately and steplessly adjustable
Individual control of each LED
Perfect as beam effect into the audience
Narrow beam angle
Built-in programs
Shutter sequences
Electronic dimmer (0-100%)
Automatic position correction
Random strobe effect
Stand-alone, master/slave and DMX mode
Control panel with LC display for easy configuration
Built-in scene memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
6 powerful LEDs 20 W high-power cold white (CW)
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Fan effect
The device is cooled by temperature-controlled fan
Control via RDM; DMX; stand-alone; Sound to light via Microphone
Preprogrammed in LED PC-Control 512
With a beam angle of 2,5°

ROADINGER Flightcase 2x Wave

PRO flightcase for 2 x FUTURELIGHT Wave LED moving bar

With 2 Device compartments
With accessory compartment
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 castors with 2 locking brakes
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	41,30 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
FUTURELIGHT Wave LED Moving Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray), mounting version
Lamp type:	LED lamp
LED type:	6 x 20 W high-power cold white (CW)
Max. TILT movement:	240° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	540°, 630° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:	0 - 20 Hz
DMX channels:	14; 15; 17; 18
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	RDM; DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:	LED PC-Control 512
Beam angle:	2,5°
Beam angle (1/2 peak):	2,5°
Housing color:	Black
Dimensions:	Width: 46,8 cm Depth: 25 cm Height: 32,5 cm
Weight:	10,60 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x Wave
Maximum load:	100 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Inside dimensions:	68 cm x 49 cm x 38,5 cm
Device compartment:	16,5 cm x 41 cm x 39 cm
Accessory compartment:	10,5 cm x 49 cm x 38,5 cm
Dimensions:	Width: 72,5 cm Depth: 53,5 cm Height: 57,5 cm
Weight:	20,10 kg

Accessories

Loading accessories. Please wait...

Support

Spare parts

FUTURELIGHT OC-7 Omega Clamp

FUTURELIGHT ULB-2 USB Upload Box

Steppermotor 57HBT015N-25 °8

More 20 spare parts
