Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag
EUROLITE LED KLS-902 Next Compact Light Set

Name: EUROLITE LED KLS-902 Next Compact Light Set
Uploaded: 2022-01-01
Description: Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag-MainBild

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag-Bild-1

16°

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag

EUROLITE LED KLS-902 Next Compact Light Set

Stock for approx. 12 wk(s)

479,00 €

Save money: This article is available in a bundle.

Find a dealer

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 42109860

Print product

Product badge

Here you find the manual and downloads for
EUROLITE LED KLS-902 Next Compact Light Set

LED KLS-902 Next Compact Light Set

The next generation of the KLS

With the KLS-902 Next, Eurolite presents the next stage of the compact light evolution: with bright spots and RGB+WW color mixing.

EUROLITE LED KLS-902 Next Compact Light Set front-view

Proven concept, modern implementation

What remains the same as with the previous KLS models is the proven combination of 4 spots on one bar. For the LEDs, the most modern versions are now used: 20 units with 7 watts each and a high effectiveness ensure a decent light output.

Silent and flexible

But also the hardware has changed a lot: For example, the brackets of the individual spots are now even more massive and the power cable is also much longer than before. The bar can now also be mounted flying (for example on a crossbar). The connectors for this can be attached in seconds with quick release fasteners. Despite the high light output, the system does not need a fan, so it is absolutely noiseless and does not suck in dust. Further effects can be screwed onto the bar, for the power connection of the bar there are two cold appliance sockets and a Powercon output available.

EUROLITE LED KLS-902 Next Compact Light Set connections

Control unit

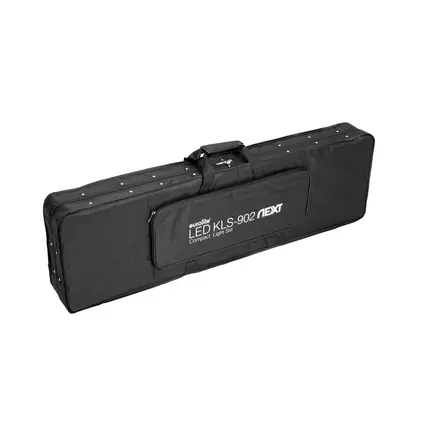

Those who want to control their system via radio DMX will be pleased with the new USB socket. A Quick DMX receiver can be easily connected here. Those who want to work without external control will be pleased with the many well thought-out stand-alone programs. In addition, a static color can now be set separately for each spot for use without a controller. The included carrying bag is particularly robust and makes the system easy to transport.

EUROLITE LED KLS-902 Next Compact Light Set transport

Save money: This article is available in a bundle.

Sets are loaded. Please wait...

Features

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag

5 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
spots controlled separately
Crossbar with integrated DMX control unit and TV spigot for tripod installation
With a beam angle of 16°
20 integrated show programs
Color blend stepless; Dimmer electronic; program selection
Mounting points and power outlets for additional fixtures
Control via DMX; stand-alone; sound to light via microphone; IR remote control; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
For application areas such as: Mobile use; stage; mobile djs / entertainer; small rental; rental
Preprogrammed in EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3
Mains input and output for power linking up to 8 units
Very quiet working noise
Application possibility: Suspended; on stand

Package contents

1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x omega bracket, 1 x declaration of conformity, 4 x knurled screw, 1 x bag

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:	3 m
Power output:	2 x IEC connector (F) mounting version 1 x P-Con (gray), mounting version
Device fuse:	5 x 20 mm, T 2 A fuse replaceable
Power output fuse per channel:	5 x 20 mm, T 5 A fuse replaceable
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Lamp type:	LED lamp
LED type:	5 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
DMX channels:	3; 4; 6; 8; 16; 20; 18
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; sound to light via microphone; IR remote control; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3
Beam angle:	16°
Beam angle (1/2 peak):	16°
Beam angle (1/10 peak):	32°
Housing color:	Black
Attachment system:	TV spigot Ø 28mm Omega bracket
Dimensions:	Width: 1,08 m Depth: 6 cm Height: 28 cm
Weight:	9,80 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397673166	10,80 kg	113cm x 38cm x 18cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

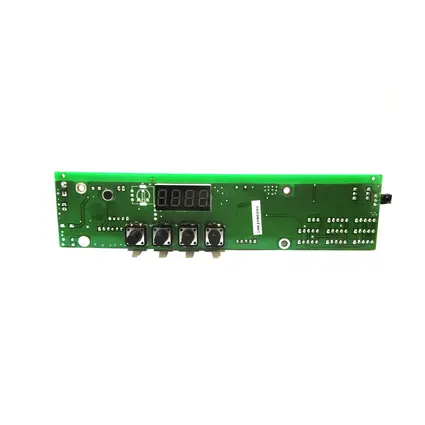

PCB (DMX) LED KLS-3002 (CRT AS WL SS)

LED QCL 7W BRWWG LED KLS-902 (TX-BRSG2A120-101)

Pcb (LED) LED KLS-902 Next (CRT_LED_POWER PARTY BAR WL-44 V1.0)

More 7 spare parts

Downloads

Loading the documents. Please wait...

Manufacturer information

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support

Safety instructions and warnings

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
